Cadillac
>>
1986
>>
Cimarron L4-121 2.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Less Twilight Sentinel
Less Twilight Sentinel

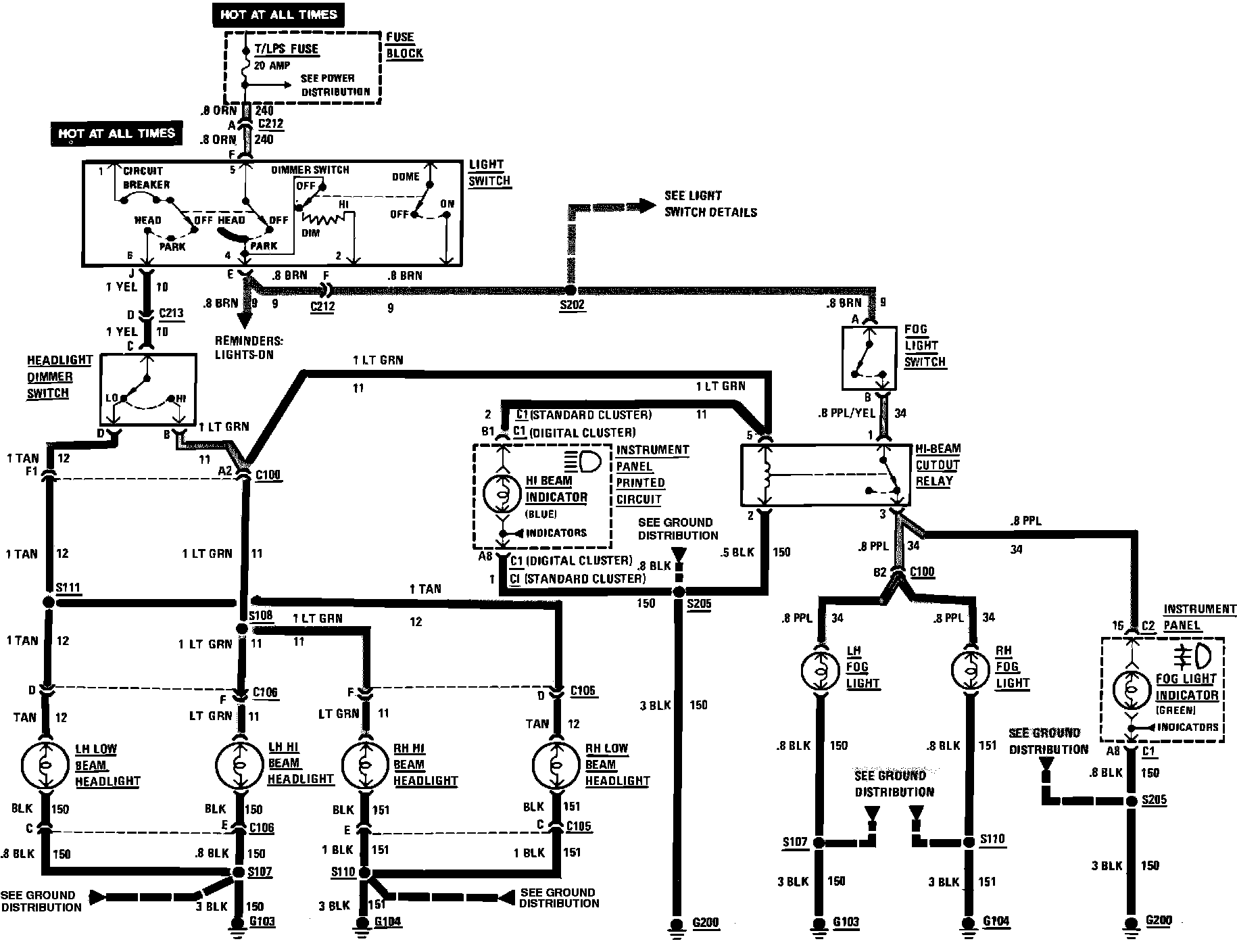

Fog Lamps & Headlamps Wiring Circuit (Less Twilight Sentinel):
