Home >> Cadillac >> 1986 >> Cimarron L4-121 2.0L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Front Lighting >> Part 2 of 2

Part 2 of 2

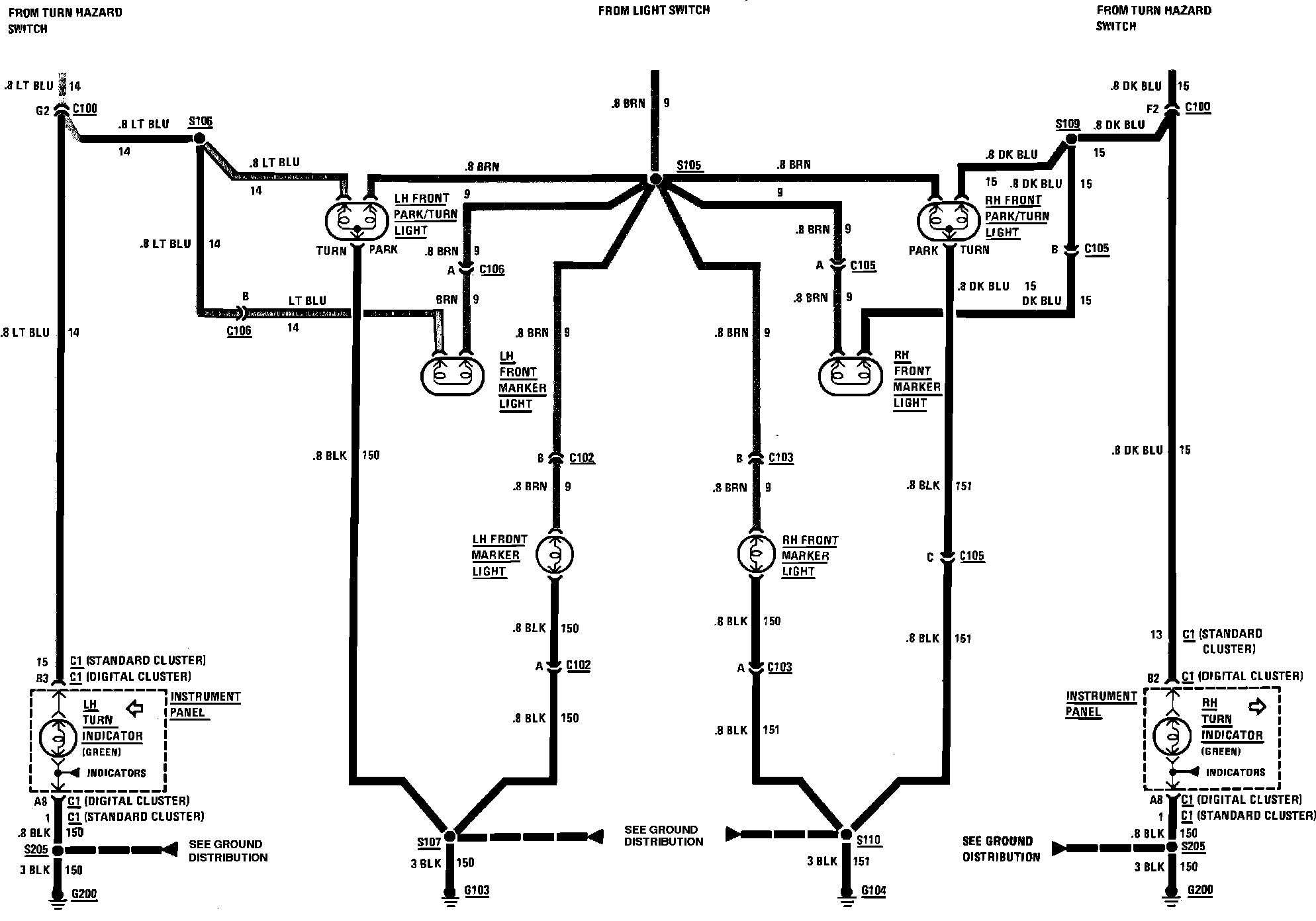

Front Lighting Wiring Circuit (Part 2 of 2):
