Cadillac
>>
1986
>>
Cimarron L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
(Part 1 of 2)
(Part 1 of 2)

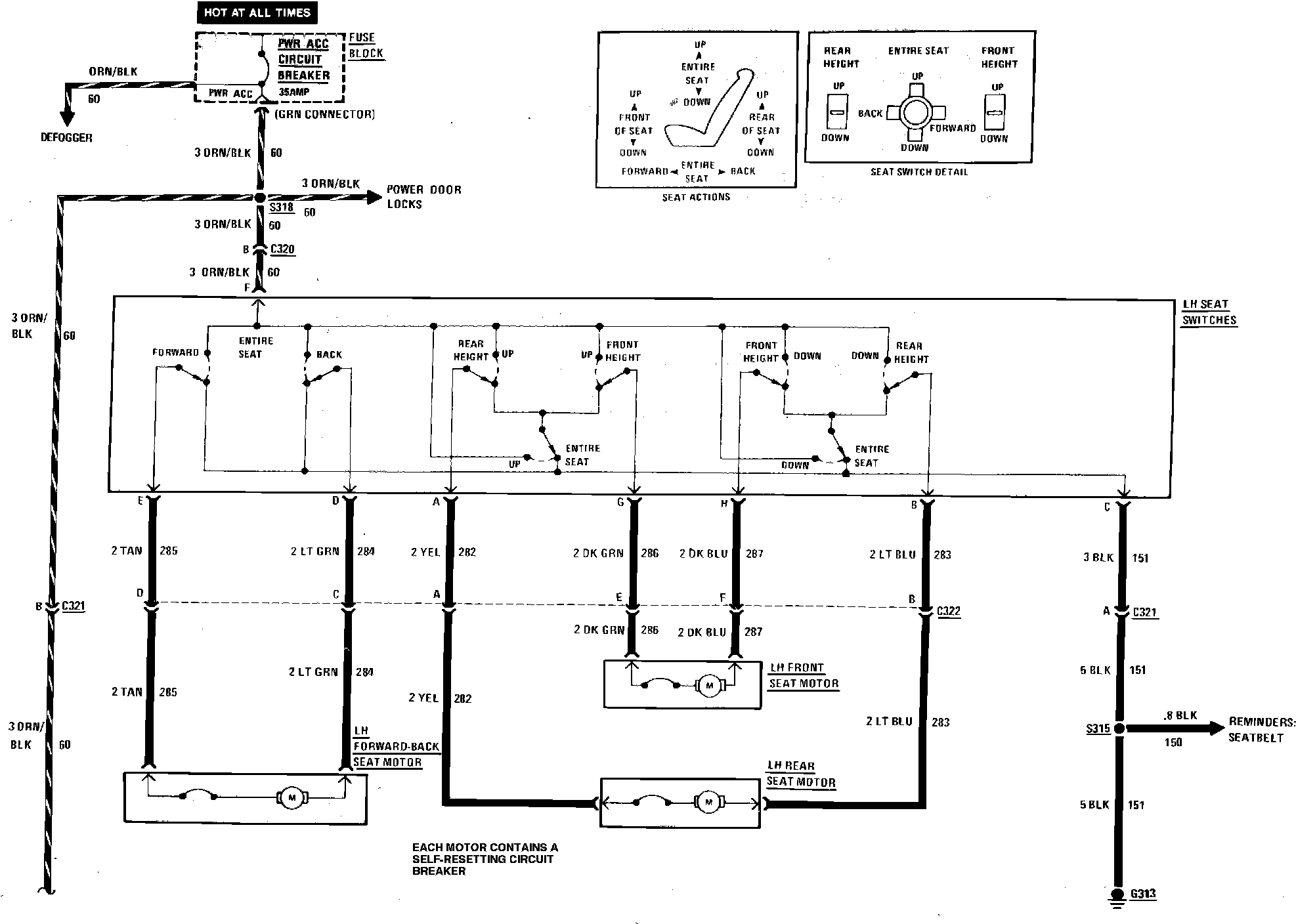

Power Seat Wiring Circuit:
