Cadillac
>>
1985
>>
DeVille V8-252 4.1L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
>>
Electronic Control Module (ECM)
Electronic Control Module (ECM)

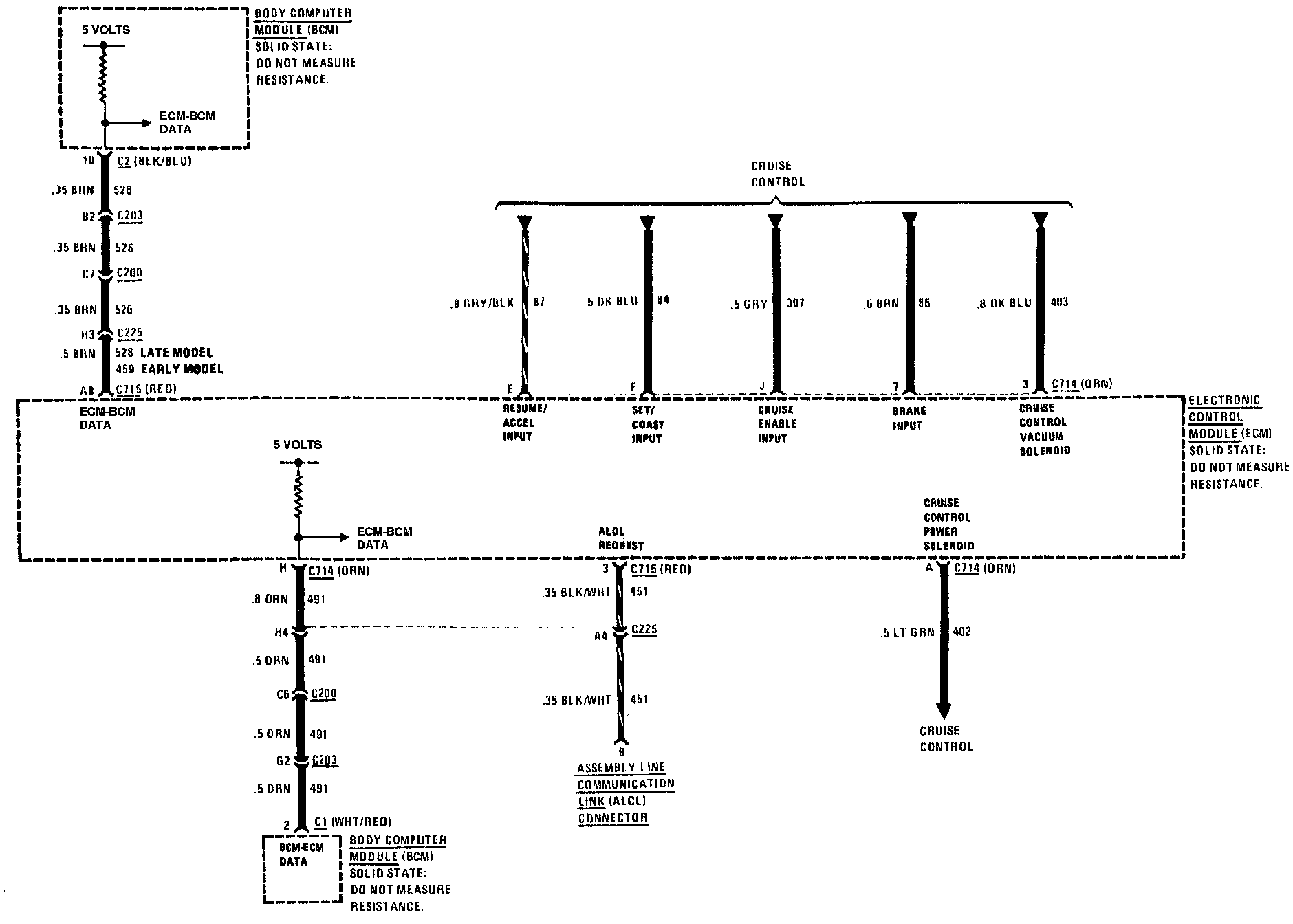

Digital Fuel Injection: Electronic Control Module:
