Cadillac
>>
1985
>>
DeVille V8-252 4.1L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic Climate Control
>>
Less Blower & Compressor Control
Less Blower & Compressor Control

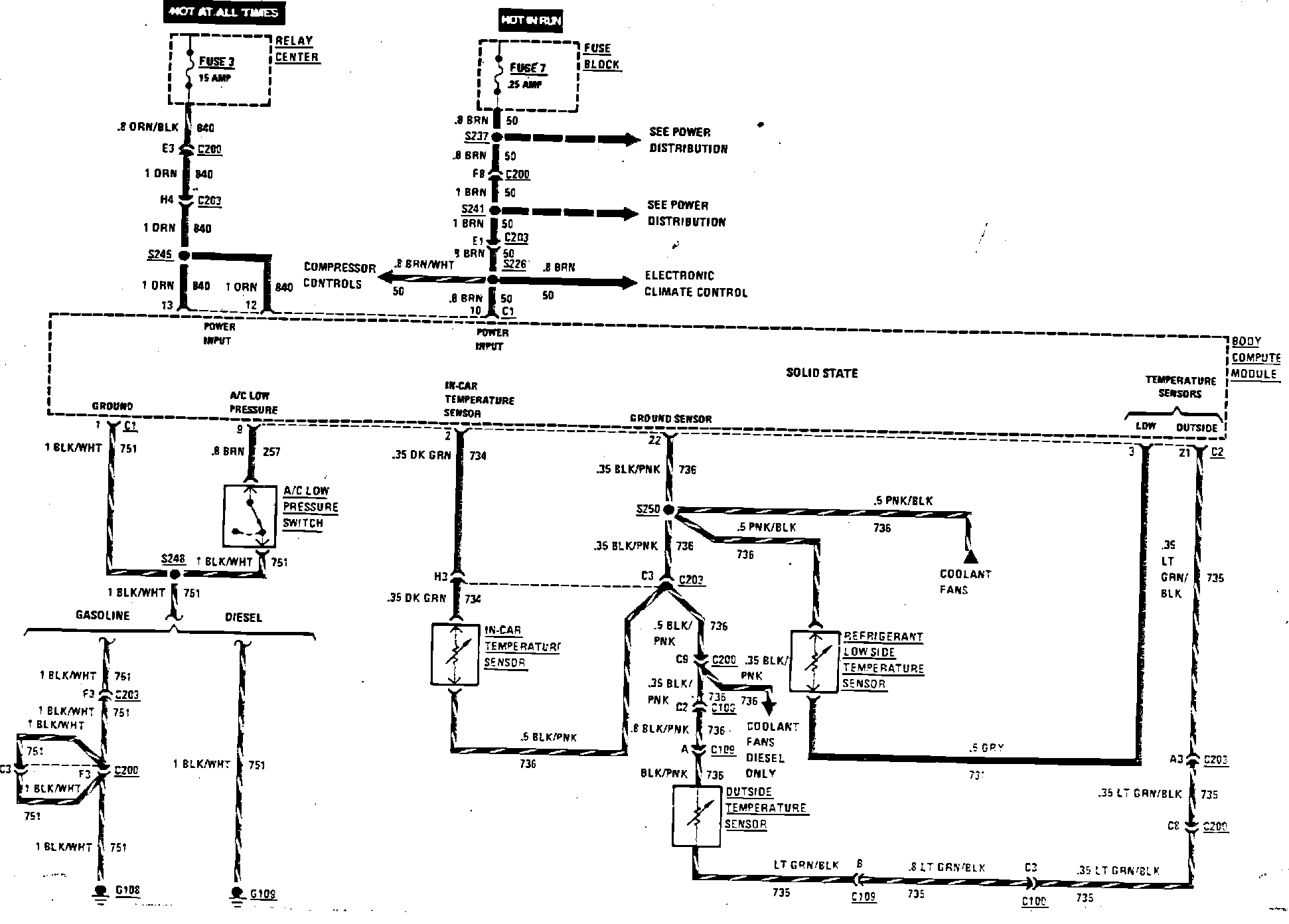

Electronic Climate Control Wiring Circuit:

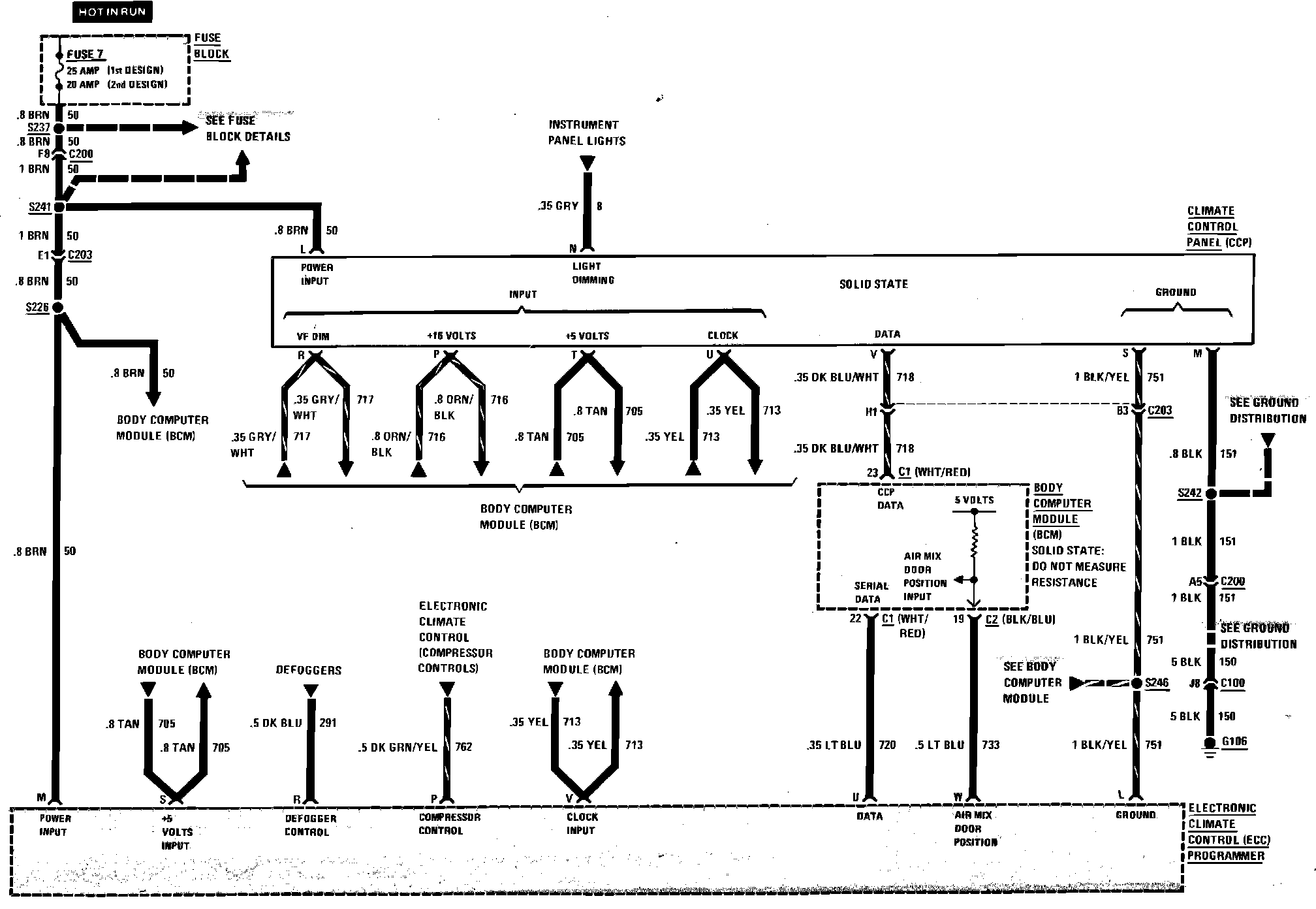

Electronic Climate Control Wiring Circuit:
