Ignition, ECM Power, Idle Speed Control
Ignition, ECM Power, Idle Speed Control

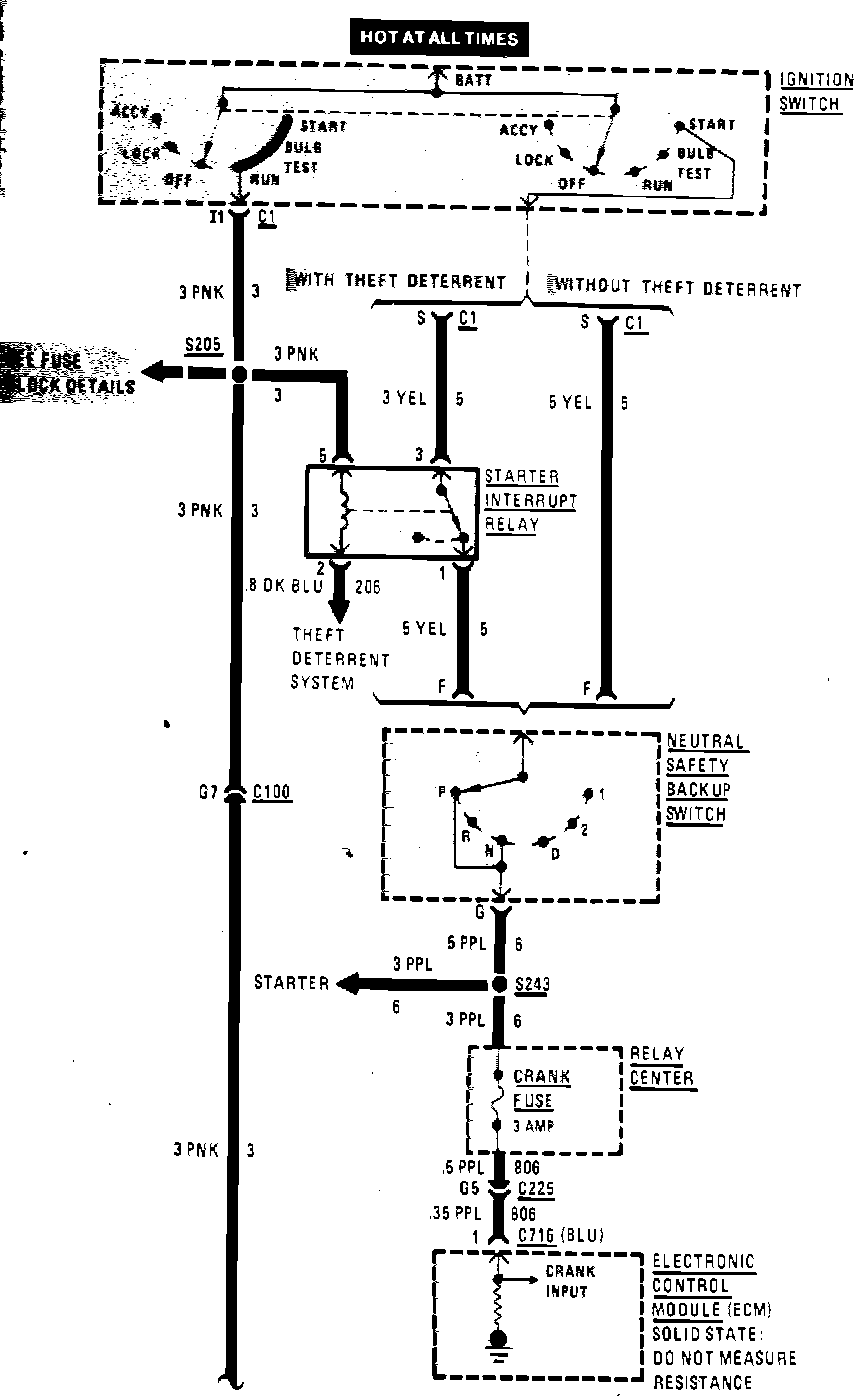

Digital Fuel Injection (ECM Power, Idle Speed & Ignition) Wiring Circuit:

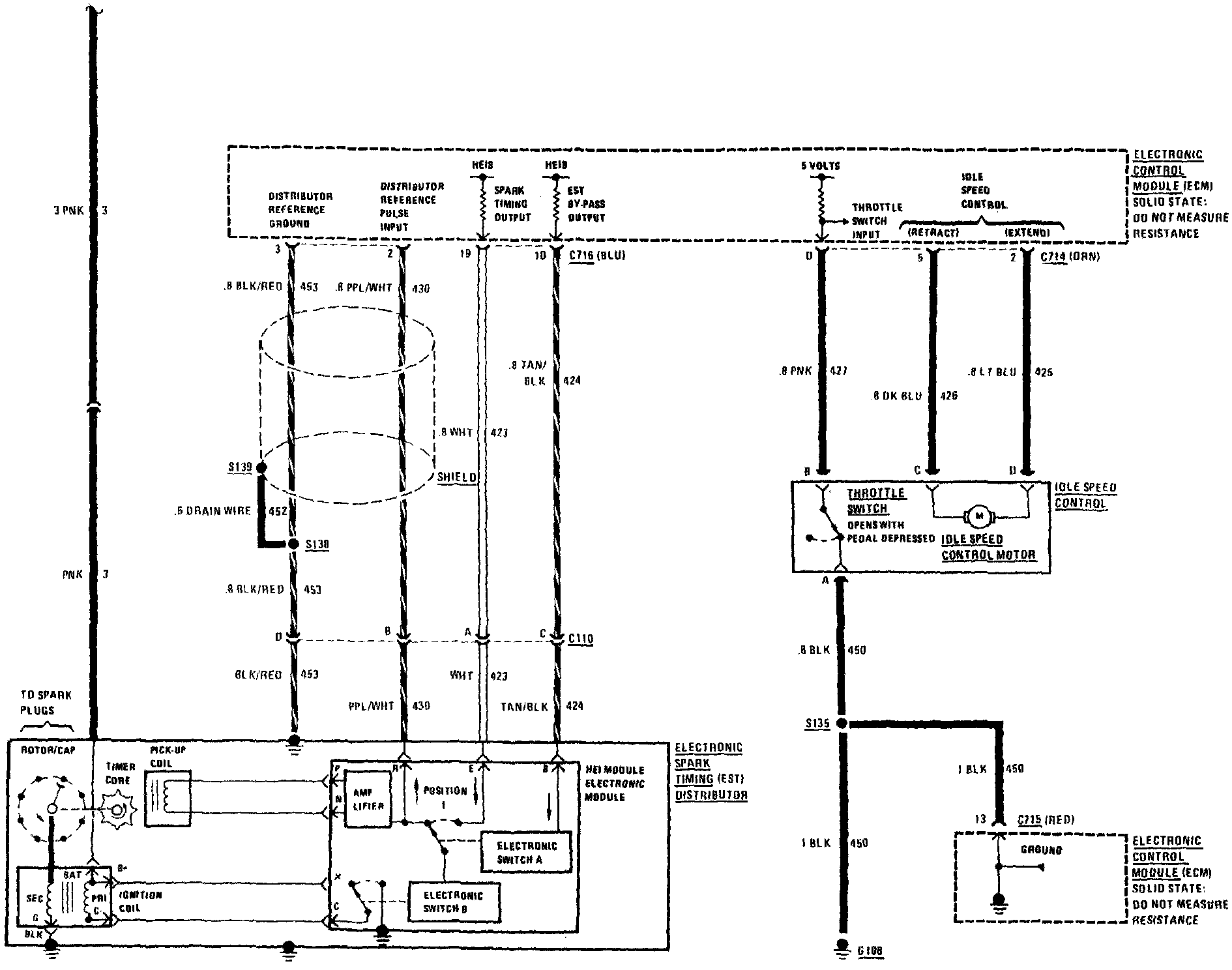

Digital Fuel Injection: Ignition And Idle Speed Control:
