Electronic/Powertrain Control Module (ECM/PCM)
>>
Blue P1 Connector
Blue P1 Connector

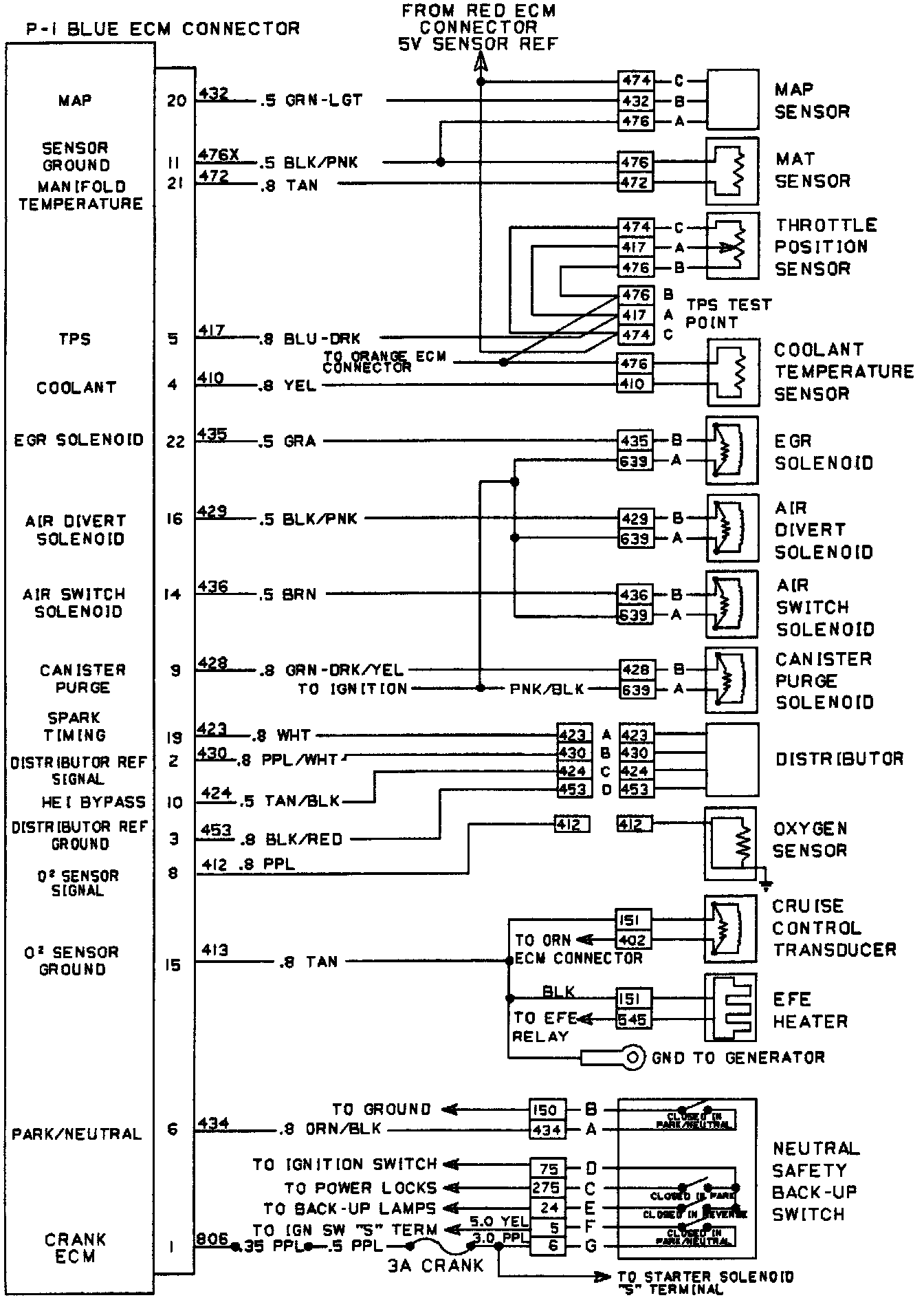

ECM Wiring Connector - Blue P1:
