Home
>>
Cadillac
>>
1984
>>
Seville V8-252 4.1L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

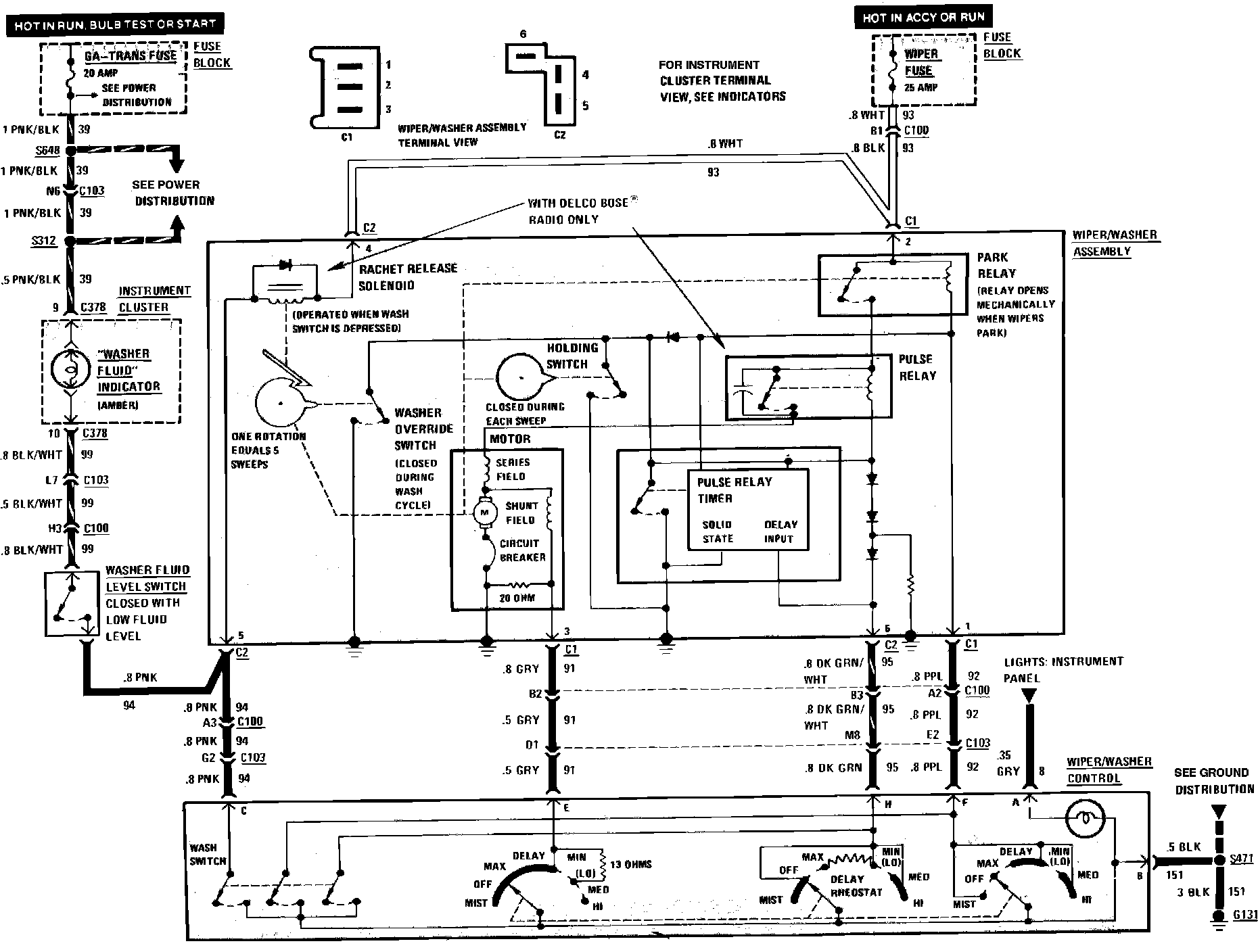

Wiper/Washer Wiring Circuit (Pulse):
