A/T - Early & Late Design Calibration Parts

Bulletin No. T 85-85 File in Group 7
Number 124
Corp. Ref. No. 8047403
Date May '85
SUBJECT: SERVICE REPLACEMENT PARTS - THM 325-4L TRANSMISSION

MODELS AFFECTED: 1984 ELDORADOS AND SEVILLES (GAS ENGINE EQUIPPED)

FIGURE 1 - THM 325-4L TRANSMISSION I.D. NAMEPLATE:

A transmission calibration change took place which effected the control valve assembly, spacer plate, and associated gaskets on 1984 Eldorados and Sevilles equipped with HT4100 engines and AJ or AE model THM 325-4L transmission. This change took place in production beginning at transmission serial numbers 84 AJ 84686 and 84 AE 4838 (refer to Figure 1).
The use of incorrect service replacement parts may result in abnormal shift conditions.

When servicing transmissions built prior to the above listed, serial number breakpoints, refer to the early design calibration parts information in this bulletin. For transmissions built on or after the breakpoints, refer to the late design calibration parts information.

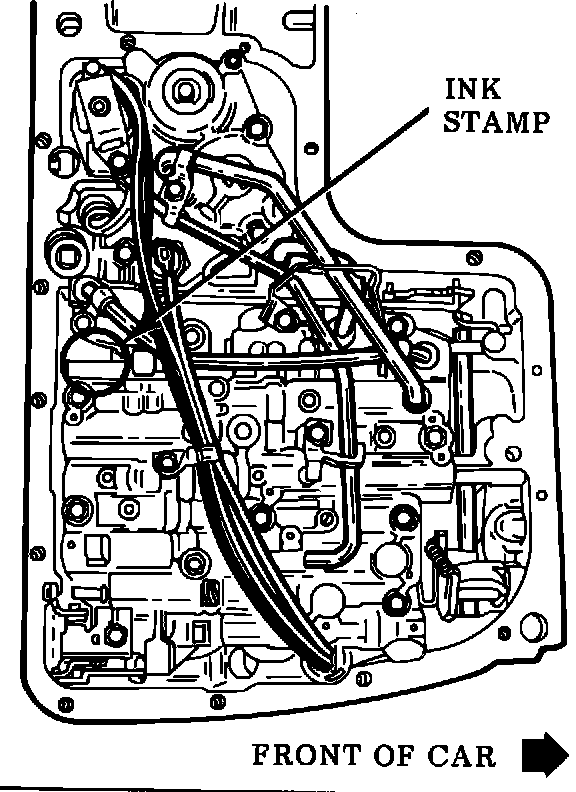

FIGURE 2 - CONTROL VALVE ASSEMBLY IDENTIFICATION:

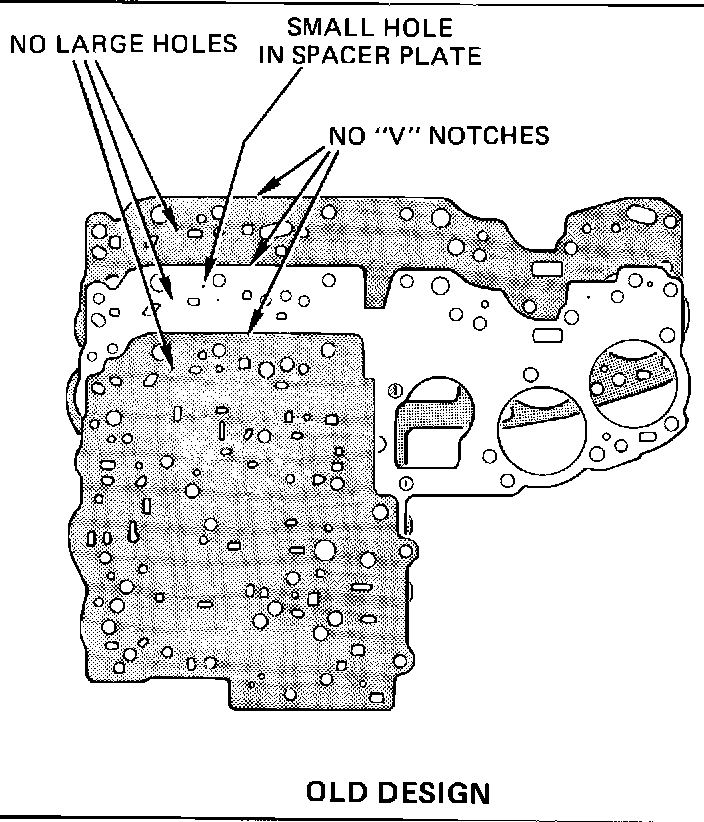

FIGURE 3 - SPACER PLATE AND GASKETS IDENTIFICATION (1984 MODEL BEFORE I.D. #84 AJ 84686 OR 84 AE 4838):

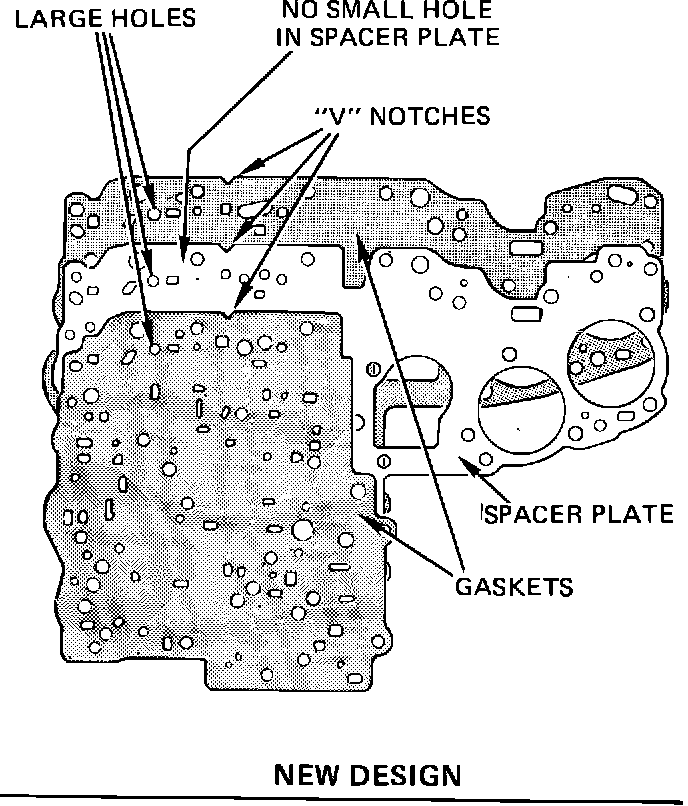

FIGURE 4 - SPACER PLATE AND GASKETS IDENTIFICATION (1984 MODEL AT OR AFTER I.D. #84 AJ 84686 OR 84 AE 4838):

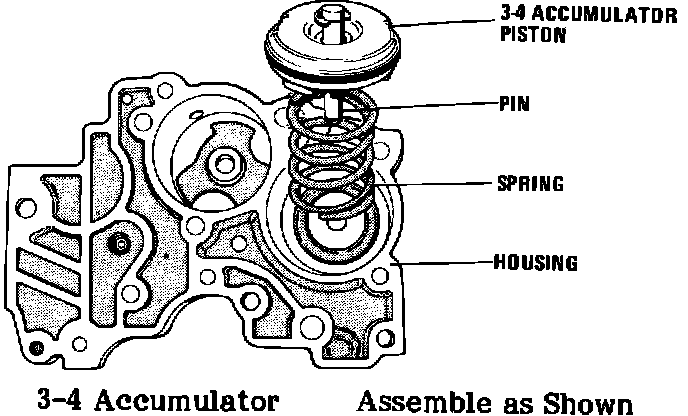

FIGURE 5 - 3-4 ACCUMULATOR SPRING (Not Used in Early Design Calibrations):

EARLY DESIGN CALIBRATION SERVICE PARTS INFORMATION REFER TO
PART NAME IDENTIFICATION PART NUMBER FIGURE
Control Valve Assembly "AJ1" (ink print)* 8639640 2
Spacer Plate "AB" (stamp) 8635655 3
Gasket Kit, fits only None 8635919** 3
early design or (superceded by)
Gasket Kit, fits either V-Notch 8635976** 4
design

LATE DESIGN CALIBRATION SERVICE PARTS INFORMATION REFER TO
PART NAME IDENTIFICATION PART NUMBER FIGURE
Control Valve Assy. Service Kit "AJ2" (ink print)* 8635974*** 2
Spacer Plate "AJ" (with V-notch) 8635661 4
Gasket - Kit V-notch 8635976** 4
3-4 Accumulator Piston Spring Pink and Green 8639858 5
3-4 Accumulator Piston Snap Ring - 274612 5
Instruction Sheet - 8635975 -
*Ink print markings on control valve assemblies denote model type (letters) and calibration level (numbers). Level numbering begins with "1" each new model year. **Contains case side and control valve side spacer plate gaskets and accumulator housing gasket. Individual gaskets are not available separately. ***The late design control valve is not available separately, the service kit also contains spacer, gaskets, 3-4 accumulator spring, late design snap ring and instruction sheet.

NOTICE: Transmission overhaul kits (part numbers 8635906 and 8635916) packaged prior to mid-September, 1984 (date listed on package) contain spacer plate gaskets which can only be used with the early calibration control valve assembly and spacer plate. Overhaul kits packaged after mid-September do not contain spacer plate gaskets.
