Home >> Cadillac >> 1984 >> Seville V8-252 4.1L >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Diagrams >> Electrical Diagrams >> Part 2 of 2

Part 2 of 2

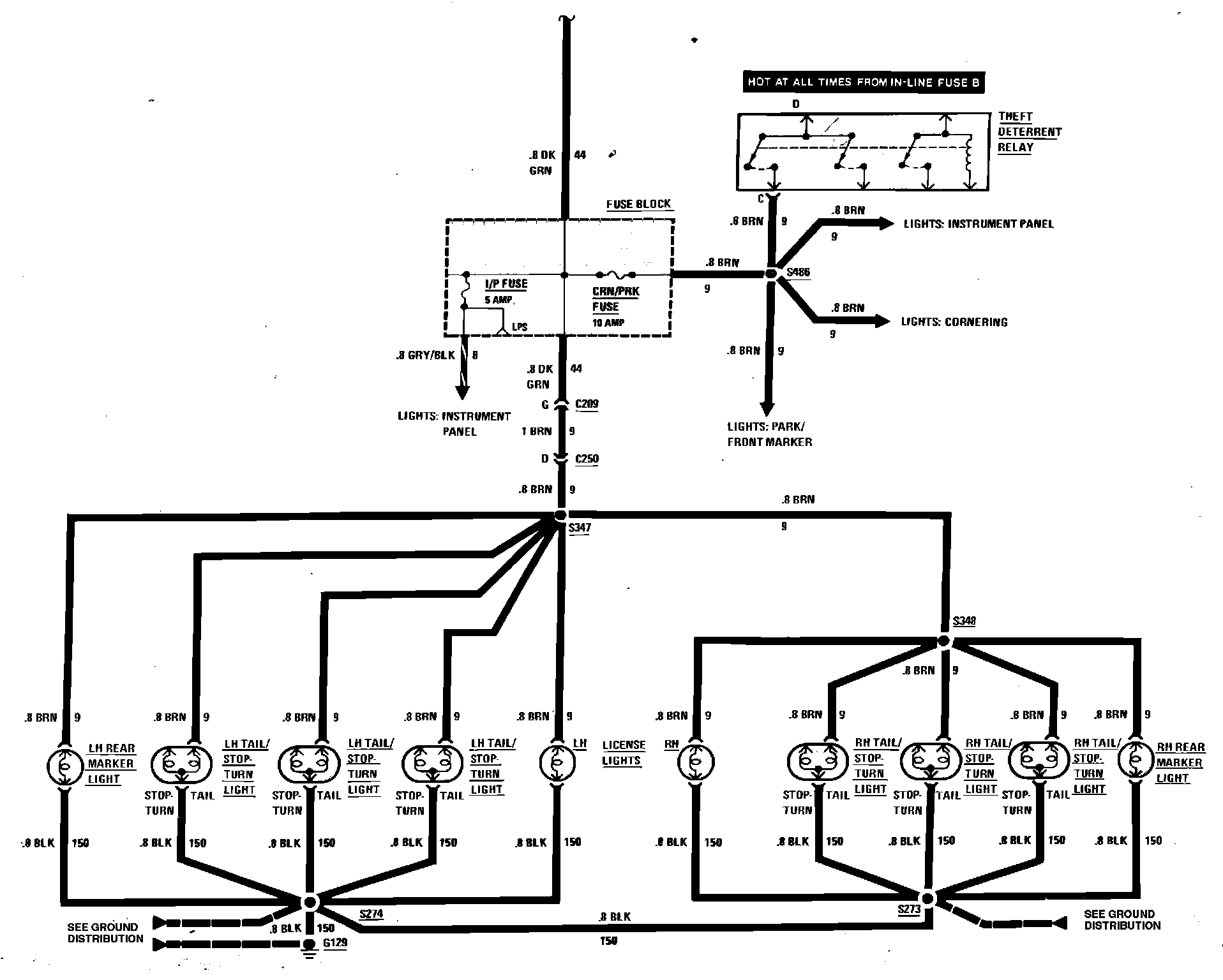

License, Rear Marker & Tail Lamp Wiring Circuit:
