Home
>>
Cadillac
>>
1984
>>
Seville V8-252 4.1L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts
>>

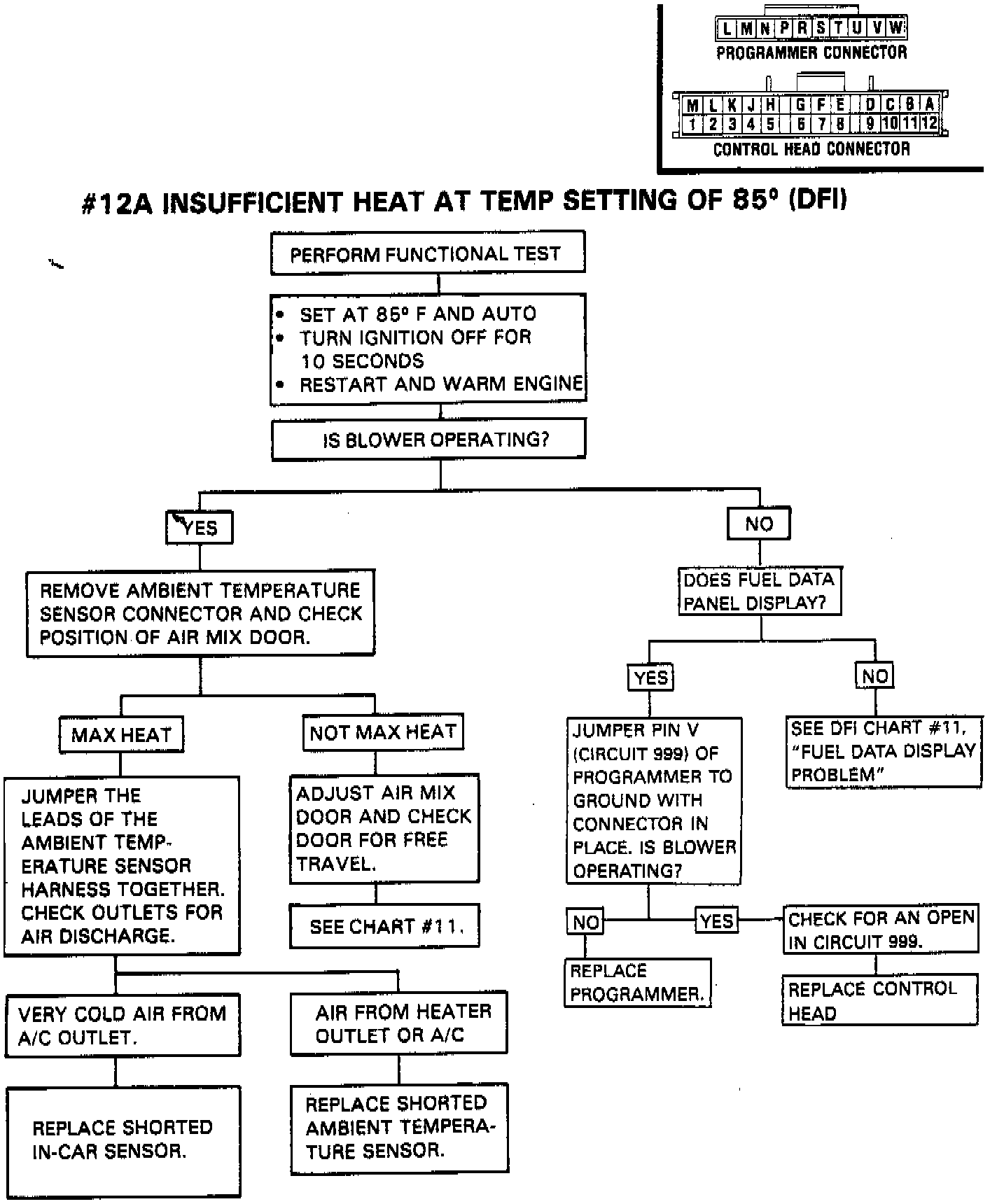

Chart 12A Insufficient Heat at Temp Setting of 85 Degree F (DFI)
Chart 12A Insufficient Heat at Temp Setting of 85 Degree F (DFI)
Chart #12A:
