Home
>>
Cadillac
>>
1984
>>
Seville V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
4 Door Hard Top
4 Door Hard Top

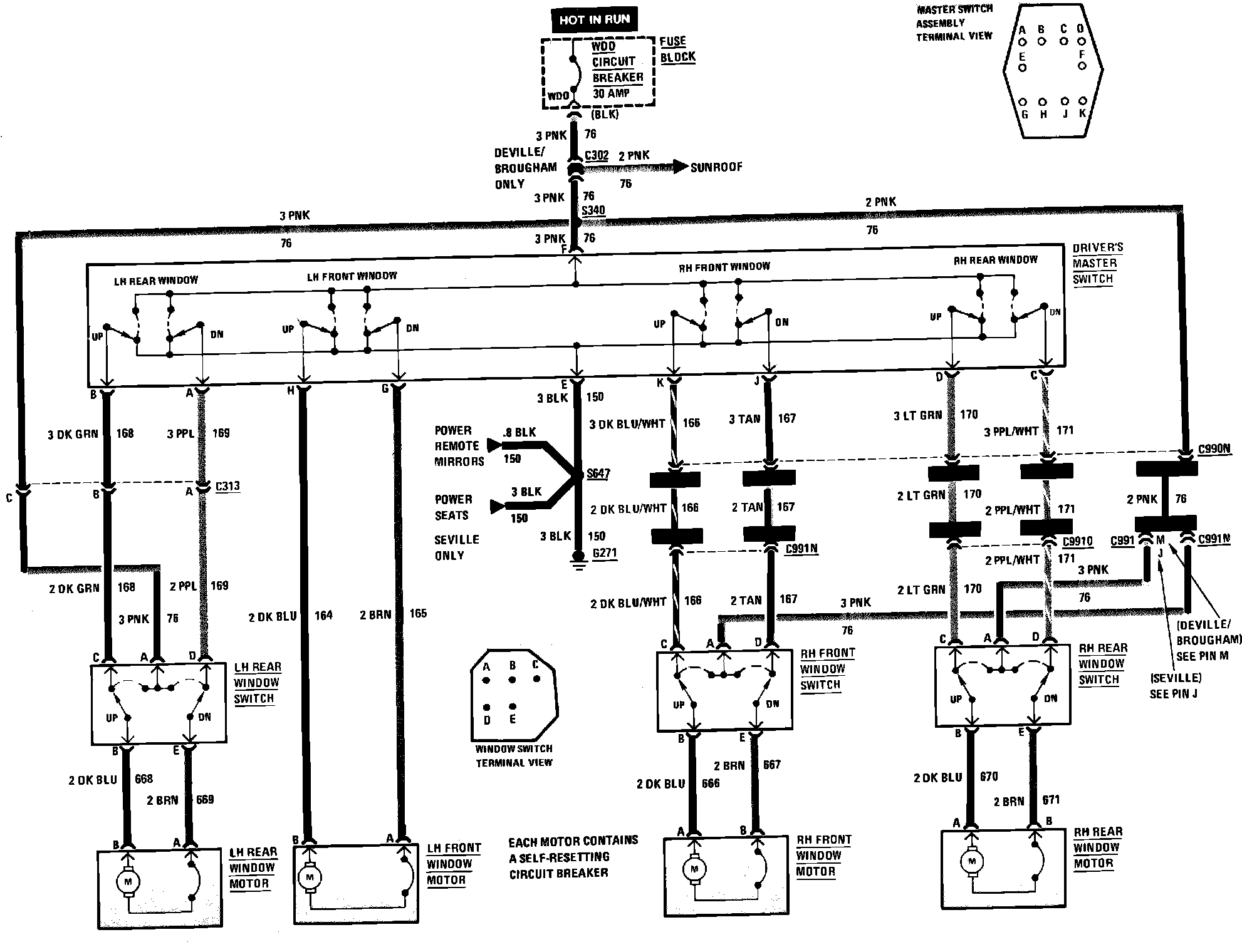

Power Windows Wiring Circuit (4 Door Hard Top):
