Home >> Cadillac >> 1984 >> Seville V8-252 4.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Power Seat Wiring Circuit >> Three Motors W/Memory Less Delco-Bose >> Part 1 of 2

Part 1 of 2

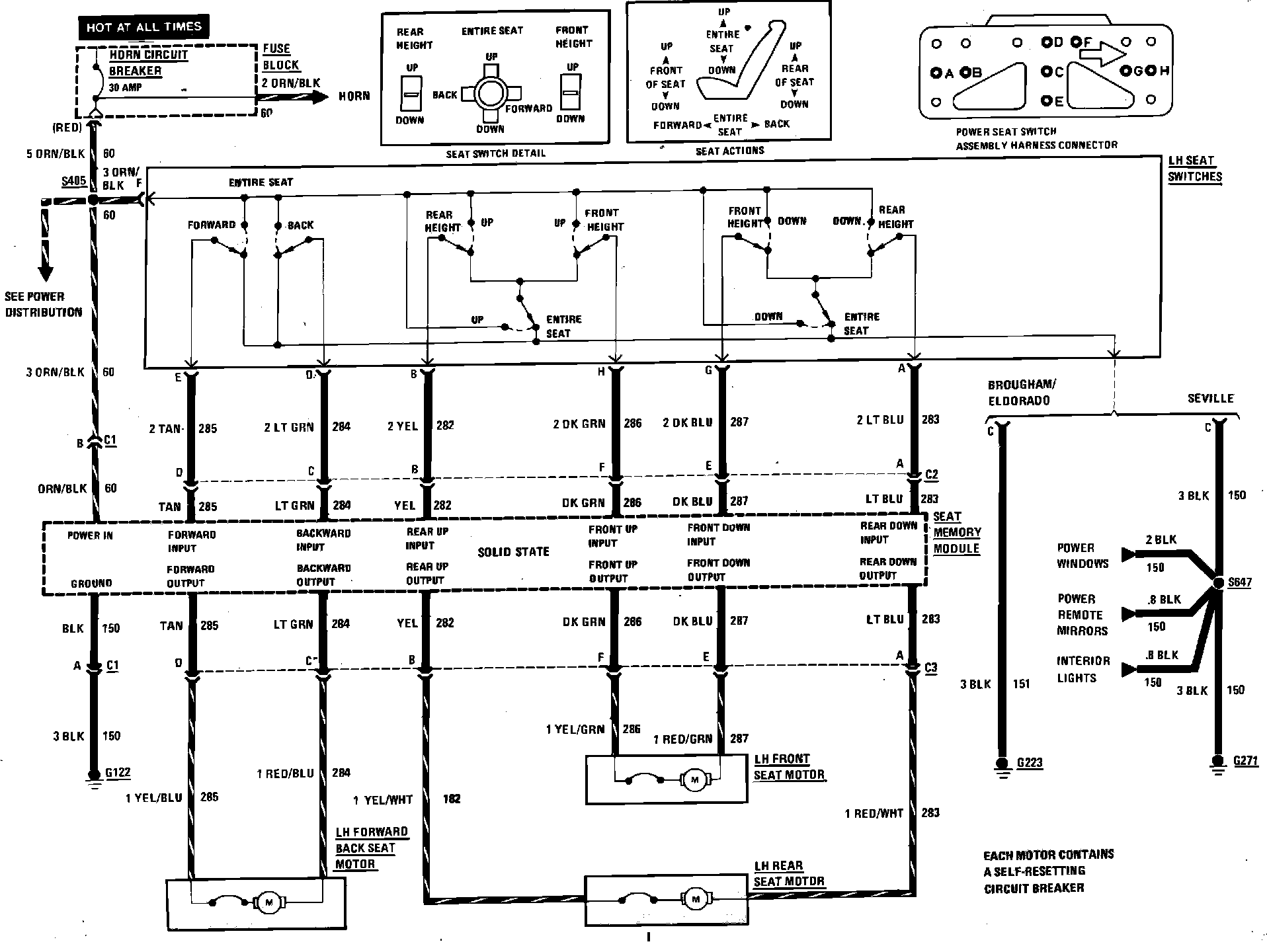

Power Seat (Three Motors W/Memory Less Delco-Bose) Wiring Circuit:
