Cornering Lamp

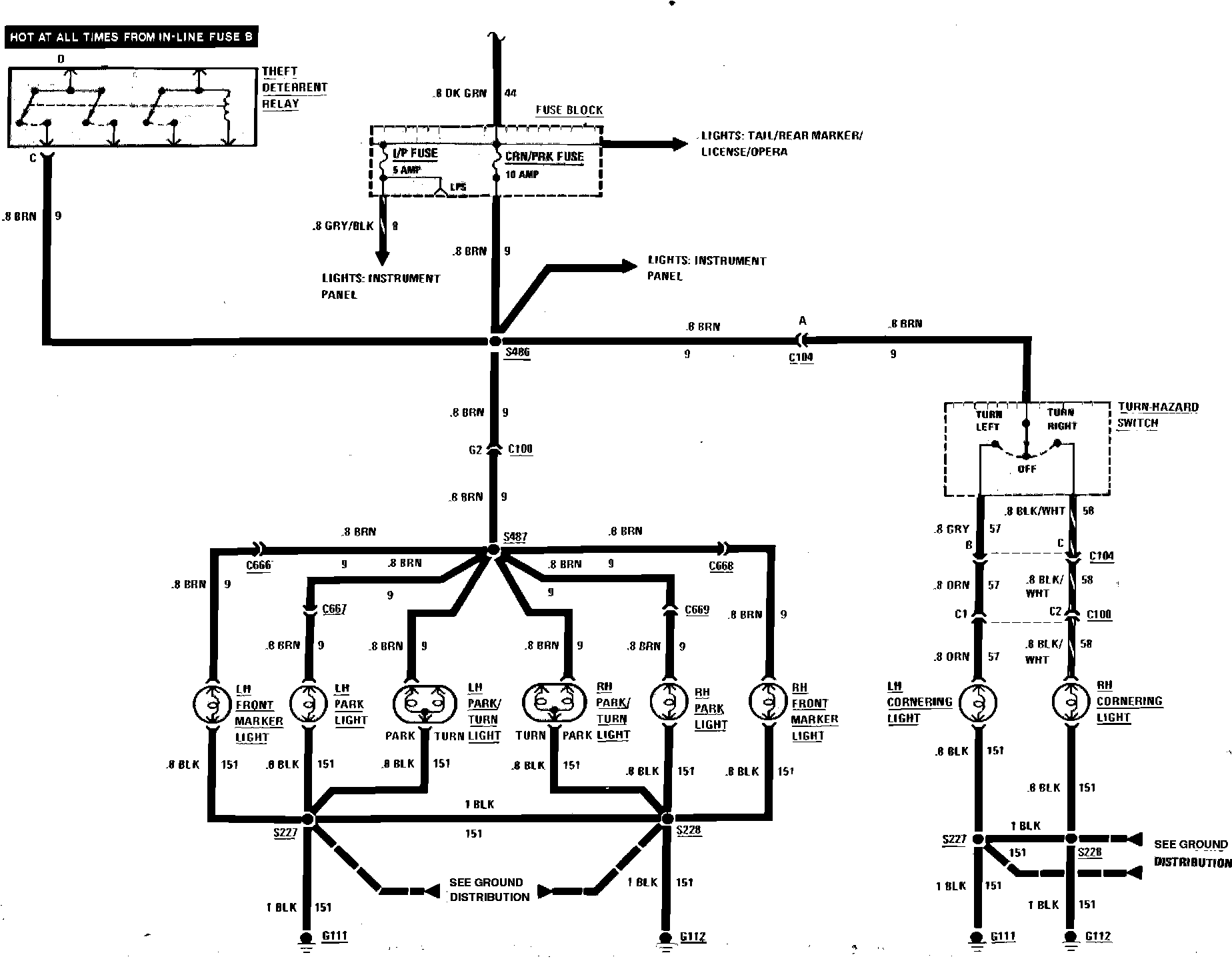

Cornering, Front Marker & Front Park Lighting Wiring Circuit:

Cornering, Front Marker & Front Park Lighting Wiring Circuit:
