A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 42
DTC 42

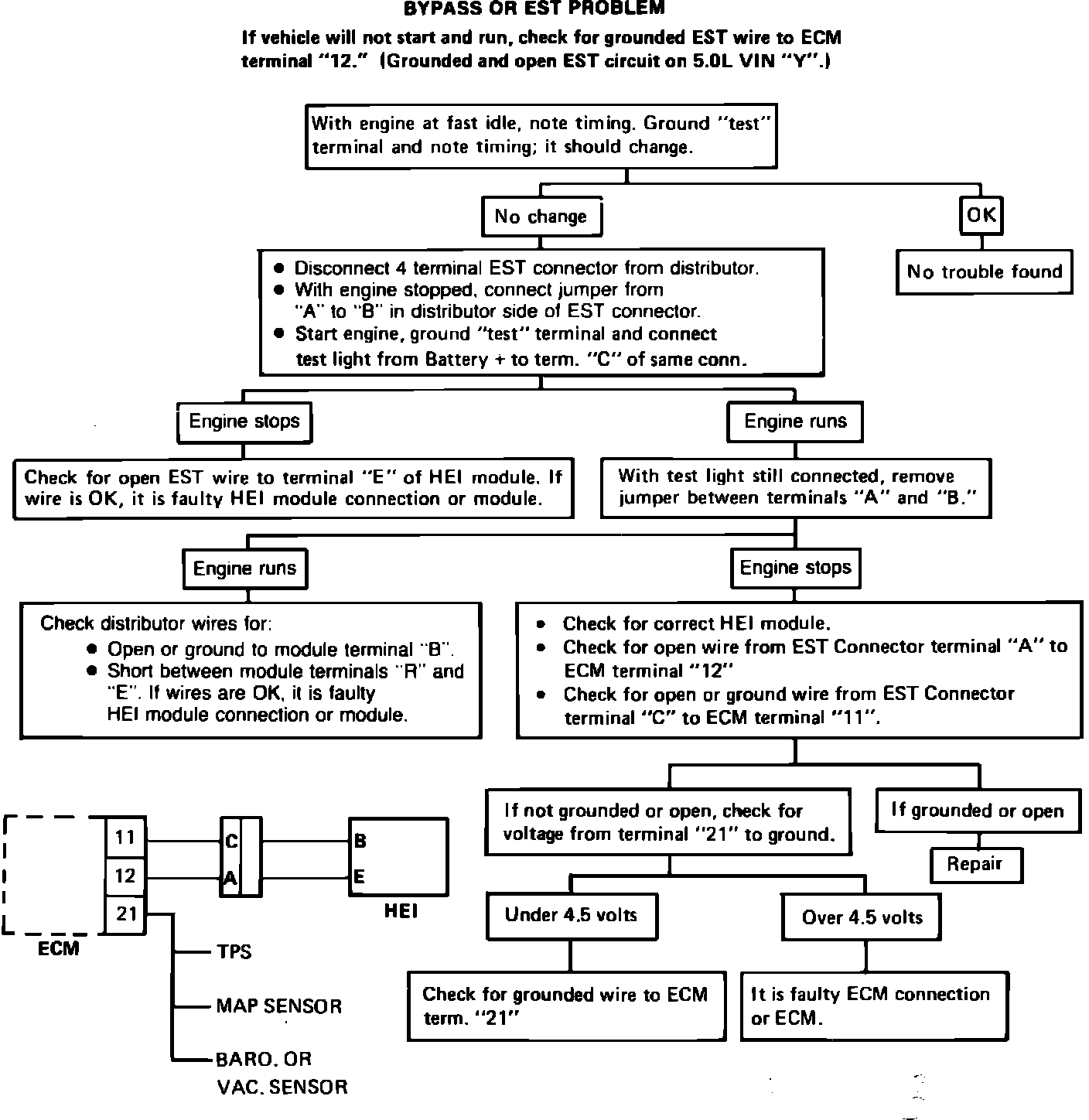

Fig. 5a Code 42 chart (Part 1 of 9). Carbureted models (use this chart with HEI-EST ignition system diagnostic charts):
