Cadillac
>>
1984
>>
Full Size Cad RWD V8-350 5.7L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Control
>>
High Altitude
High Altitude

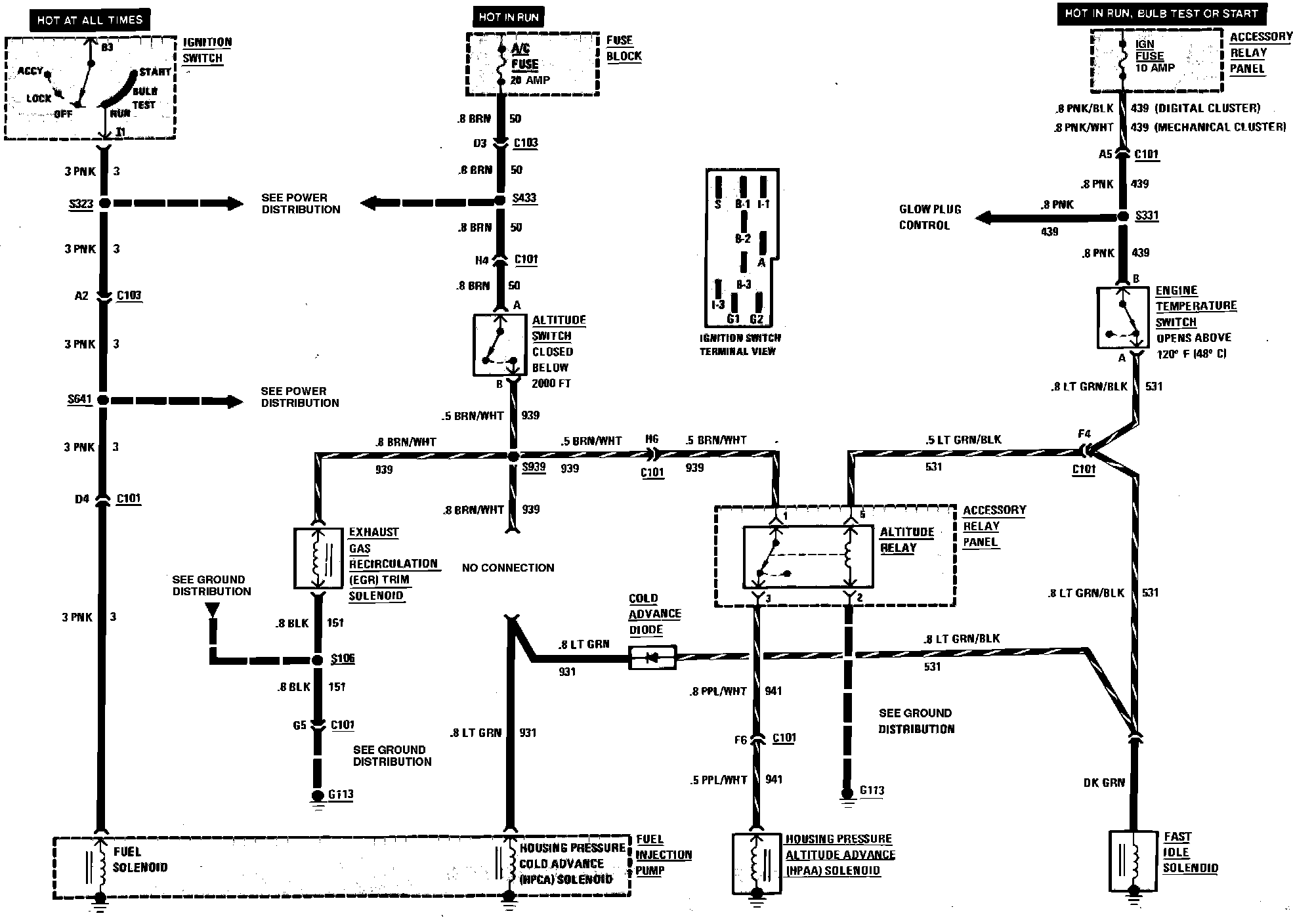

Diesel Engine Fuel Control Wiring Circuit:
