Home >> Cadillac >> 1984 >> Full Size Cad RWD V8-252 4.1L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Four Door Less Memory Seat

Four Door Less Memory Seat

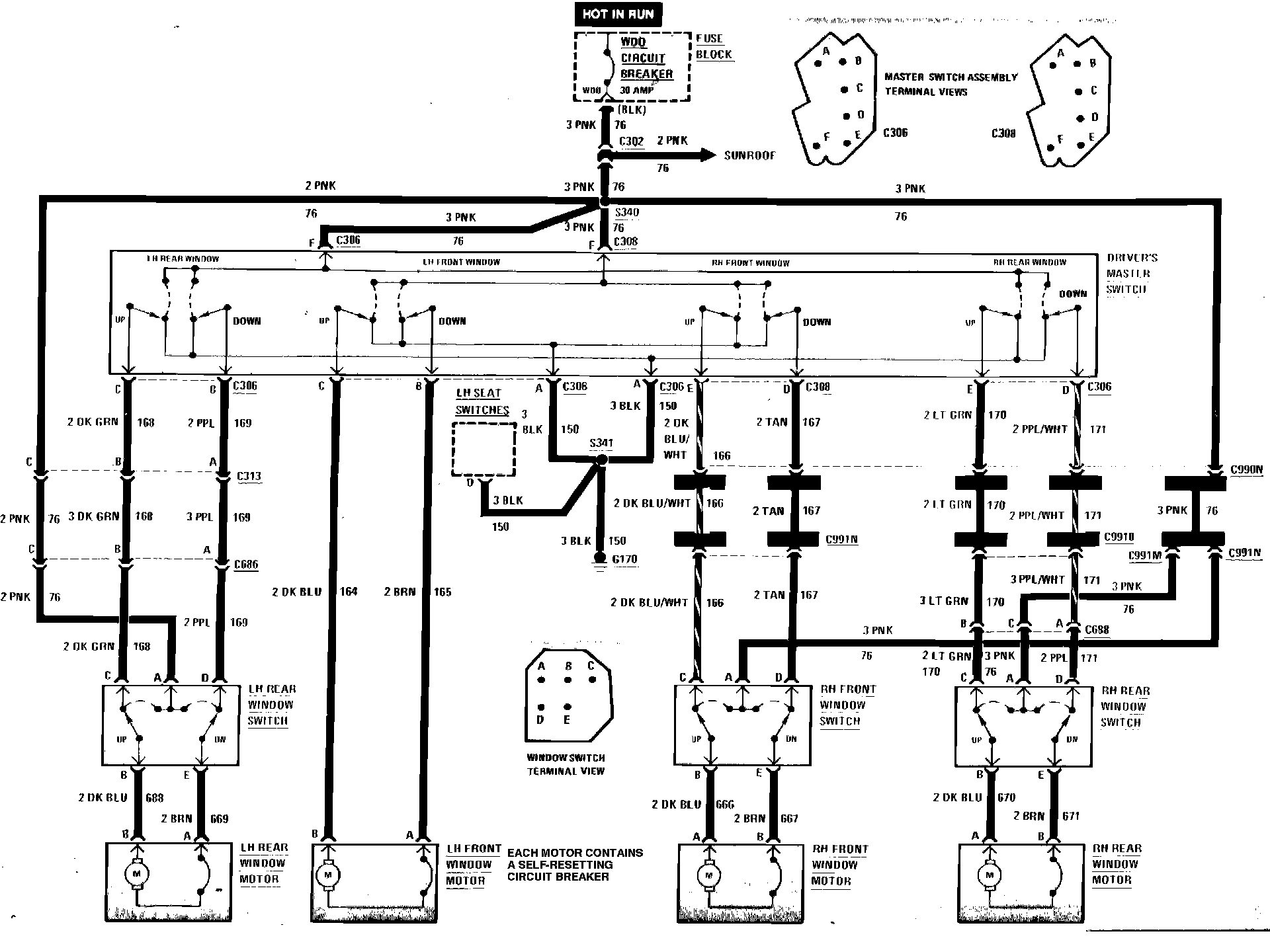

Power Windows Wiring Circuit, Four Door Less Memory Seat:
