Emission Controls & Engine Data Sensors
Emission Controls & Engine Data Sensors

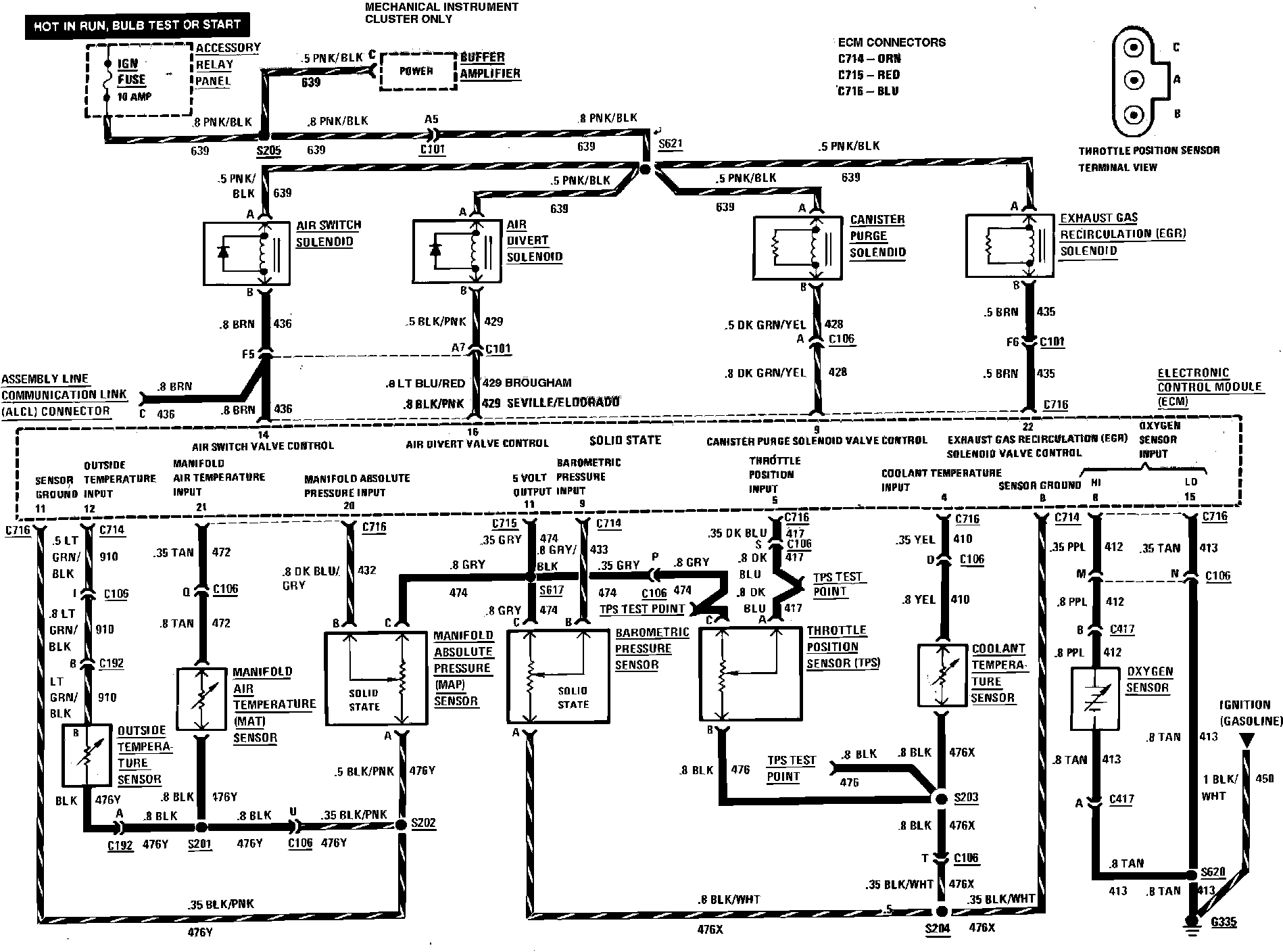

Digital Fuel Injection (Engine Data Sensors & Emission Controls) Wiring Circuit:
