Right Hand Instrument Panel Circuit
Right Hand Instrument Panel Circuit

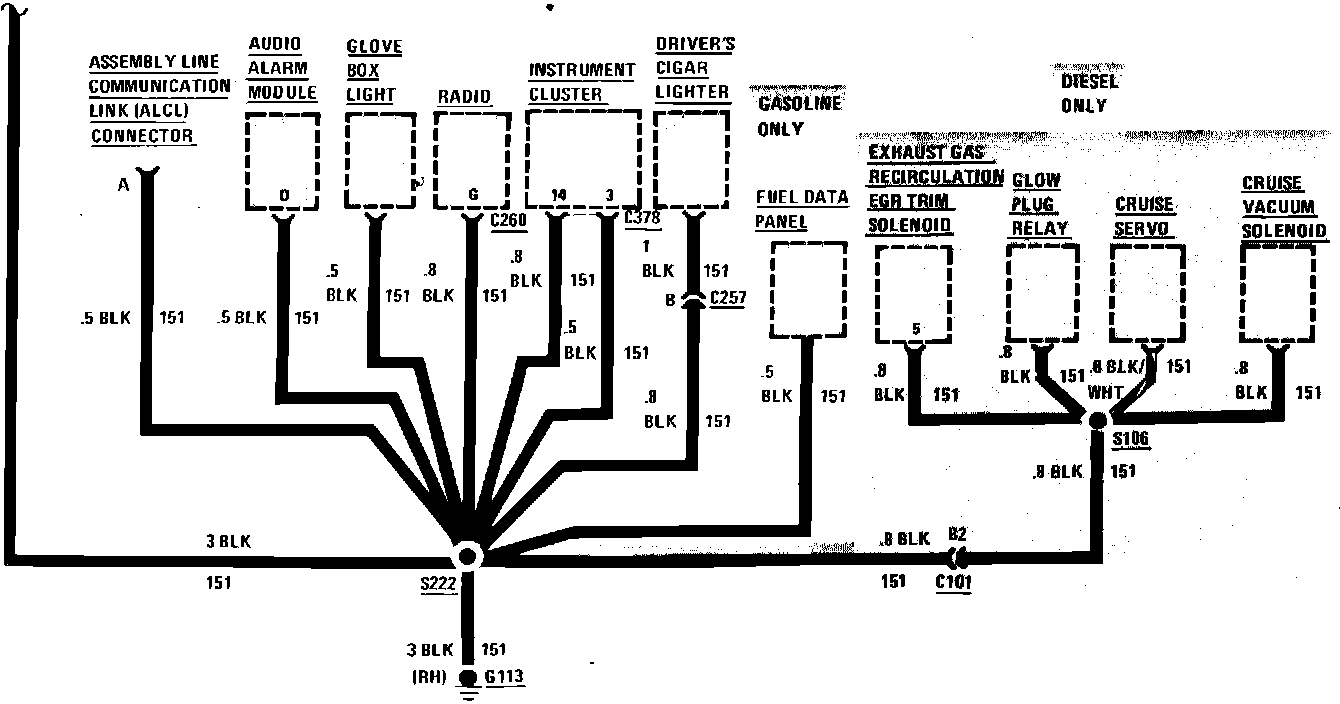

Ground Distribution (Right Hand Instrument Panel Circuit):
