Left Hand Instrument Panel Circuit
Left Hand Instrument Panel Circuit

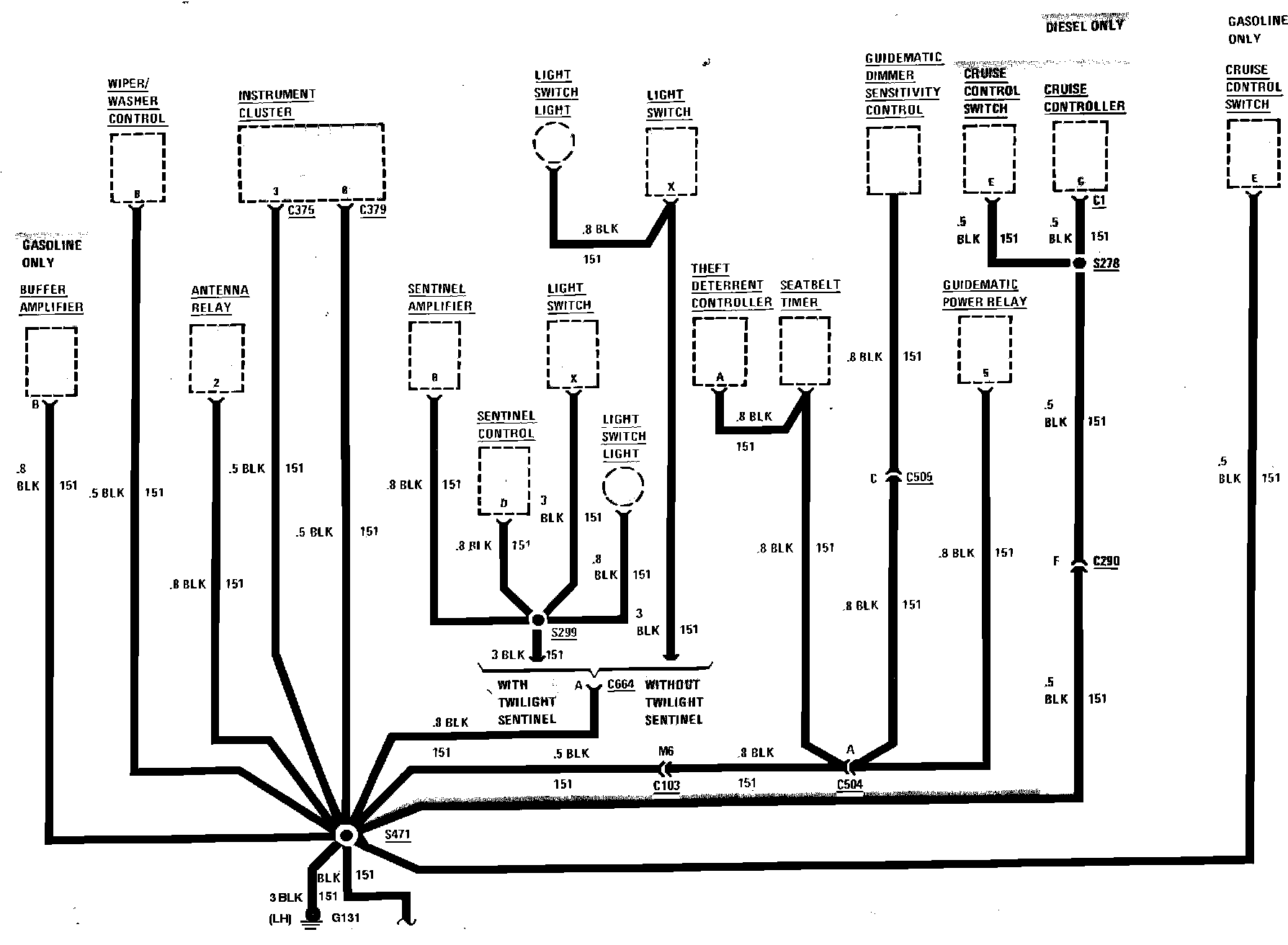

Ground Distribution (Left Hand Instrument Panel Circuit):
