Cadillac
>>
1984
>>
Full Size Cad RWD V8-252 4.1L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

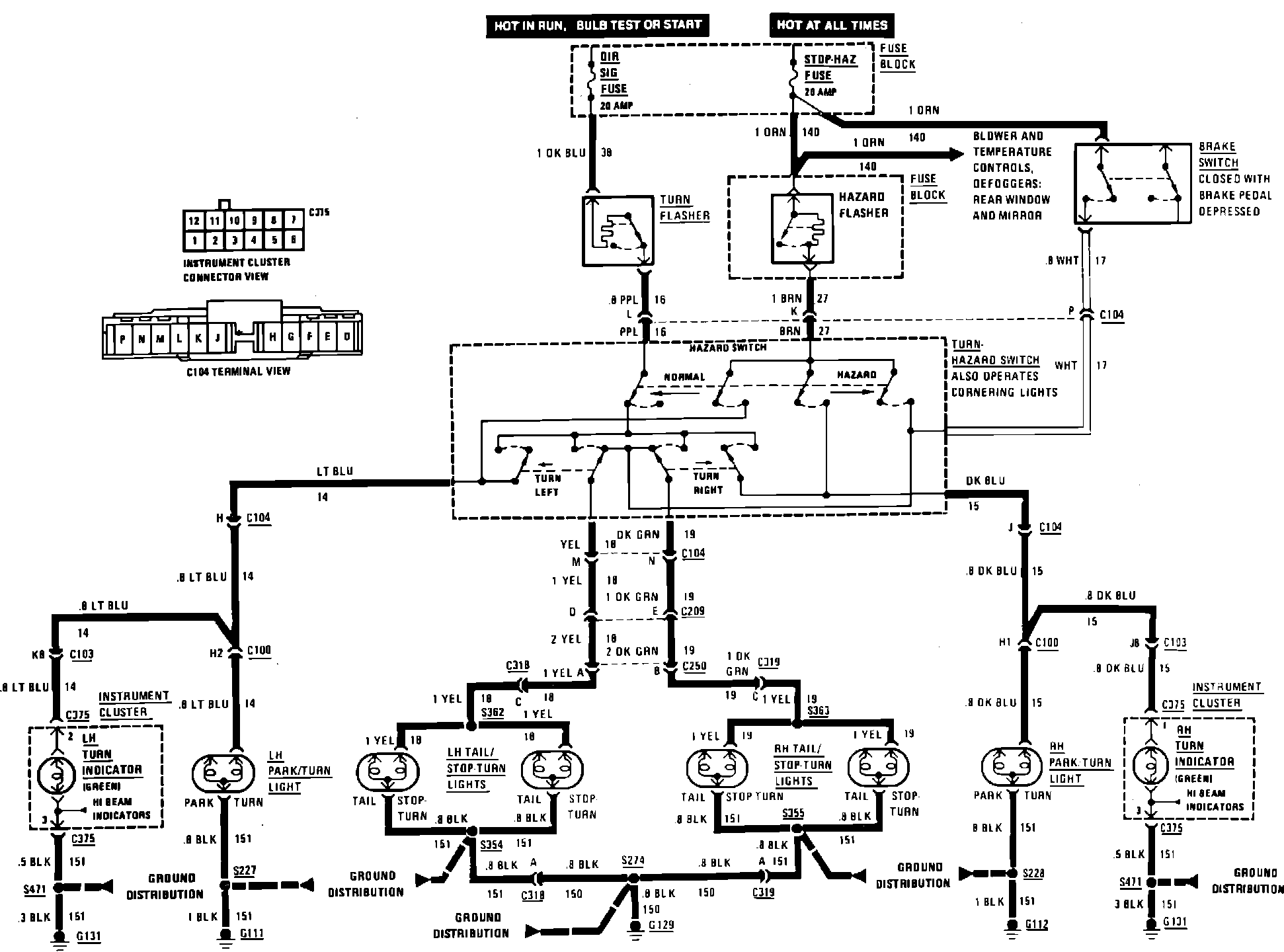

Turn, Hazard And Stop Lights Wiring Diagram:
