Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1984
>>
Full Size Cad RWD V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
Wiper and Washer Systems

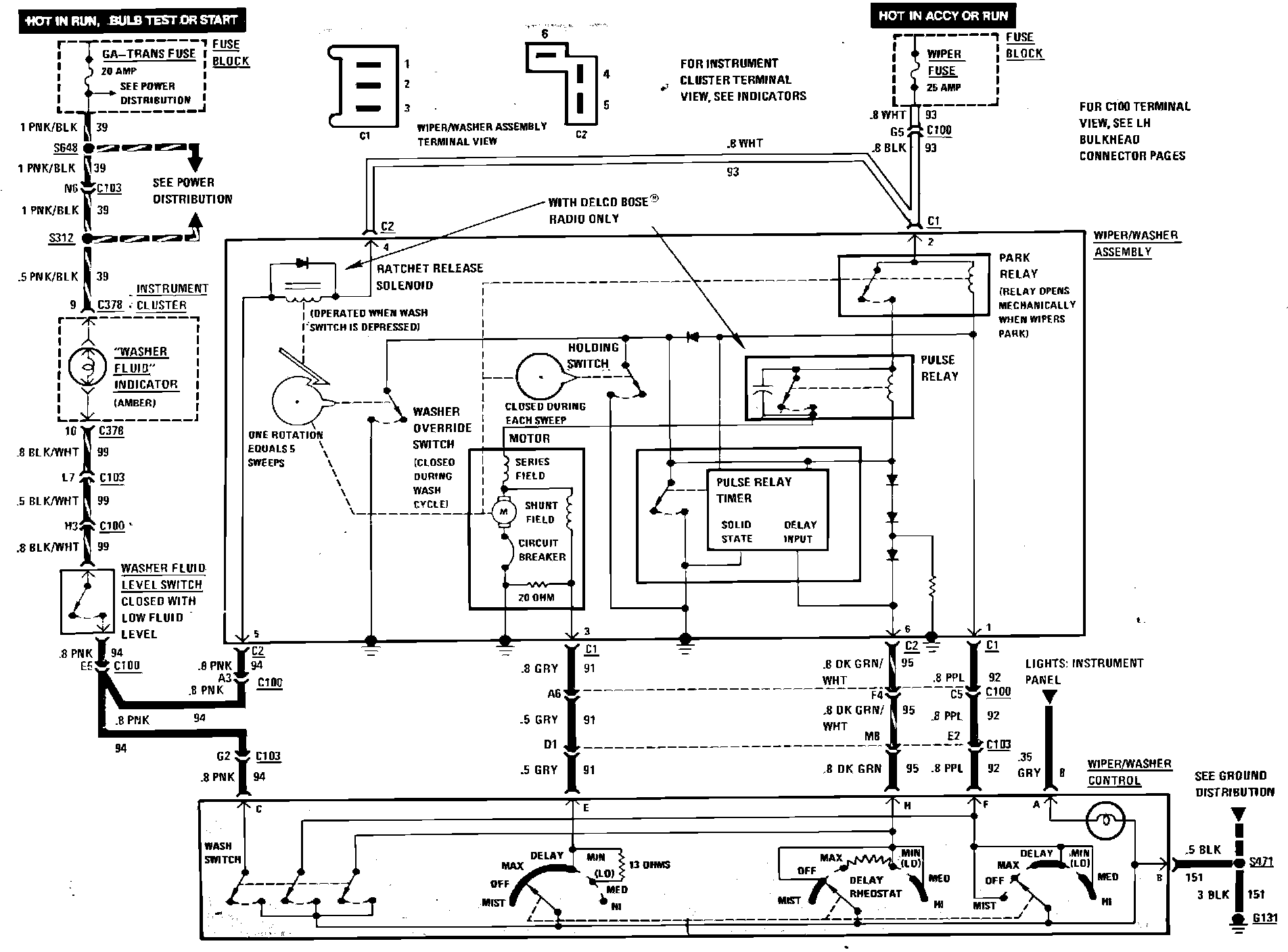

Wiper/Washer (W/Pulse) Wiring Circuit:
