Home
>>
Cadillac
>>
1984
>>
Full Size Cad RWD V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
System Diagram
System Diagram

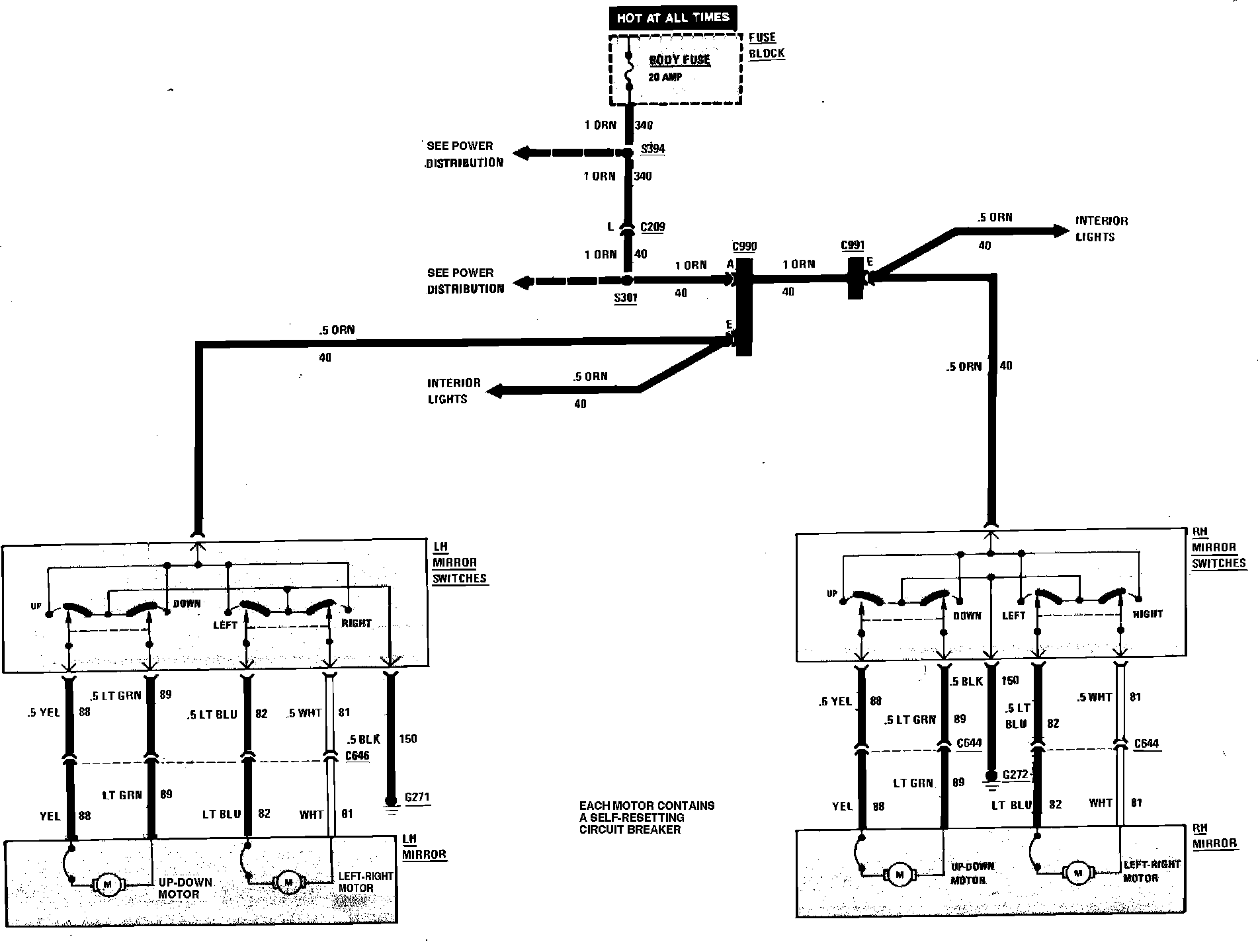

Power Remote Mirror Wiring Circuit:
