Home >> Cadillac >> 1984 >> Eldorado V8-252 4.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Power Seat Wiring Circuit >> One Motor W/Memory Less Delco-Bose >> Part 2 of 2

Part 2 of 2

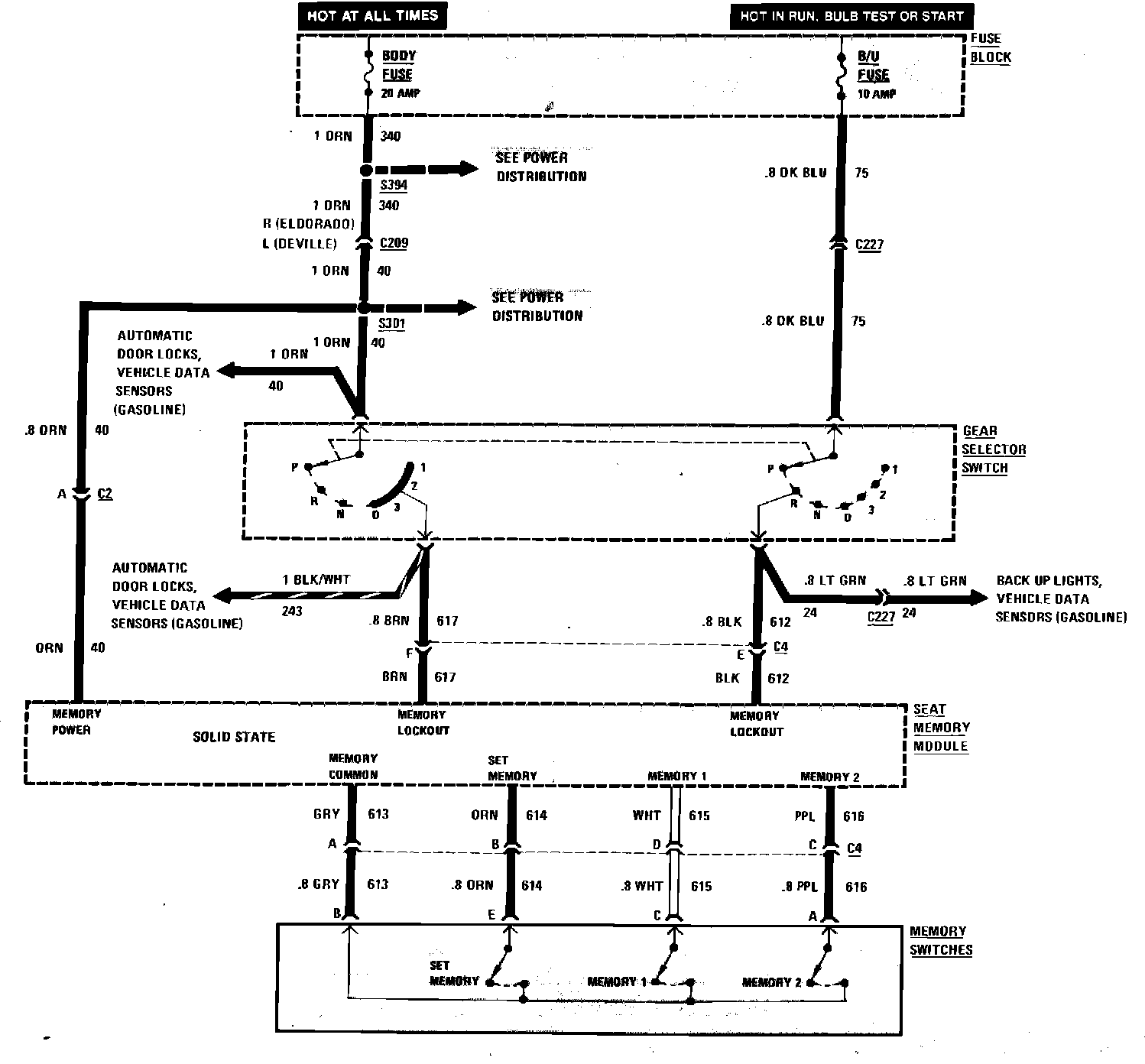

Power Seat (One Motor W/Memory Less Delco-Bose) Wiring Circuit:
