Cadillac
>>
1984
>>
Cimarron L4-121 2.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Garage Door Opener & Interior Lighting
>>
Less Astro Roof
Less Astro Roof

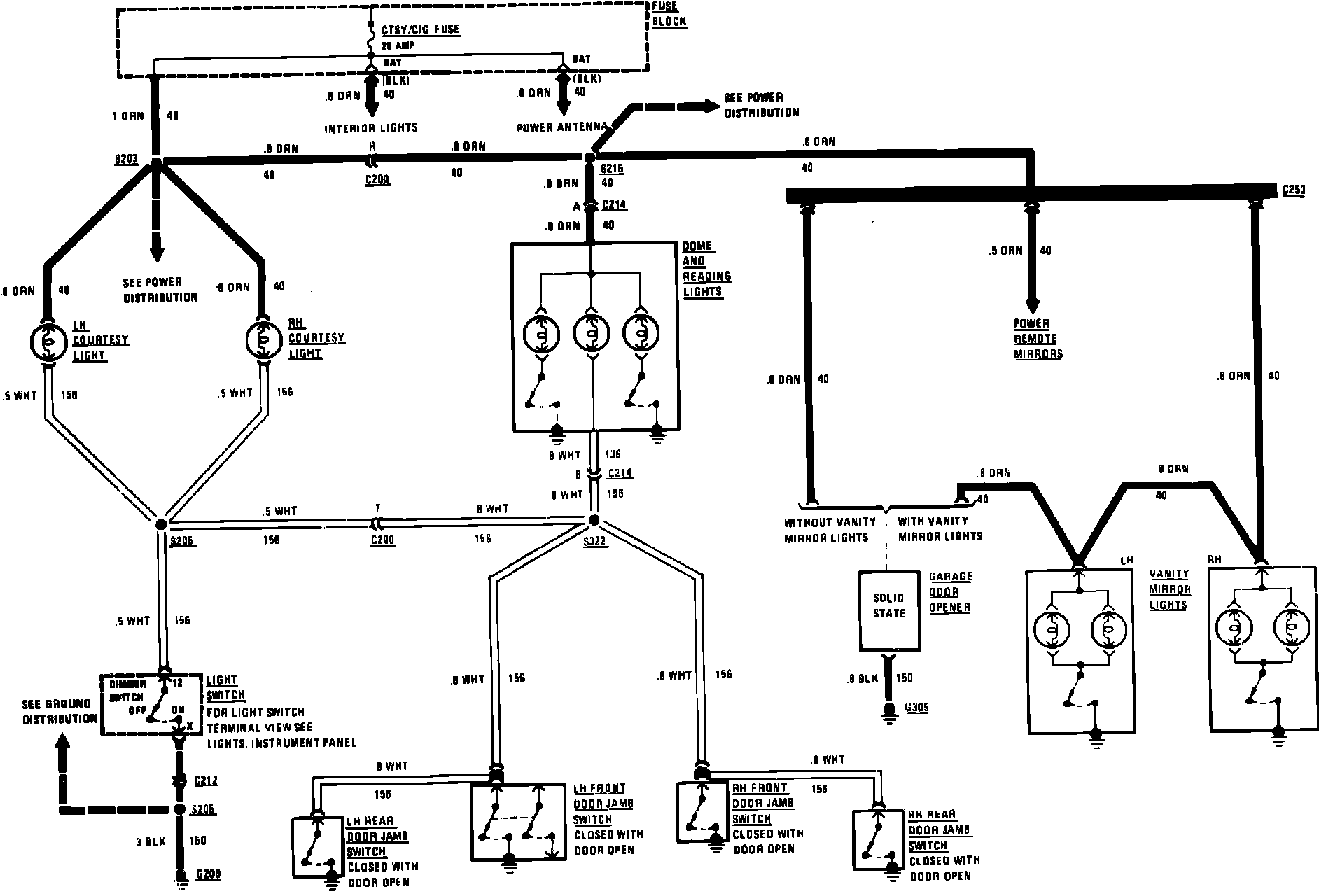

Garage Door Opener & Interior Lighting Wiring Circuit (Less Astro Roof):
