Overhead Cam

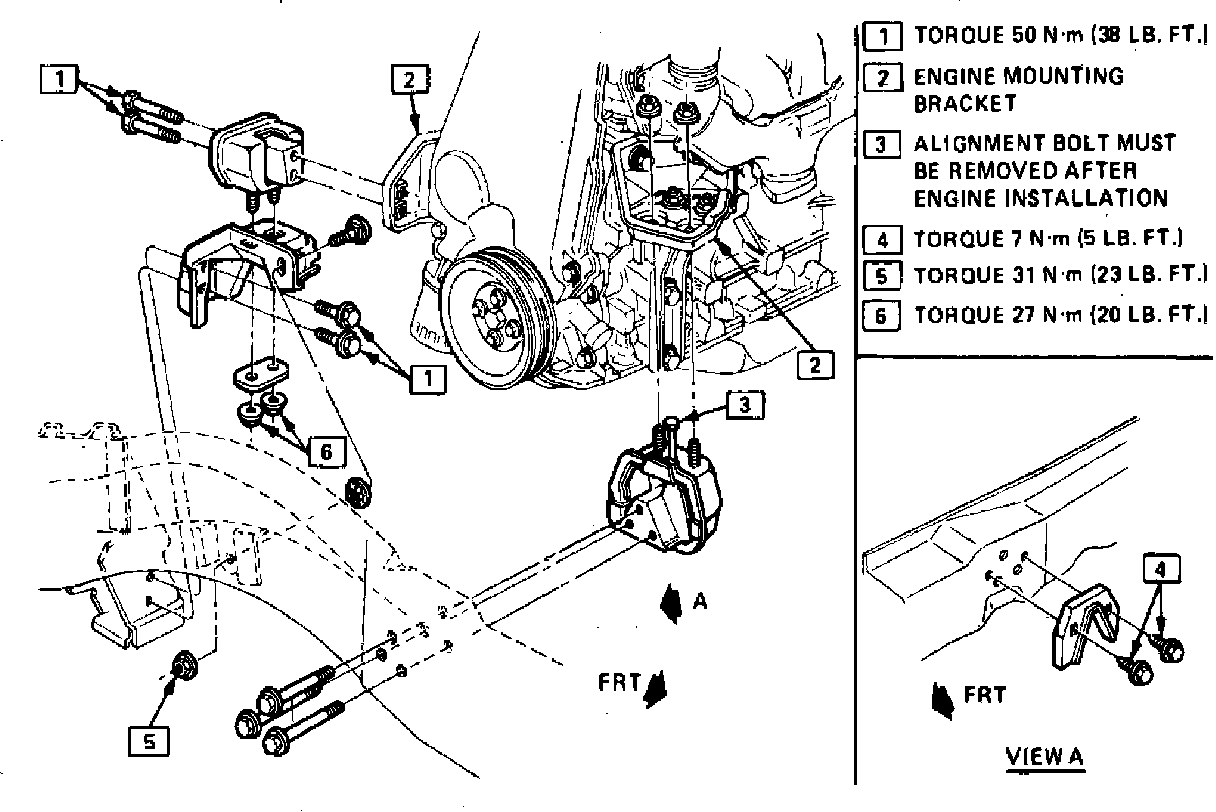

Fig. 1 Front engine mounts. 1982---84:

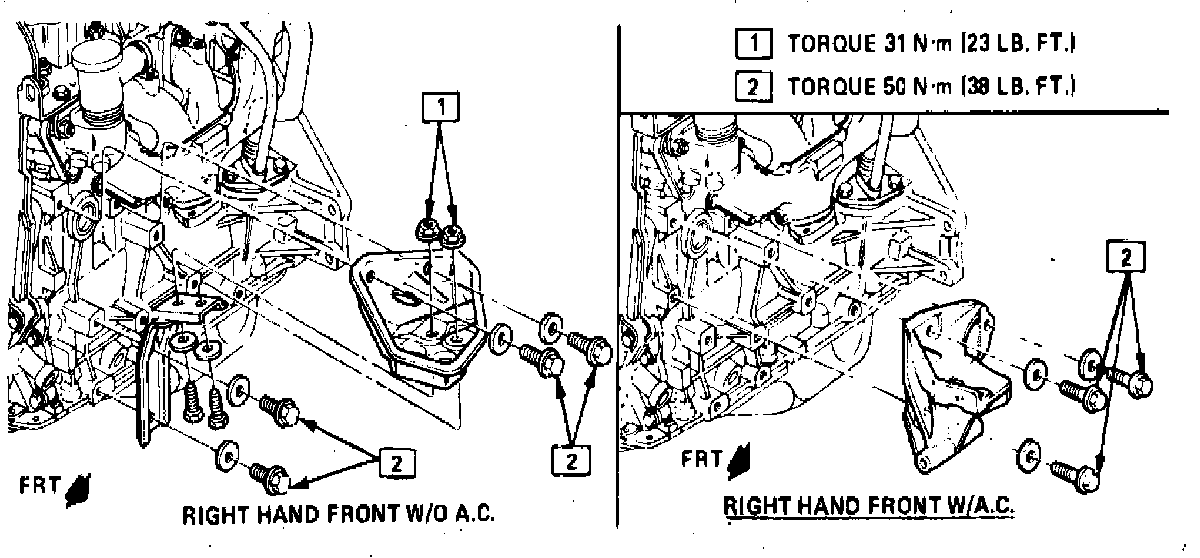

Fig. 2 Righthand front engine mount brackets. 1982---84:

FRONT ENGINE MOUNT
1982-84
1. Disconnect battery ground cable.
2. Remove engine mount nuts, then raise and support vehicle.
3. Remove inner fender shield attaching bolts, then the shield.
4. Support engine and remove and discard engine mount attaching bolts.
5. Remove engine mount from vehicle. Whenever engine mount is removed, alignment bolt M6X1X65 must be used during installation to prevent power train misalignment.
6. Reverse procedure to install, using new engine mount bolts. Remove alignment bolt. If excessive effort is required to remove alignment bolt, loosen transaxle adjusting bolts to align powertrain components.

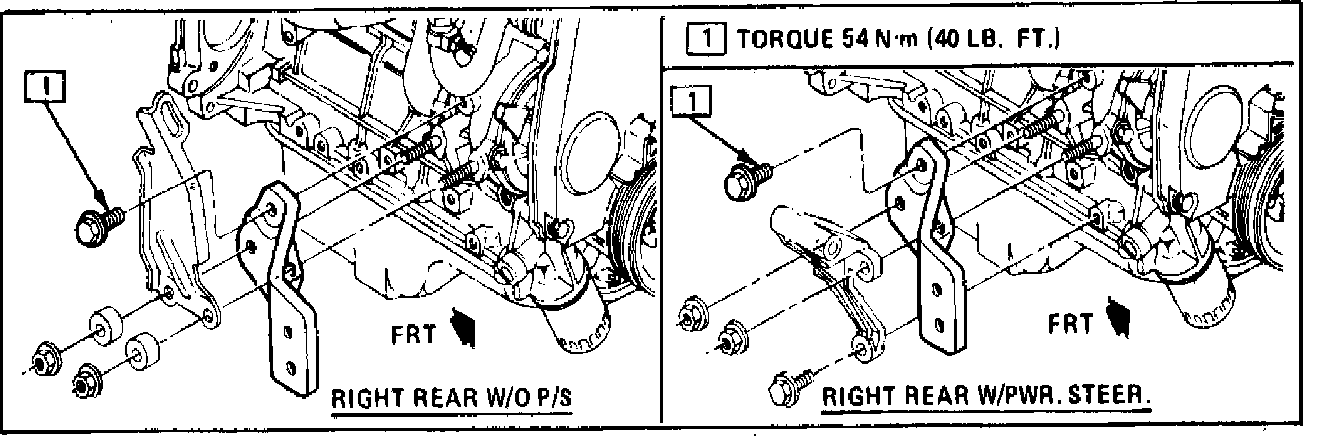

Fig. 4 Righthand rear engine mount brackets. 1982---84:

REAR ENGINE MOUNT
1982-84
1. Disconnect battery ground cable.
2. Raise and support vehicle.
3. If equipped with manual transaxle, remove oil filter.
4. Support engine and remove engine mount nuts, Fig. 4.
5. Remove and discard engine mount to engine attaching bolts.
6. Remove engine mount from vehicle.
7. Reverse procedure to install.
