Seville V8-252 4.1L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Tune-up and Engine Performance Checks
>>
Fuel Pressure
>>
Testing and Inspection
>>
Component Diagnostic Charts
Component Diagnostic Charts
Chart #4.:

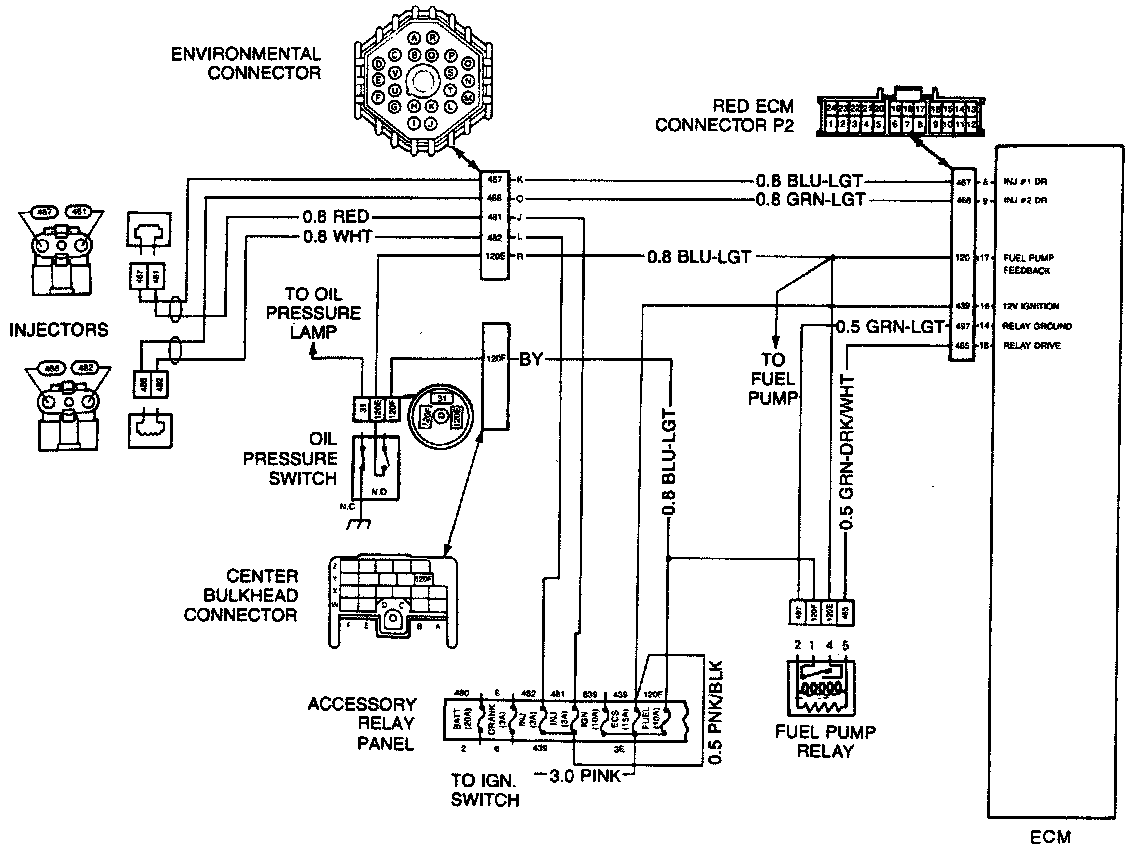

Wiring Diagram.:
