Vehicle Data Sensors
Vehicle Data Sensors

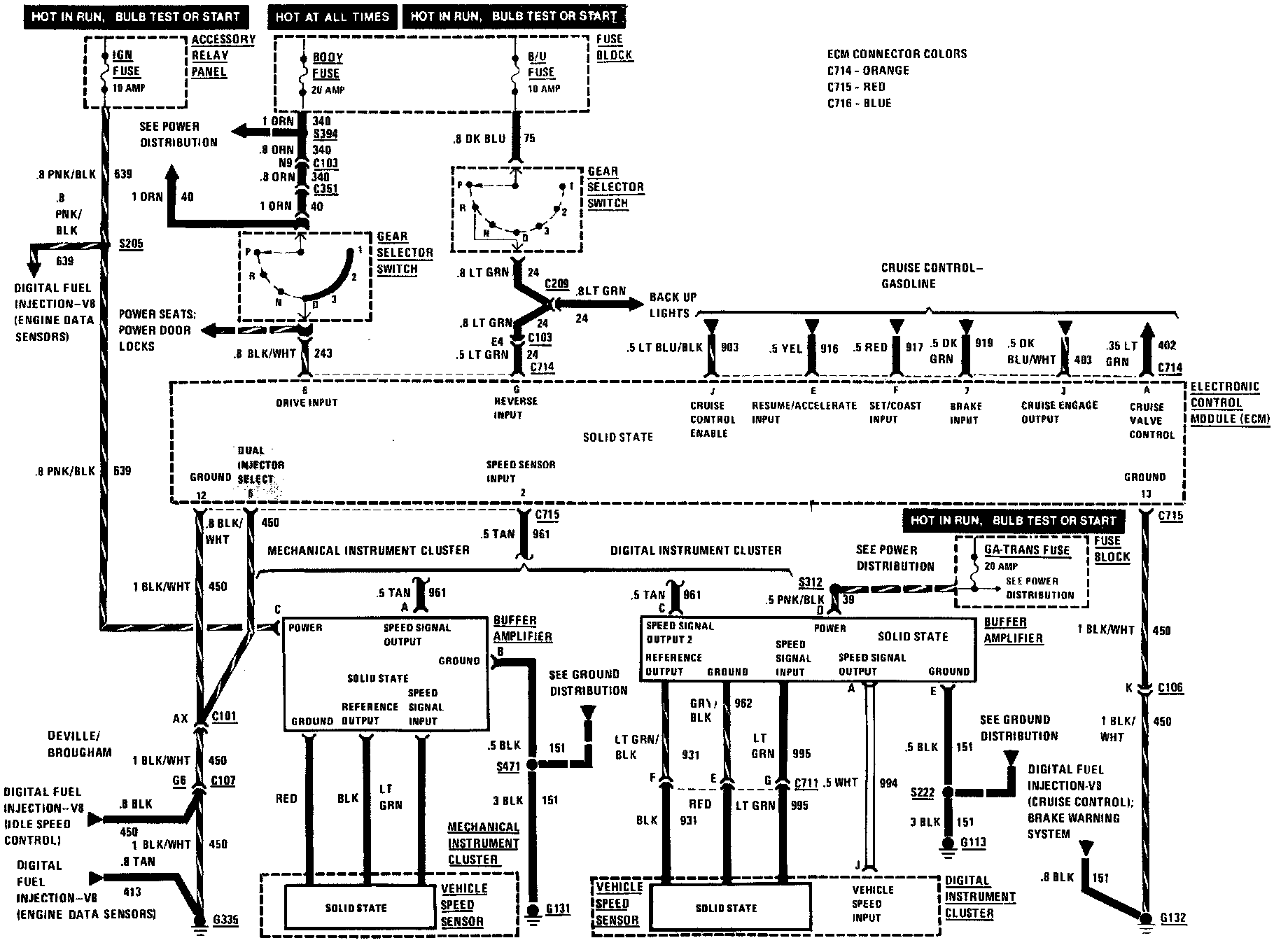

Wiring Diagram.:
Digital Fuel Injection (Vehicle Data Sensors) Wiring Circuit:
