Home >> Cadillac >> 1983 >> Seville V8-252 4.1L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Part 2 of 3

Part 2 of 3

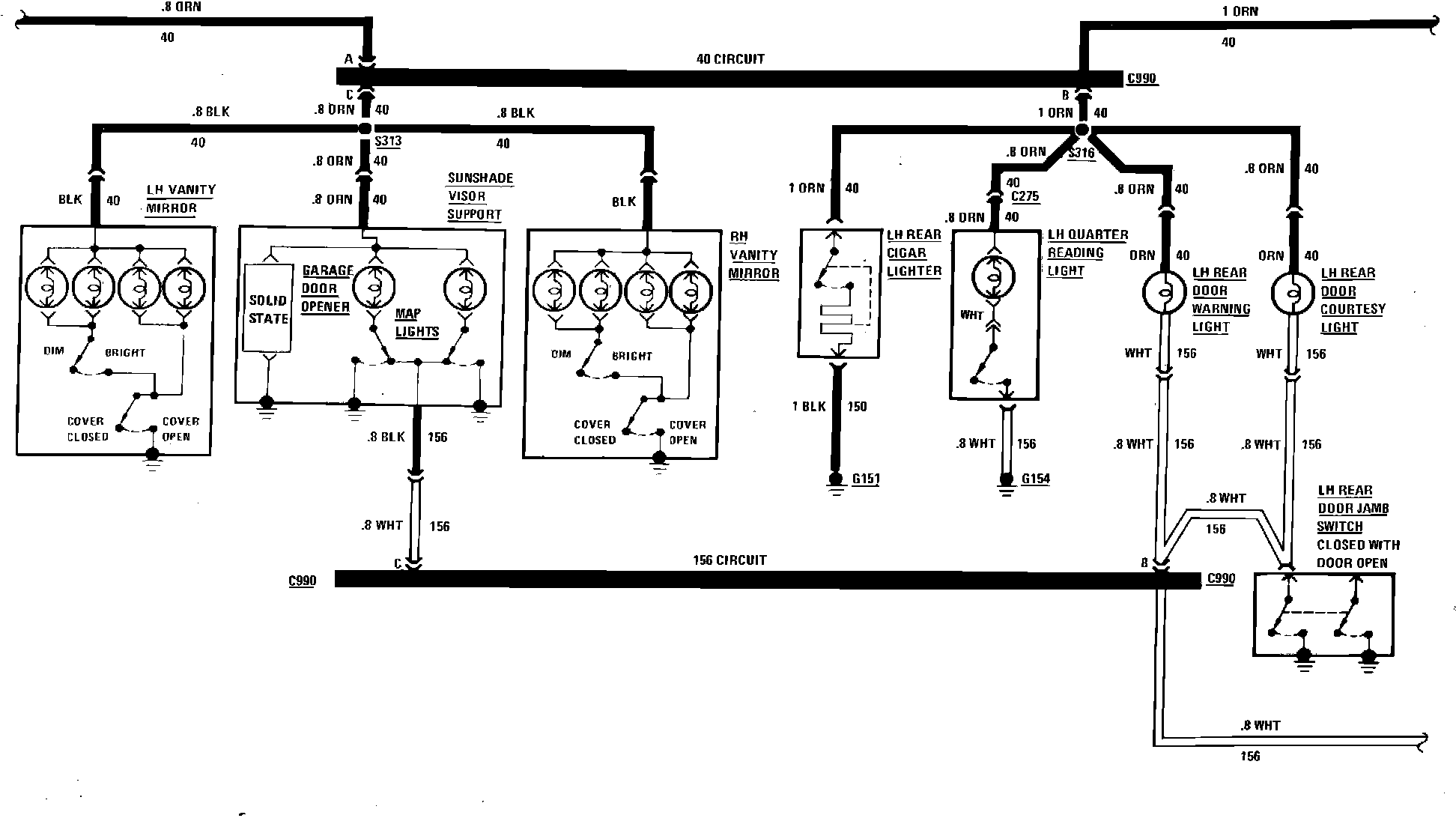

Cigar Lighter, Garage Door Opener & Interior Lighting Wiring Circuit:
