Electrical Diagrams

Cornering, Front Marker & Front Park Lighting Wiring Circuit:

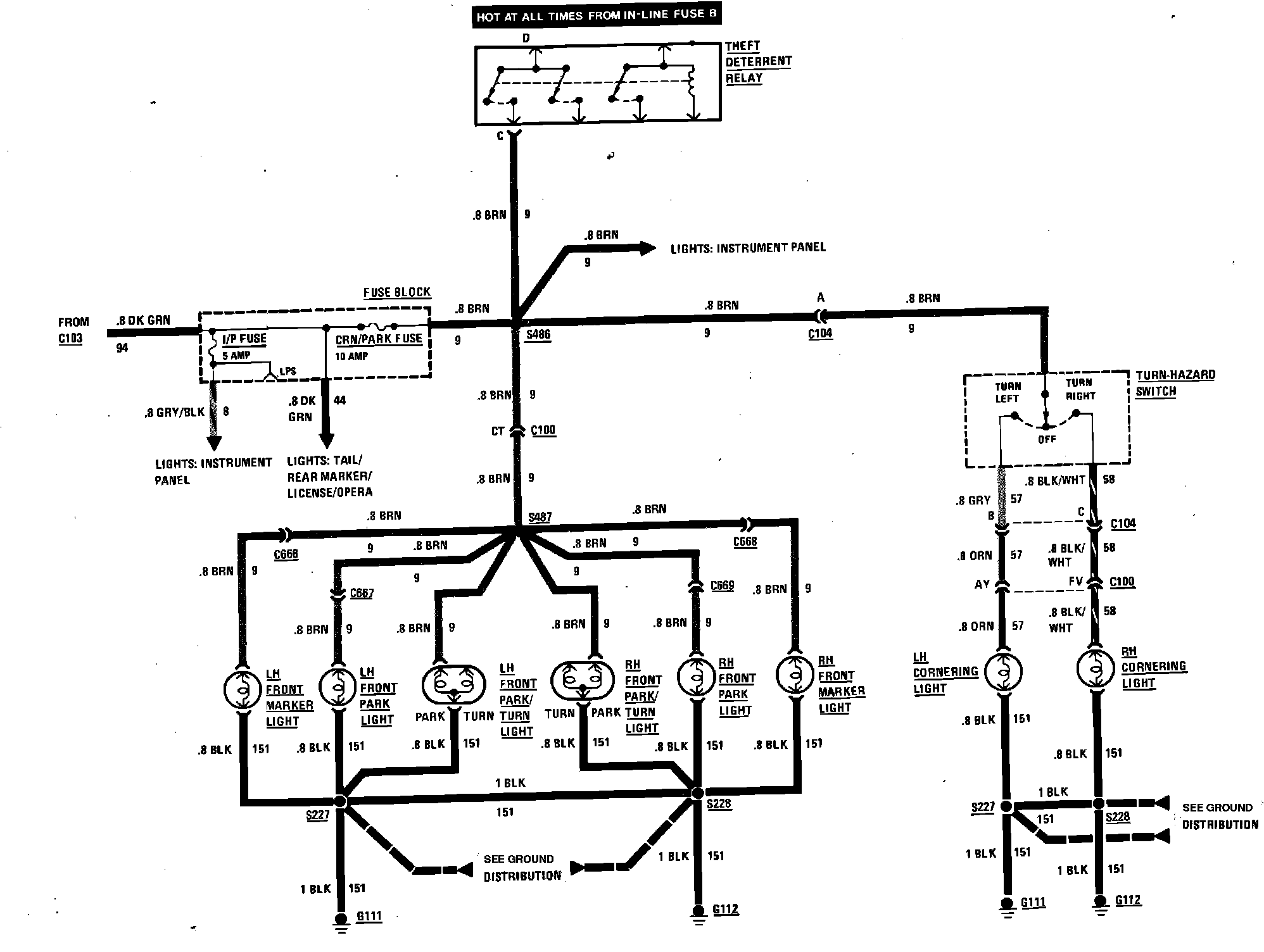

Cornering, Front Marker & Front Park Lighting Wiring Circuit:
