Cadillac
>>
1983
>>
Seville V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Suspension Control ( Automatic - Electronic )
Suspension Control ( Automatic - Electronic )

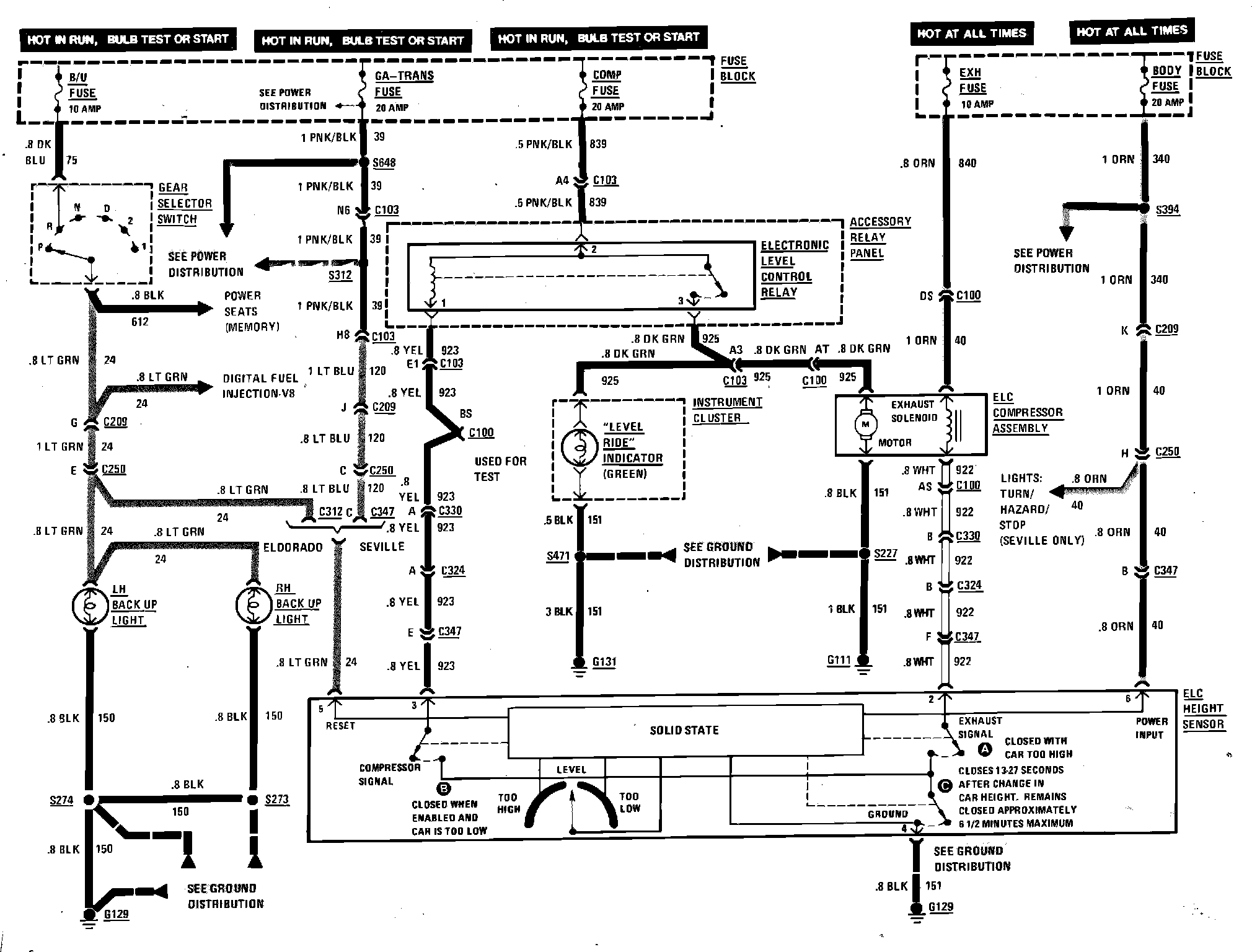

Back-Up Lights & Electronic Level Control Wiring Circuit:
