Cadillac
>>
1983
>>
Seville V8-252 4.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Panel Circuit Board
Instrument Panel Circuit Board

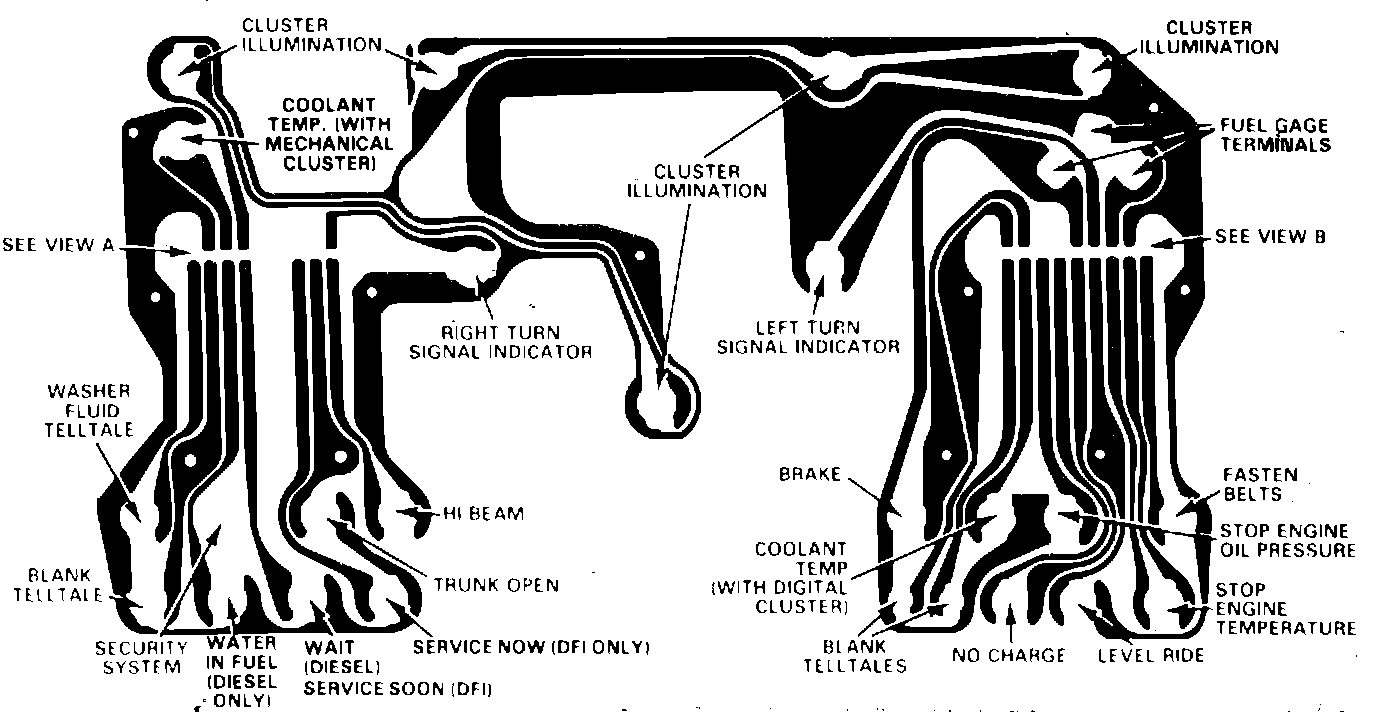

Instrument Panel Printed Circuit:
