Cadillac
>>
1983
>>
Eldorado V8-252 4.1L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

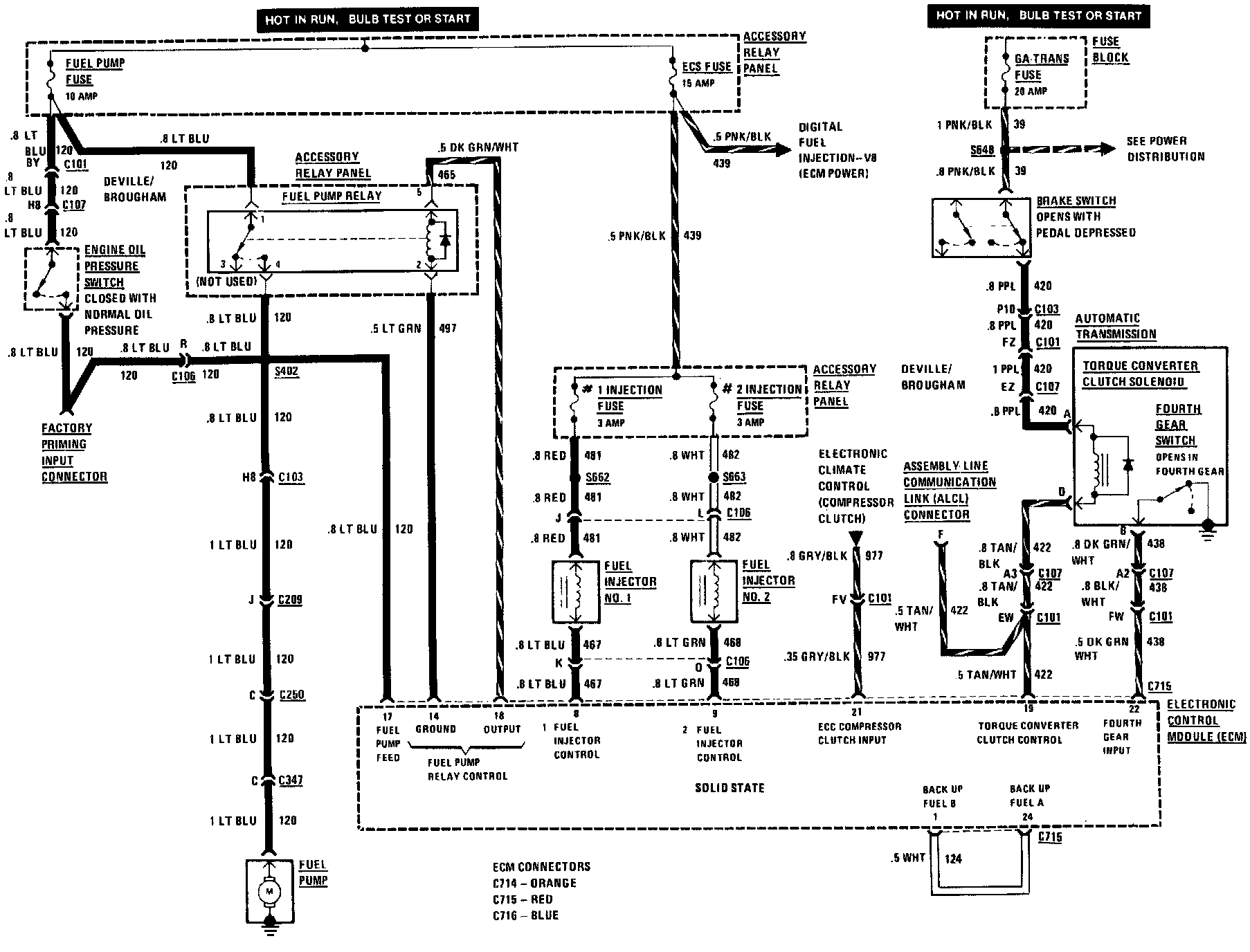

Fuel Control & Torque Converter Clutch (TCC)
Fuel Control & Torque Converter Clutch (TCC)
Wiring Diagram.:
