Cadillac
>>
1983
>>
Cimarron L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Map Light
Map Light

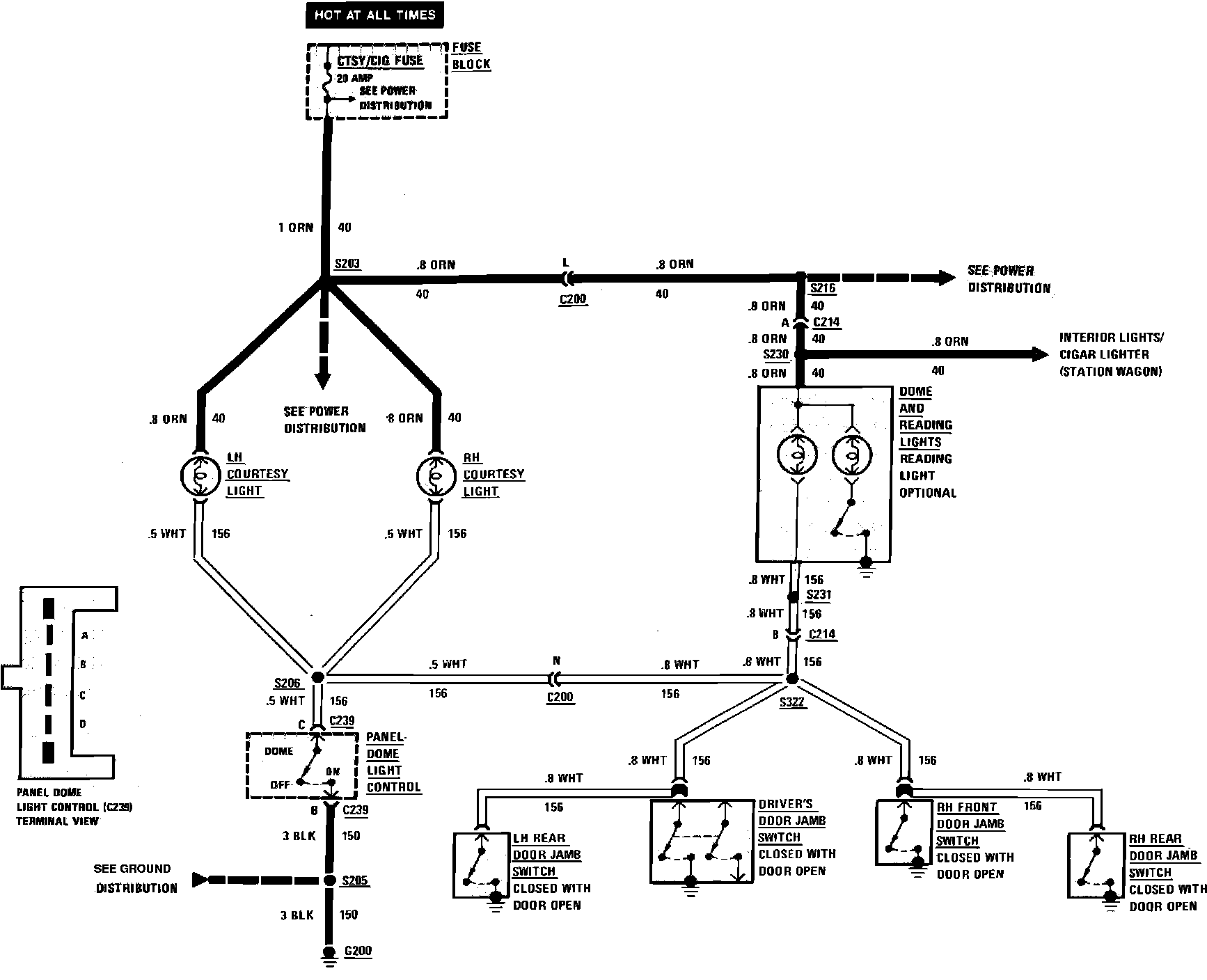

Interior Lighting Wiring Circuit (Courtesy/Dome):
