Rear Compartment Fuse Block

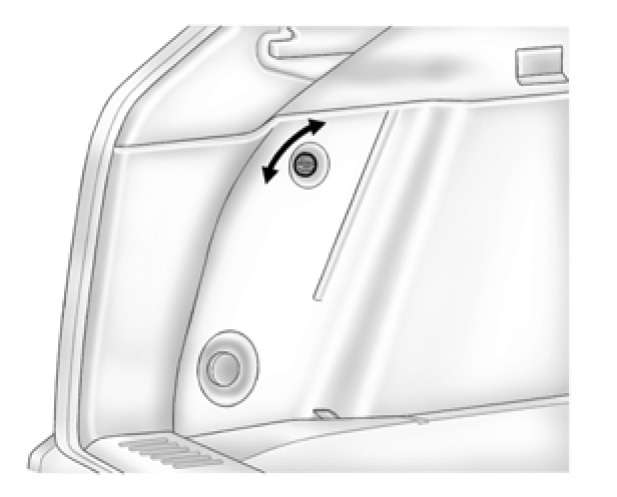

The rear compartment fuse block is located in the cargo area, on the driver side of the vehicle behind the lower trim panel. To open, turn the latch with a flat bladed tool and pull the trim panel from the edges to fold it down.

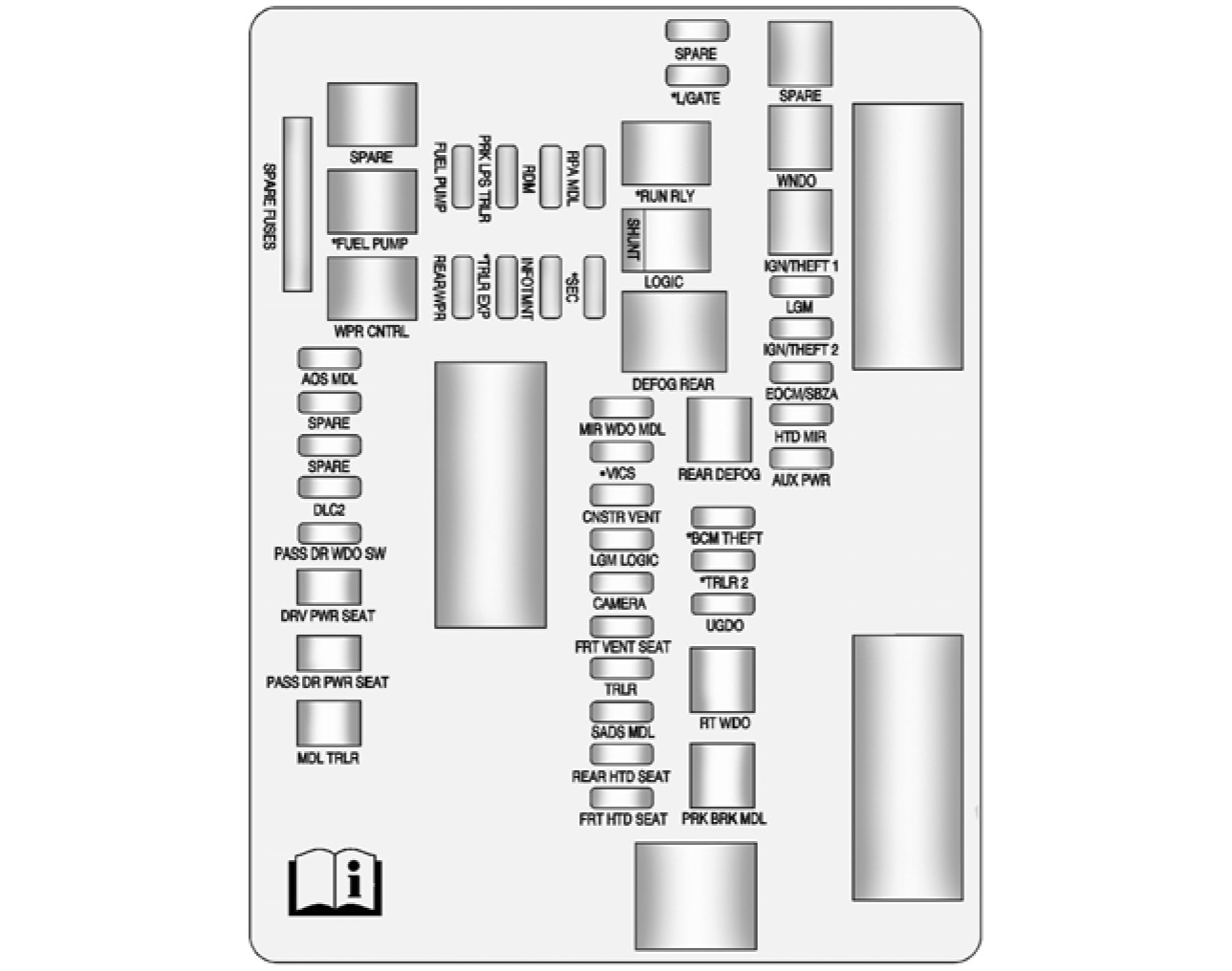

The vehicle may not be equipped with all of the fuses, relays, and features shown.






Fuses Usage
SPARE FUSES Spare Fuses
AOS MDL Automatic Occupant Sensing Module
SPARE Not Used
SPARE Not Used
DLC2 Data Link Connector 2
PASS DR WDO SW Passenger Door Window Switch
DRV PWR SEAT Driver Power Seat
PASS DR PWR SEAT Passenger/Driver Power Seats
MDL TRLR Trailer Module
RPA MDL Rear Parking Assist Module
RDM Rear Drive Module
PRK LPS TRLR Trailer Park Lamps
FUEL PUMP Fuel Pump
* SEC Security
INFOTMNT Infotainment
* TRLR EXP Trailer Export
REAR/WPR Rear Wiper
MIR WDO MDL Mirror Window Module
VICS Vehicle Information Communications System (Export)
CNSTR VENT Canister Vent
LGM LOGIC Liftgate Module Logic
CAMERA Rear Vision Camera
FRT VENT SEAT Front Ventilated Seats
TRLR Trailer Module
SADS MDL Semi Active Damping System Module
REAR HTD SEAT Rear Heated Seats
FRT HTD SEAT Front Heated Seats
SPARE Spare
* L/GATE Liftgate
SHUNT Shunt
REAR DEFOG Rear Defog
* BCM THEFT Body Control Module Theft
* TRLR 2 Trailer 2
UGDO Universal Garage Door Opener
RT WDO Right Window
PRK BRK MDL Park Brake Module
SPARE Not Used
WNDO Power Window
IGN/THEFT 1 Ignition/Theft 1
LGM Liftgate Module
IGN/THEFT 2 Ignition/Theft 2
EOCM/SBZA External Object Calculating Module/Side Blind Zone Alert
HTD MIR Heated Mirror
AUX PWR Auxiliary Power Outlet

Relays Usage
SPARE Not Used
* FUEL PUMP Fuel Pump
WPR CONTRL Wiper Control
* RUN RLY Run Relay
LOGIC Logistic Relay (Export)
DEFOG REAR Rear Window Defogger


* = Denotes uplevel content.
