Instrument Panel Fuse Block - Owners Manual

Instrument Panel Fuse Block

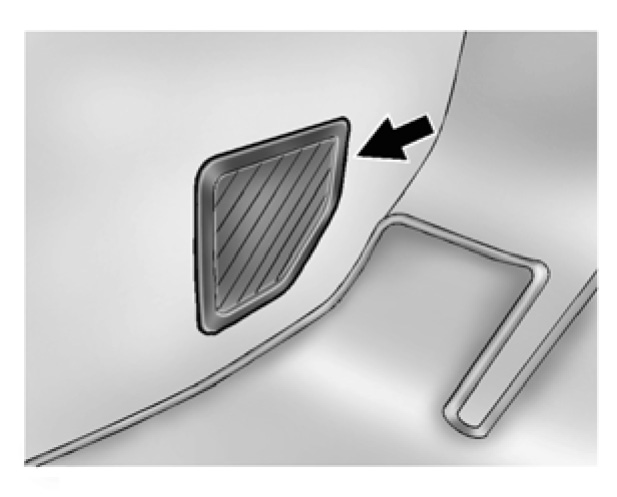

The instrument panel fuse block is located in the center console between the driver and passenger seats. To access the fuses, open the fuse panel door from the passenger side by pulling it out.

To reinstall the door, push the door back into its original location.

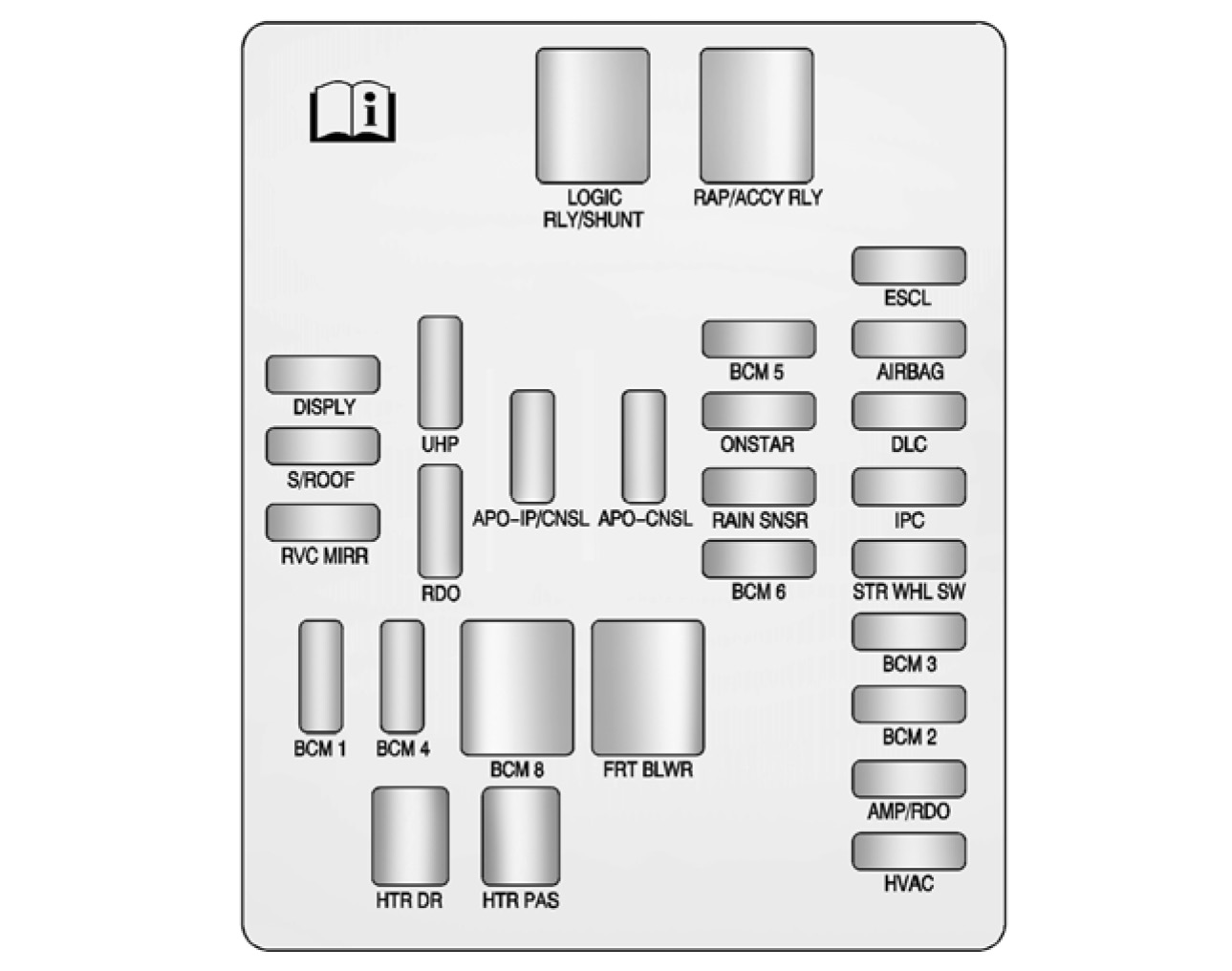

The vehicle may not be equipped with all of the fuses, relays and features shown.






Mini Fuses Usage
DISPLY Display
S/ROOF Sunroof
RVC MIRR Rear Vision Camera Mirror
UHP Universal Handsfree Phone
RDO Radio
APO - IP/CNSL Auxiliary Power Outlet - Instrument Panel/Console
APO - CNSL Auxiliary Power Outlet - Floor Console
BCM 1 Body Control Module 3
BCM 4 Body Control Module 4
BCM 5 Body Control Module 5
ONSTAR OnStar System (If Equipped)
RAIN SNSR Rain Sensor
BCM 6 Body Control Module 6
ESCL Electronic Steering Column Lock
AIRBAG Sensing and Diagnostic Module
DLC Data Link Connector
IPC Instrument Cluster
STR WHL SW Steering Wheel Switch
BCM 3 Body Control Module 1
BCM 2 Body Control Module 2
AMP/RDO Amplifier/Radio
HVAC Heating Ventilation & Air Conditioning

J-Case Fuses Usage
BCM 8 Body Control Module 8
FRT BLWR Front Blower

Relays Usage
LOGIC RLY/SHUNT Logistics Relay/Shunt
RAP/ACCY RLY Retained Accessory Power/Accessory Relay

Breakers Usage
HTR DR Heated Driver Seat
HTR PAS Heated Passenger Seat
