Cadillac Truck
>>
2008
>>
SRX RWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tow Sensor, Antitheft
Tow Sensor, Antitheft
Component Connector End Views

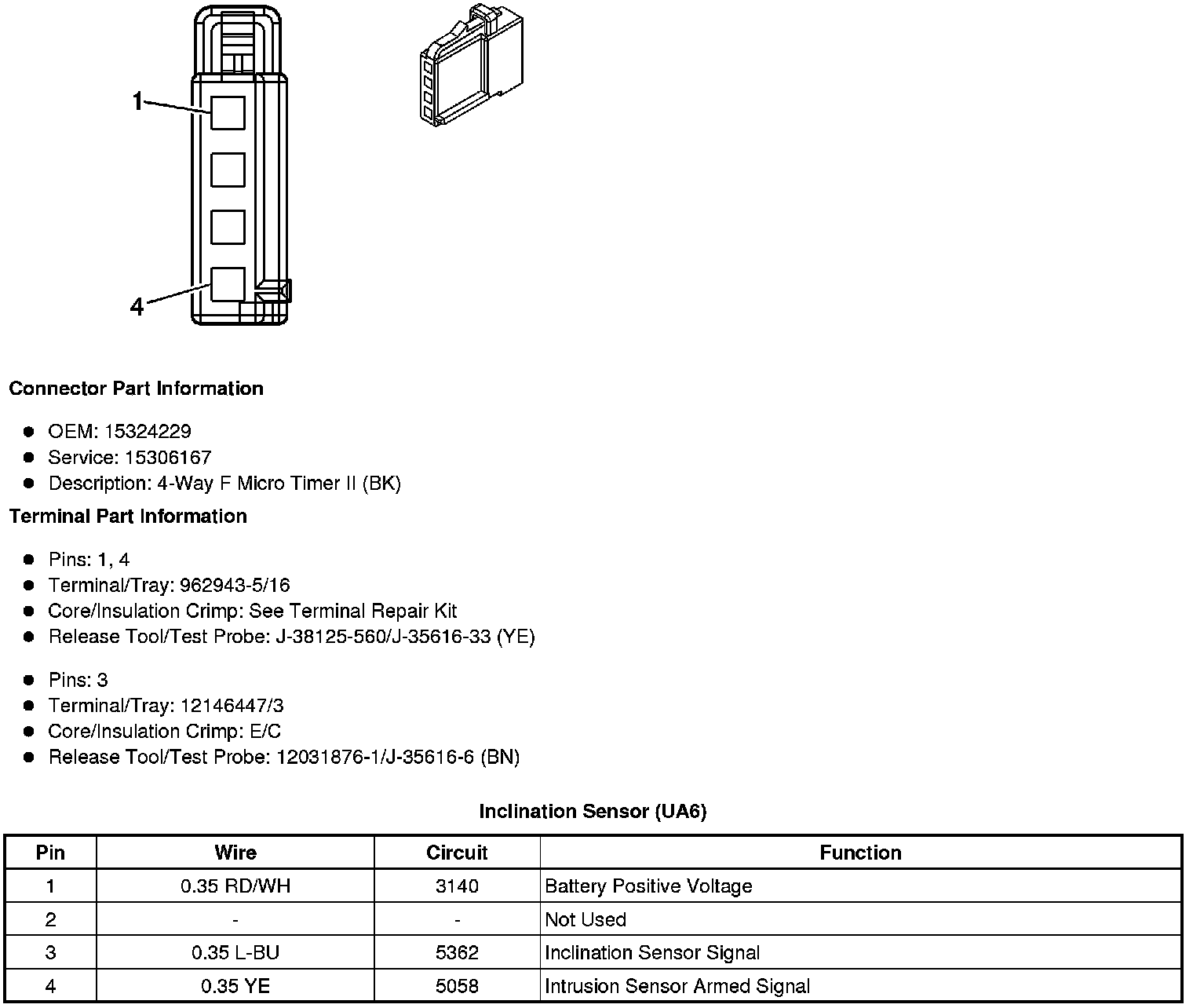

Inclination Sensor (UA6)
