Cadillac Truck
>>
2008
>>
SRX AWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate Switch
Trunk / Liftgate Switch
Component Connector End Views

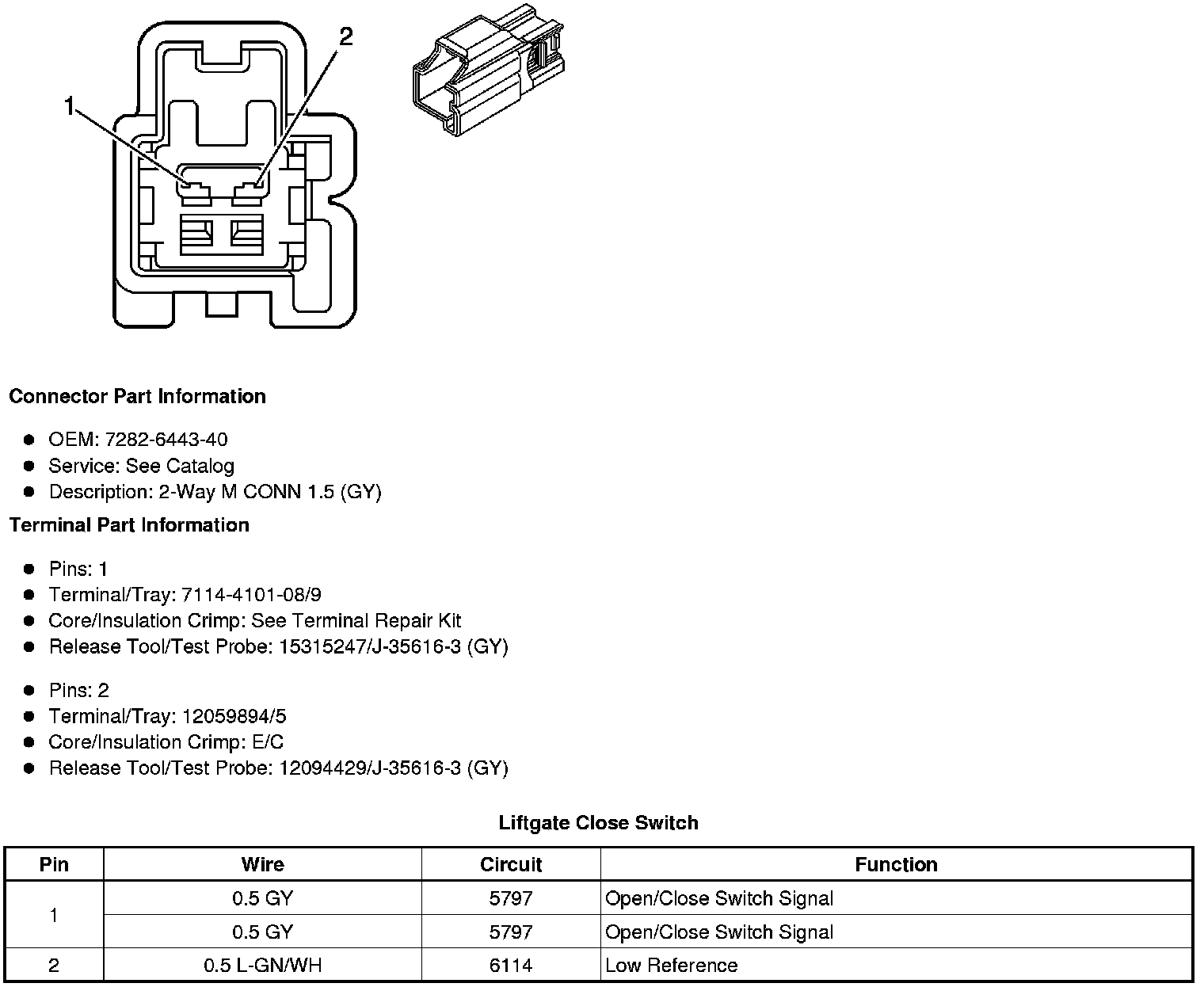

Liftgate Close Switch

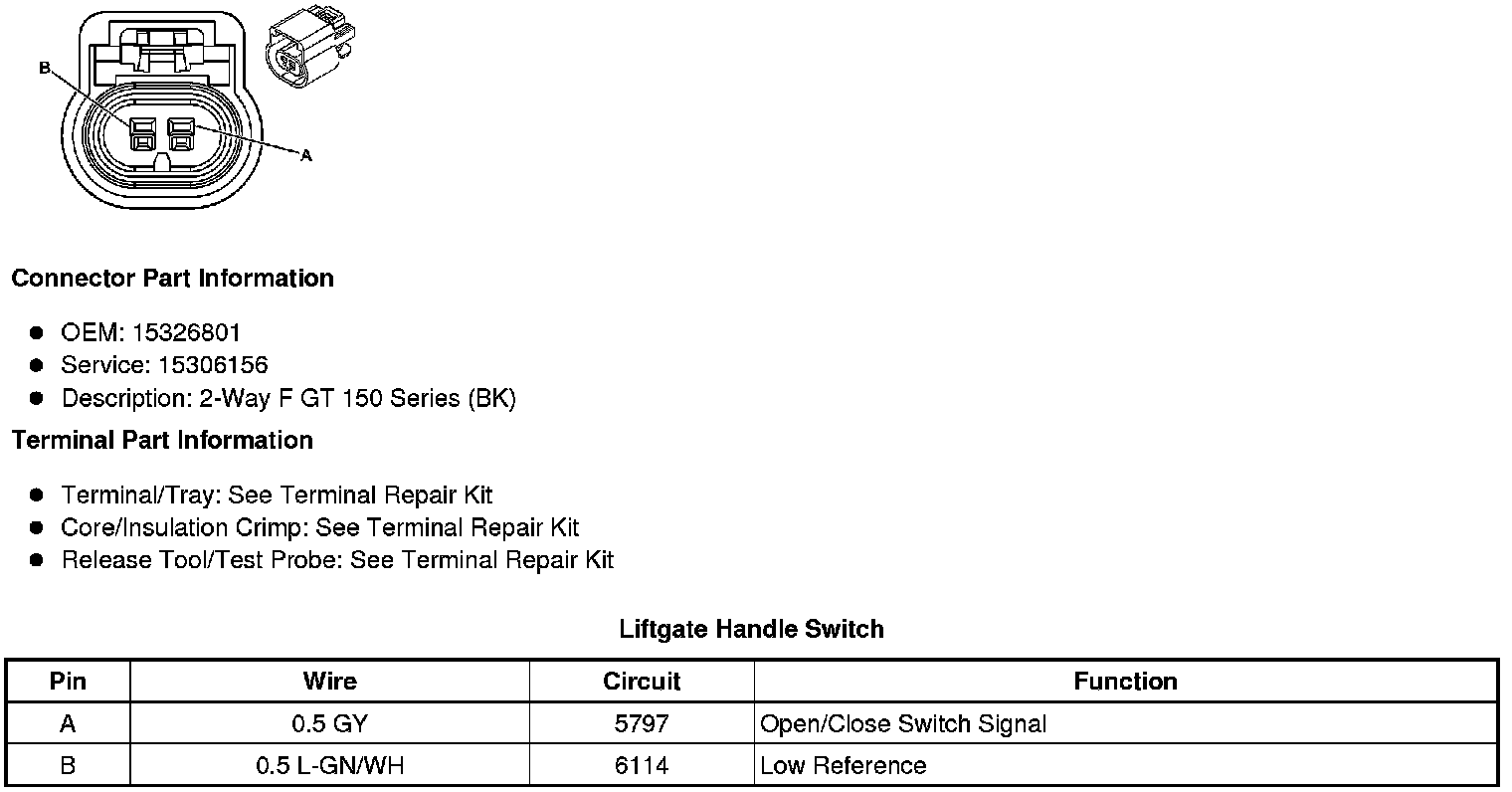

Liftgate Handle Switch
