Home
>>
Cadillac Truck
>>
2008
>>
SRX AWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone
>>
Cellular Phone Microphone
Cellular Phone Microphone

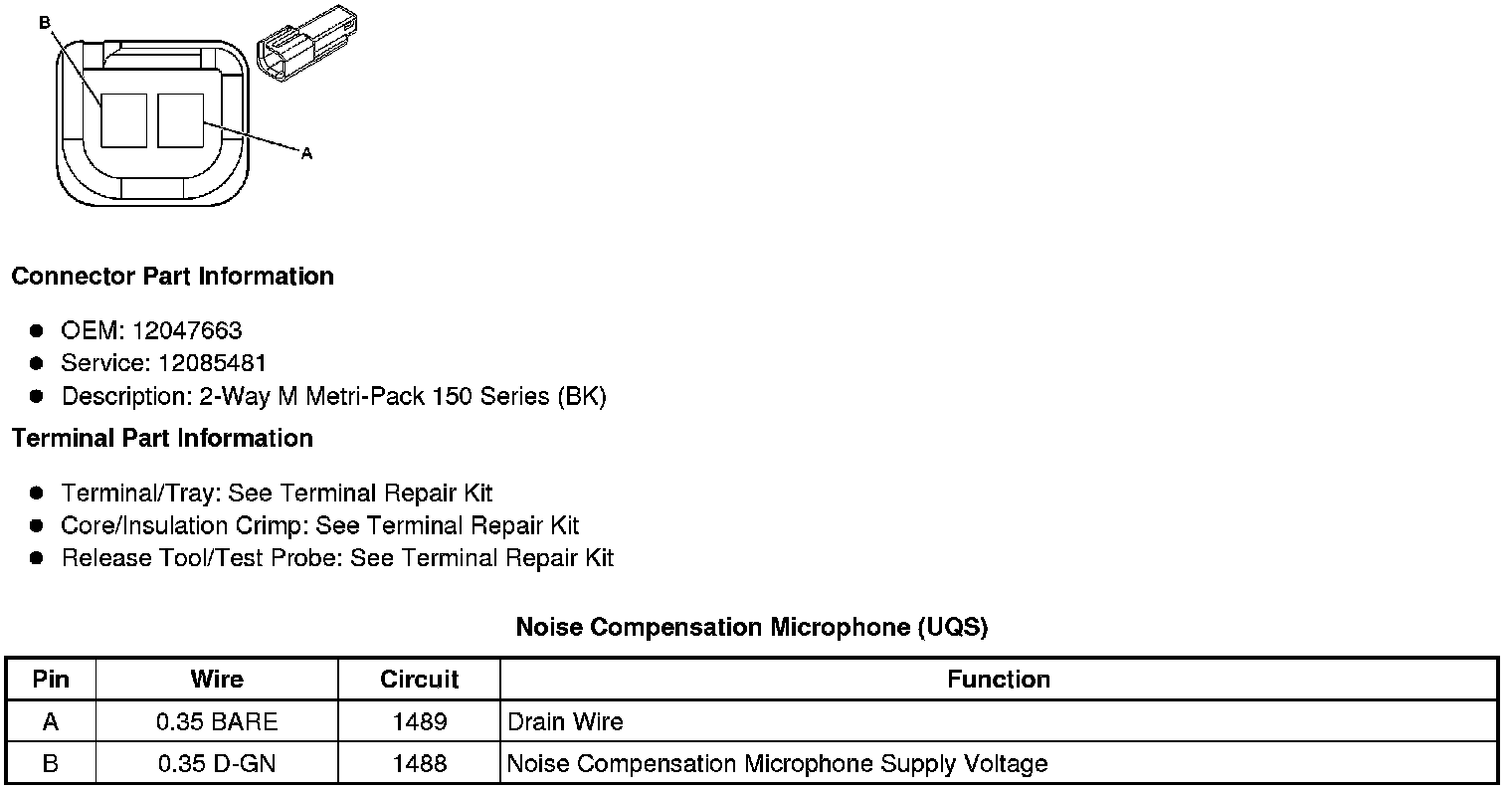

Component Connector End Views
Noise Compensation Microphone (UQS)
