Cadillac Truck
>>
2008
>>
SRX AWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antenna
Antenna
Component Connector End Views

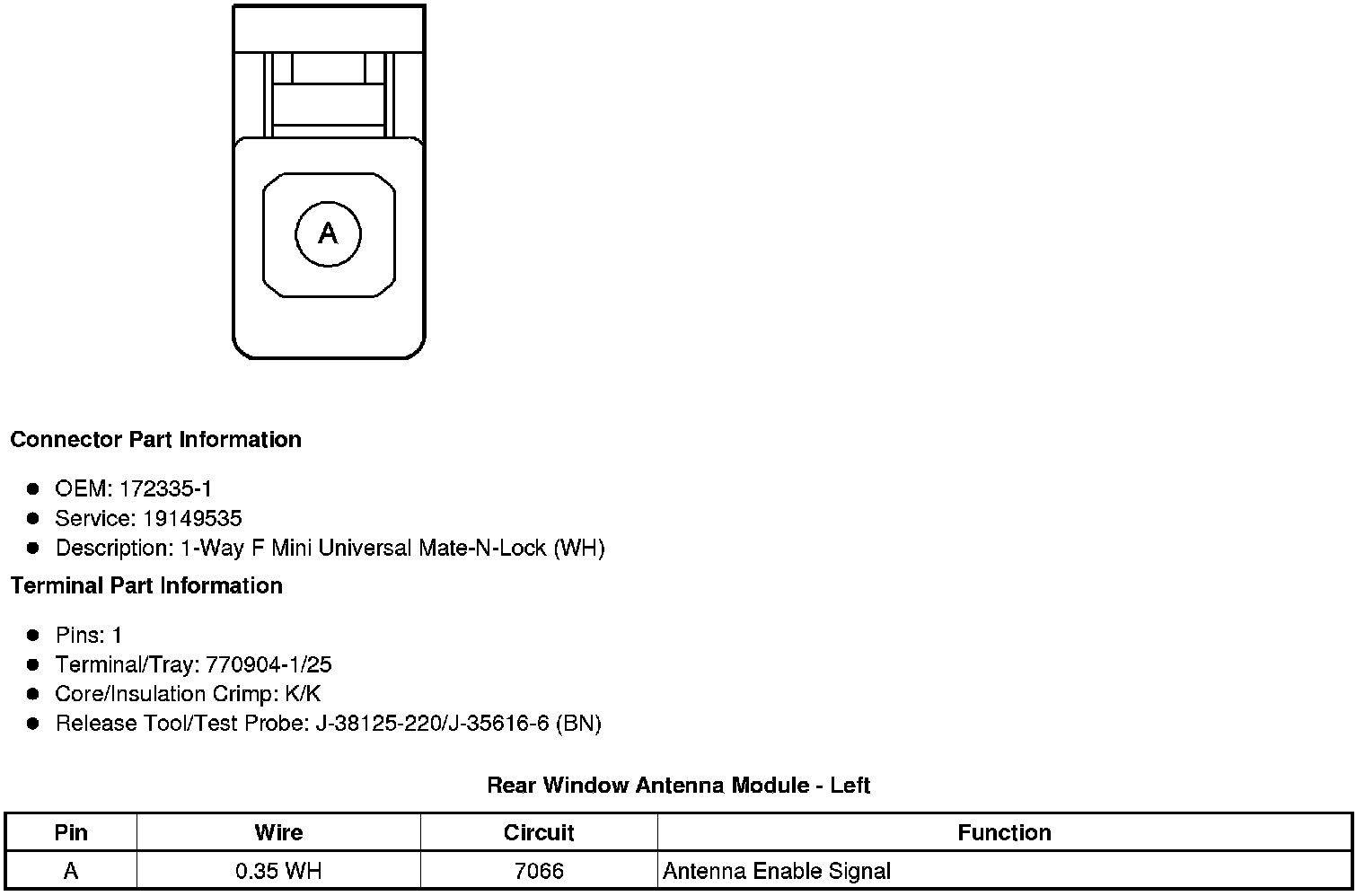

Rear Window Antenna Module - Left

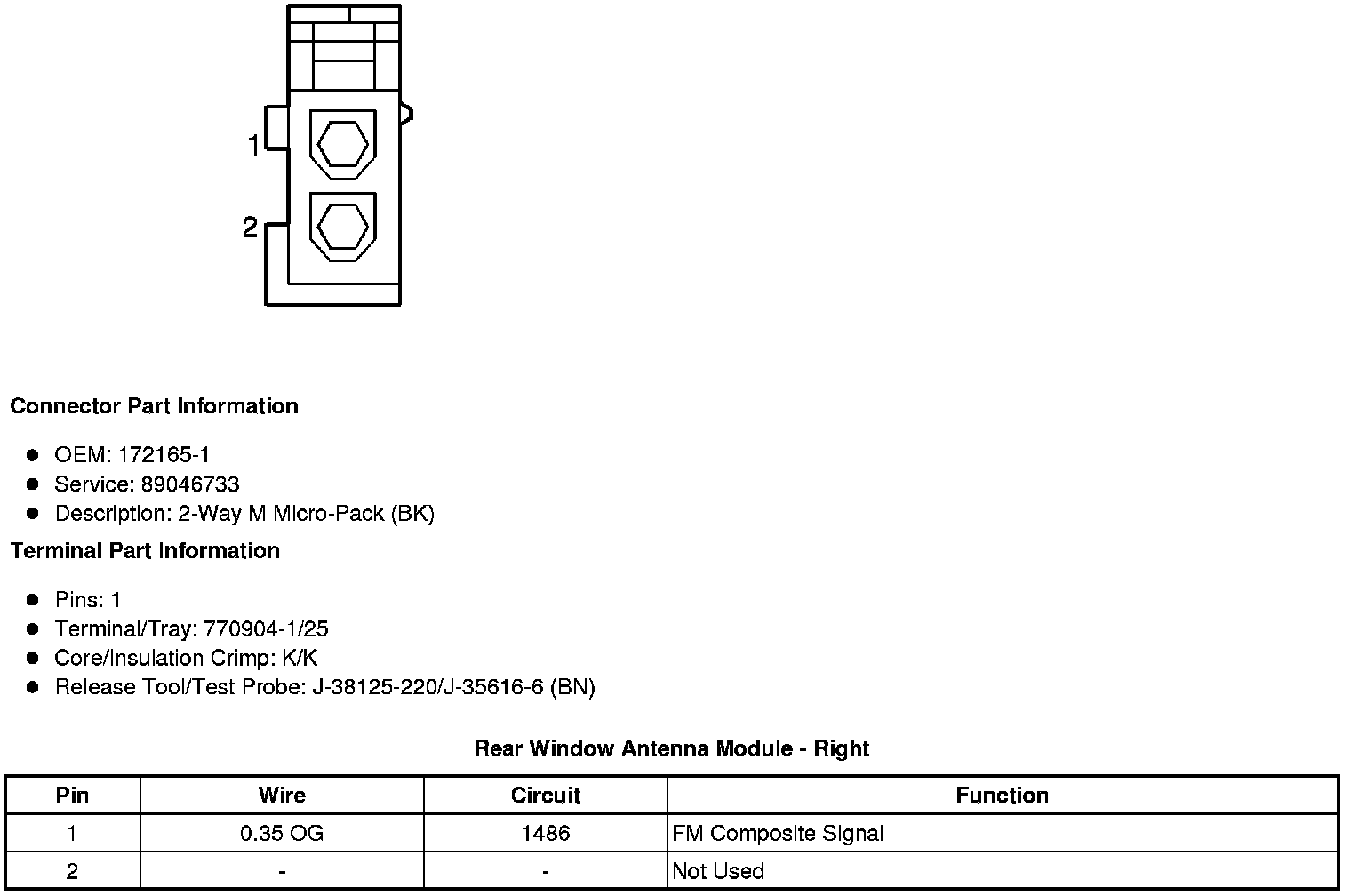

Rear Window Antenna Module - Right
