Cadillac Truck
>>
2008
>>
SRX AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X400 - X499
>>
X408
X408

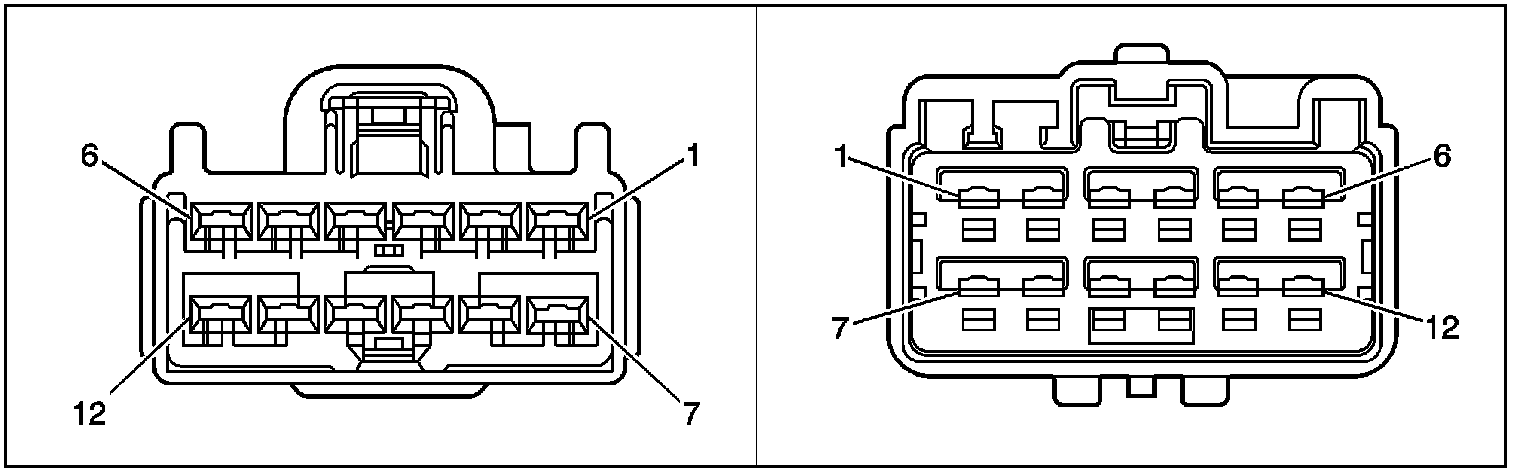

Inline Harness Connector End Views

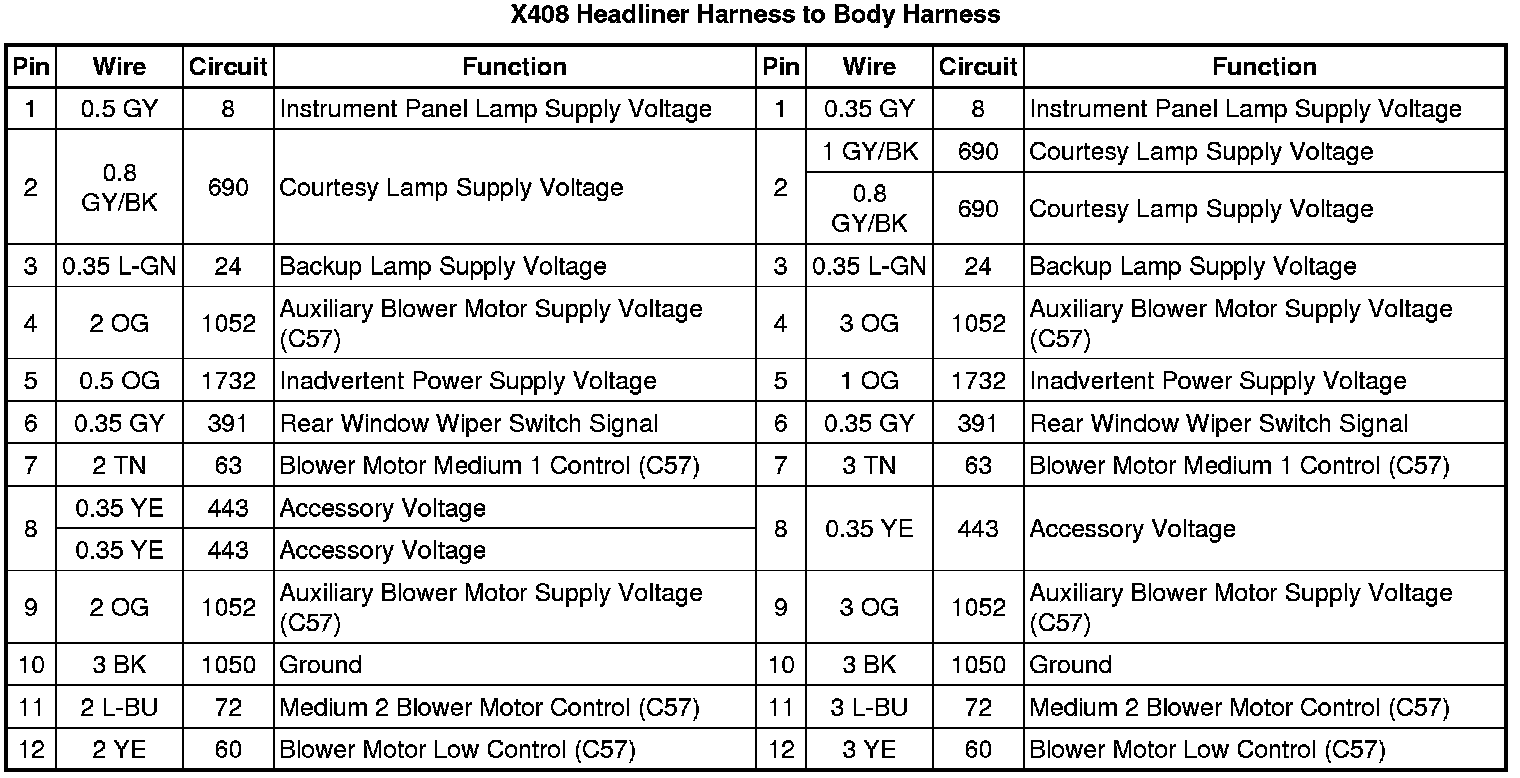

X408 Headliner Harness to Body Harness
