Cadillac Truck
>>
2008
>>
SRX AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X300 - X399
>>
X306
X306

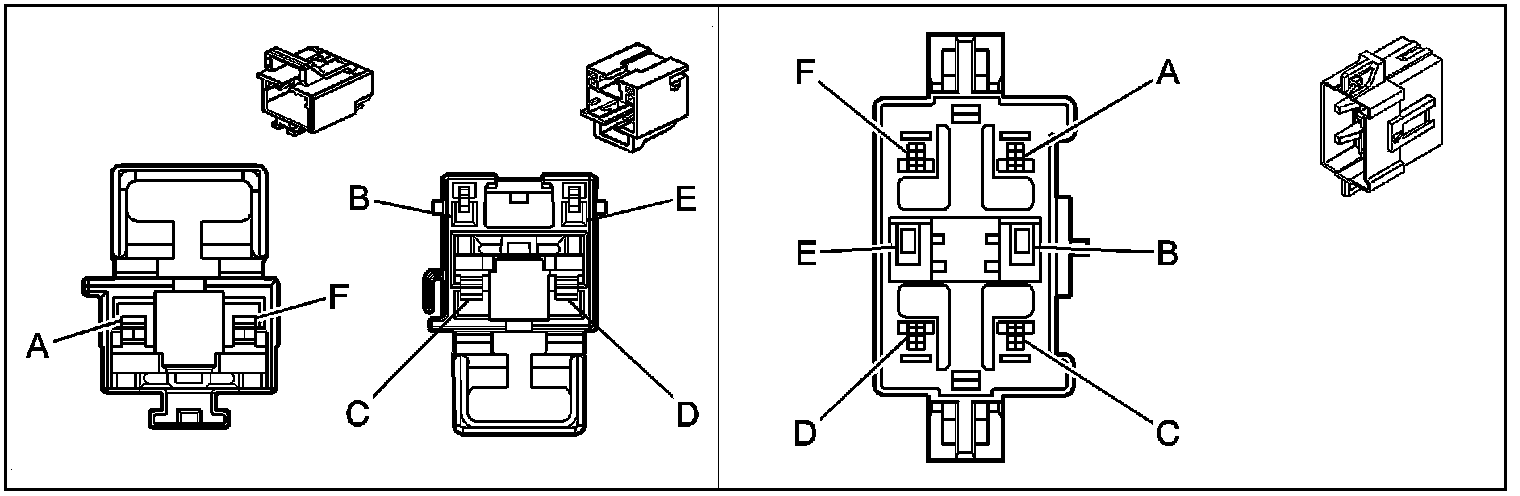

Inline Harness Connector End Views

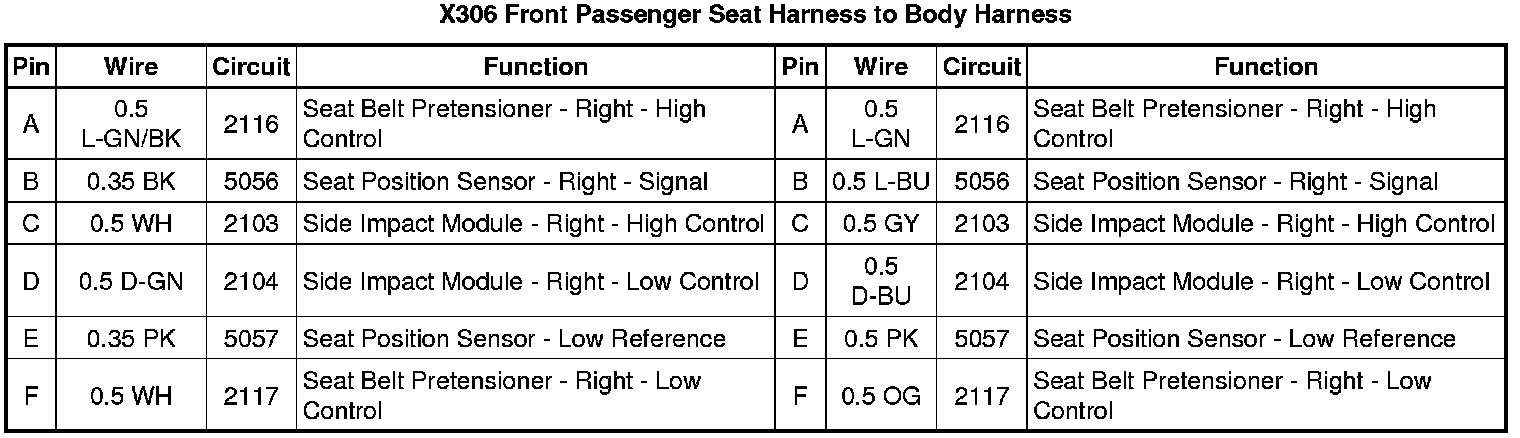

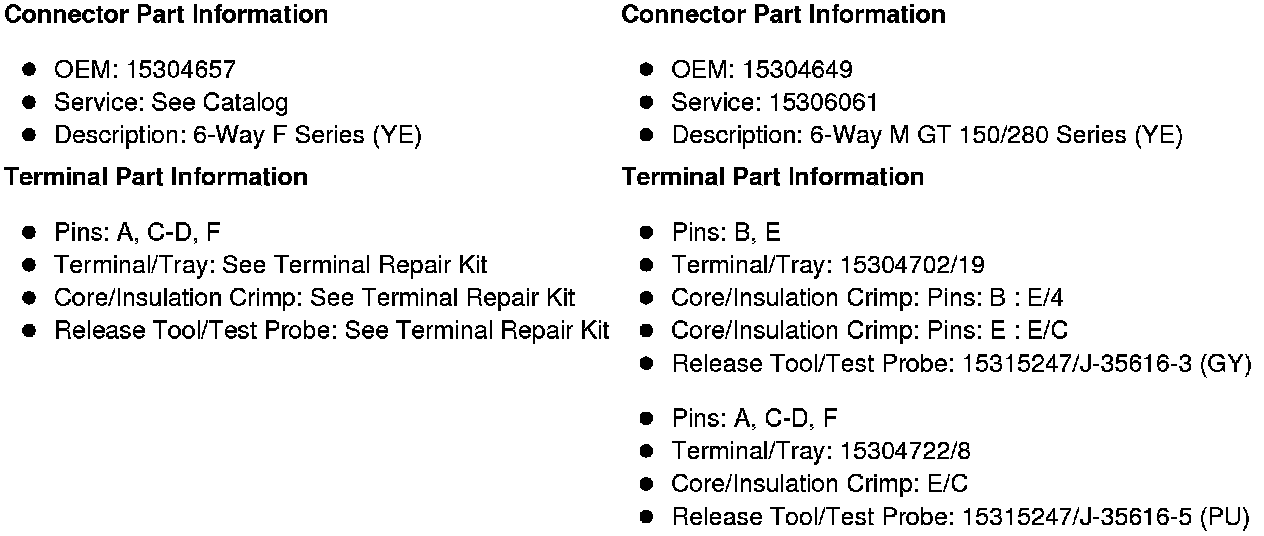

X306 Front Passenger Seat Harness to Body Harness
