X215
X215

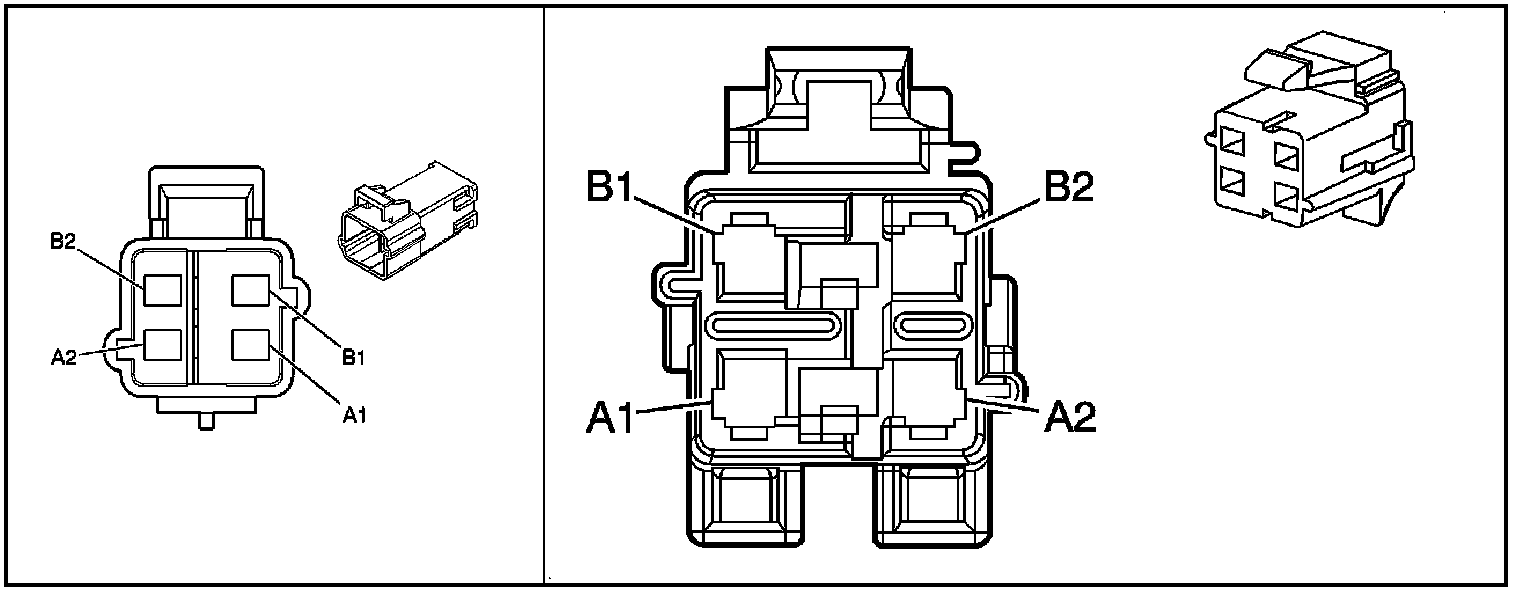

Inline Harness Connector End Views

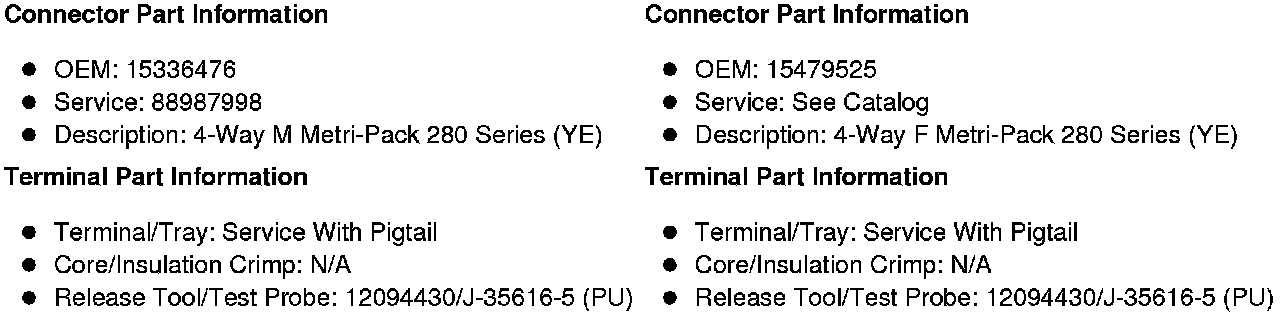

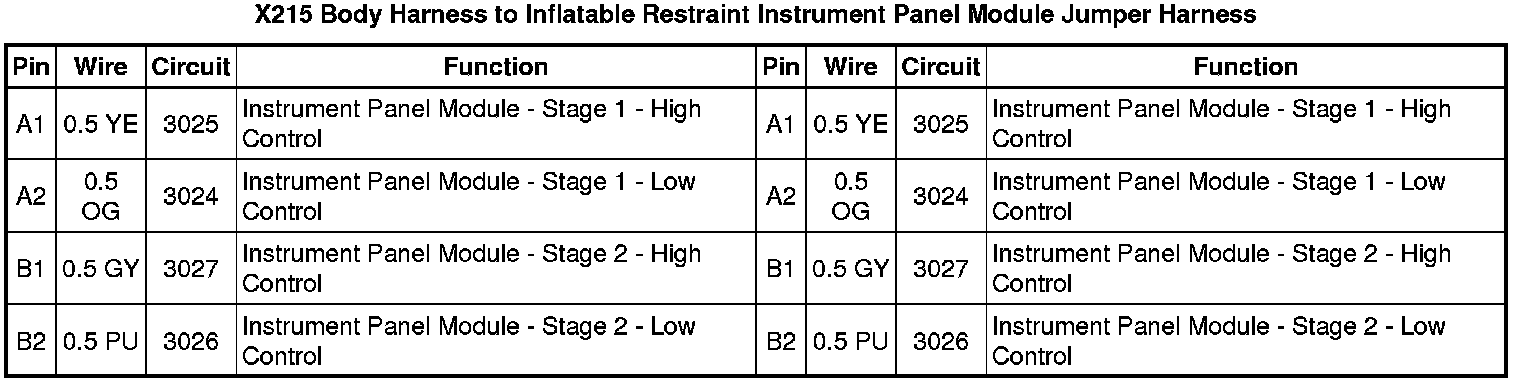

X215 Body Harness to Inflatable Restraint Instrument Panel Module Jumper Harness
