Cadillac Truck
>>
2008
>>
SRX AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Deactivation Indicator
Air Bag Deactivation Indicator

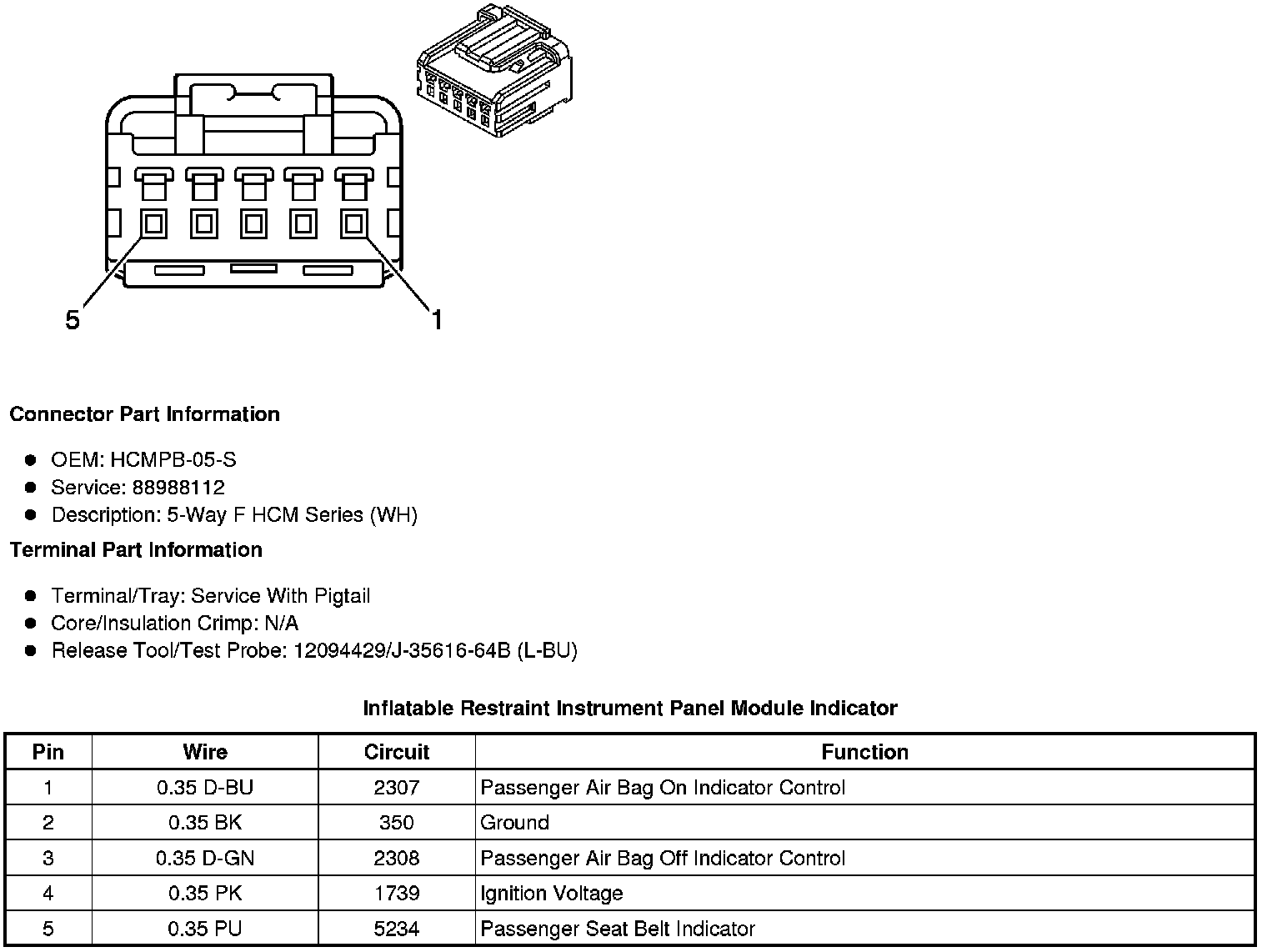

Component Connector End Views
Inflatable Restraint Instrument Panel Module Indicator
