Hood Open Assist Rod Stud Replacement

Hood Open Assist Rod Stud Replacement

Removal Procedure

1. Open and support the hood.




2. Remove the assist rod. Refer to Hood Open Assist Rod Replacement (Service and Repair) .

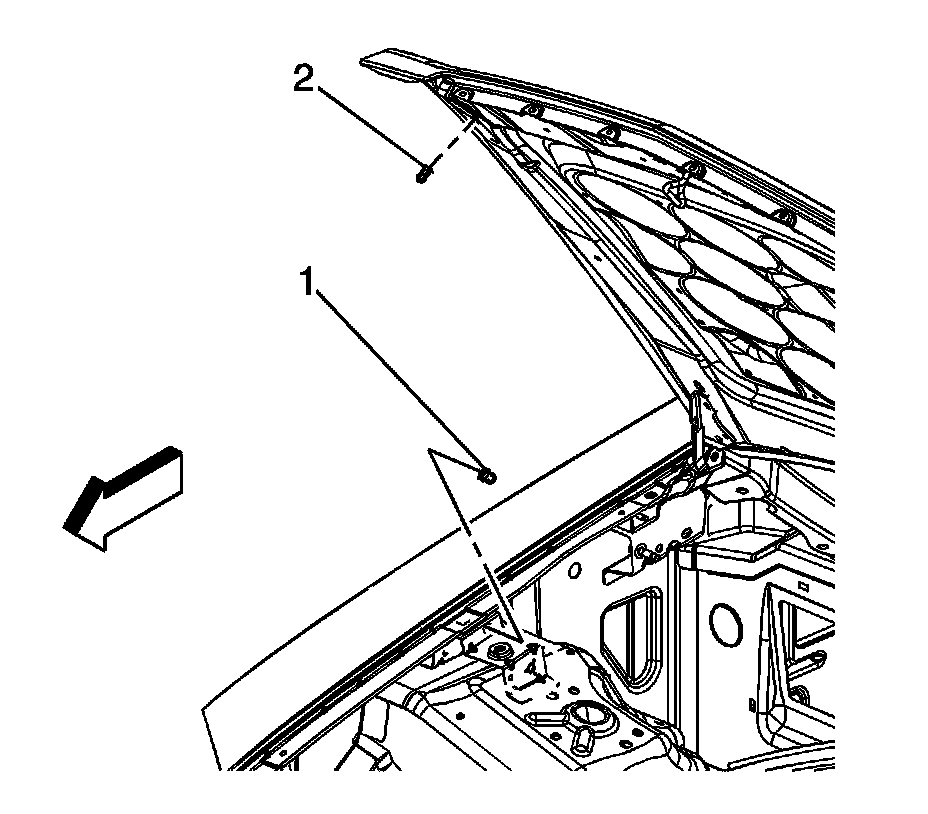

3. Remove the lower hood assist rod ball stud (1) from the fender.
4. Remove the upper hood assist rod ball stud (2) from the hood.



Installation Procedure






Notice: Refer to Fastener Notice (Fastener Notice) .

1. Install the upper assist rod ball stud (2) to the hood.


Tighten the upper hood assist rod ball stud (2) to 9 N.m (80 lb in).

2. Install lower ball stud (1) to the fender.


Tighten the lower hood assist rod ball stud (1) to 9 N.m (80 lb in).

3. Install assist rod. Refer to Hood Open Assist Rod Replacement (Service and Repair) .
