Cadillac Truck
>>
2008
>>
Escalade ESV AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Main Relay
Suspension Main Relay

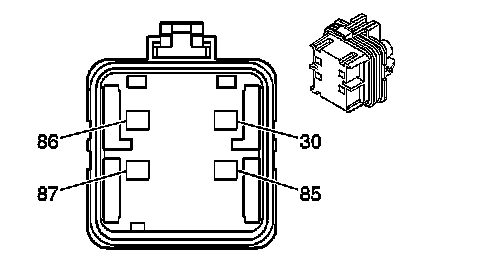

Component Connector End Views

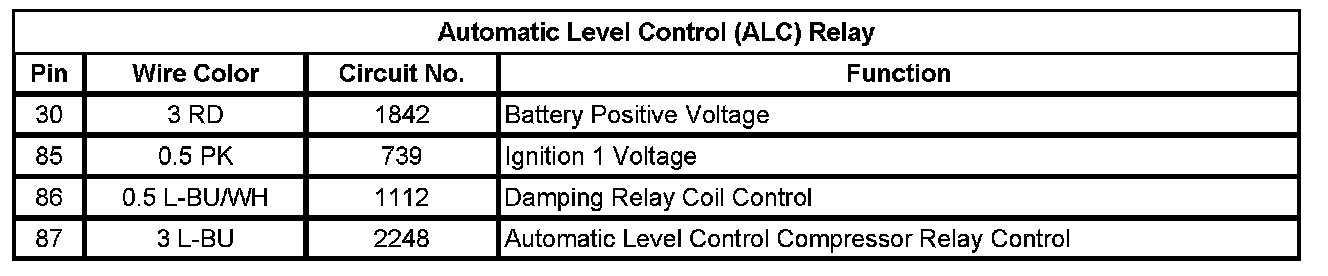

Automatic Level Control (ALC) Relay
