Cadillac Truck
>>
2008
>>
Escalade ESV AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Clock
Clock

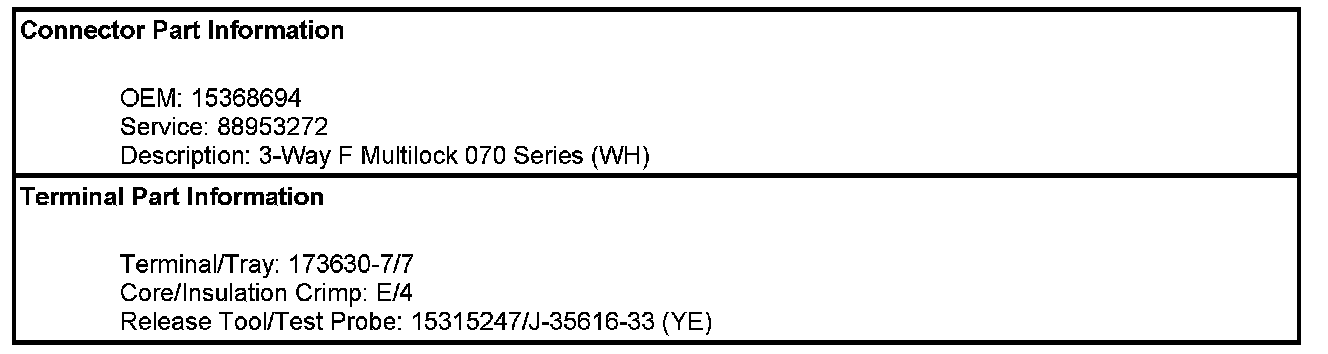

Component Connector End Views

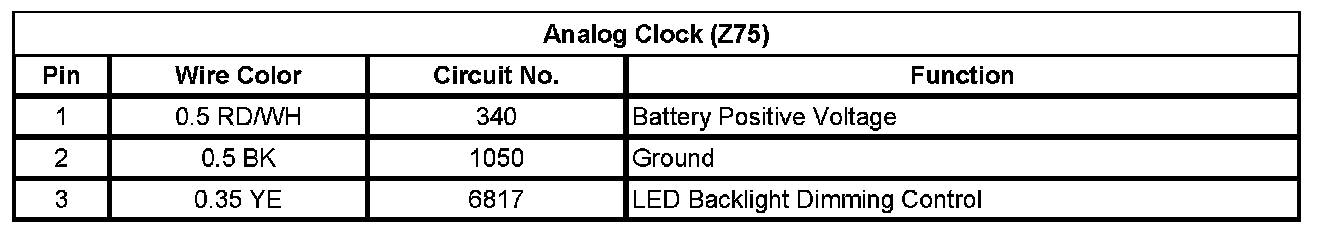

Analog Clock (Z75)
