Cadillac Truck
>>
2008
>>
Escalade ESV AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Auxiliary Step / Running Board
>>
System Diagram
System Diagram

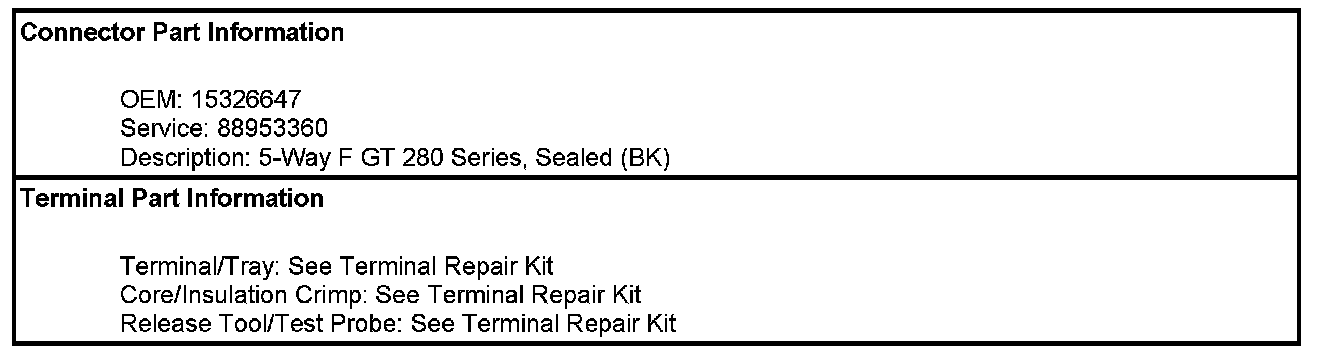

Component Connector End Views - Continued

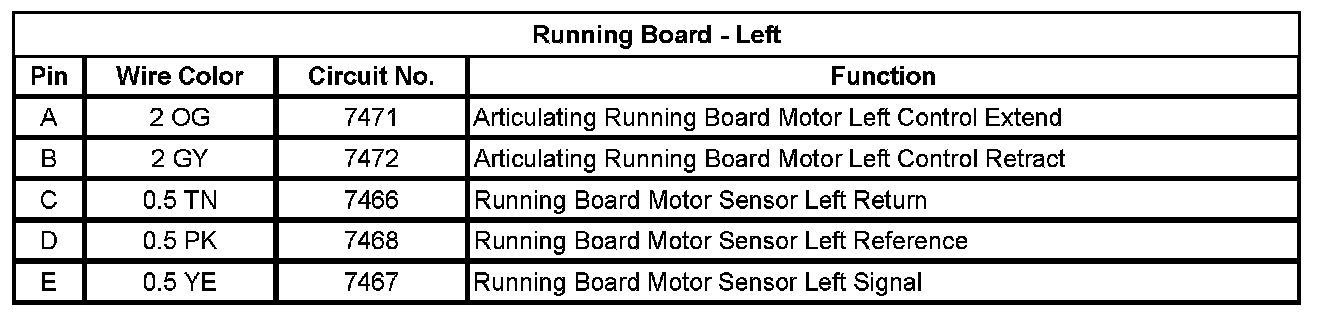

Running Board - Left
Running Board - Right
