Cadillac Truck
>>
2008
>>
Escalade AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Steering
>>
System Diagram
System Diagram

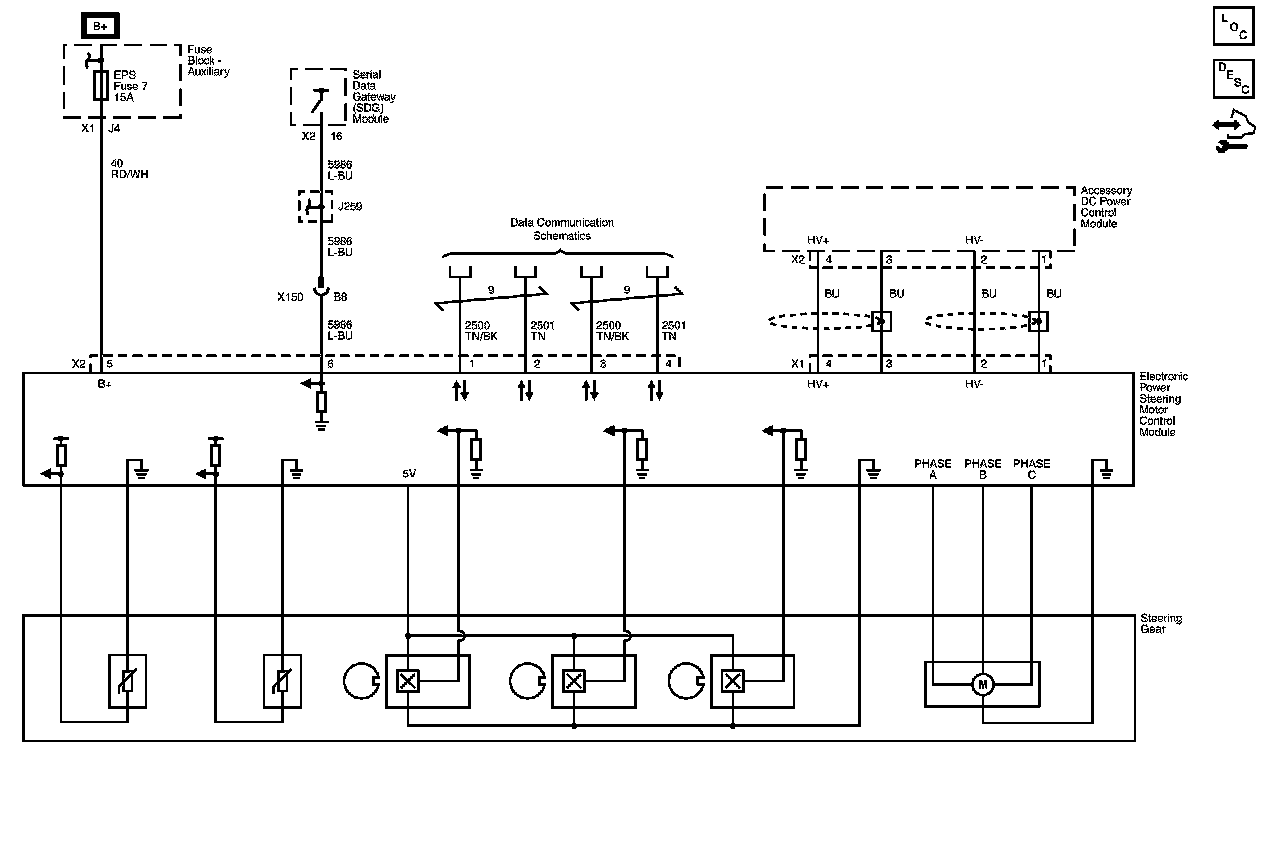

Power Steering
Schematics
Hybrid
Power Steering
System
