Cadillac Truck
>>
2008
>>
Escalade AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tailgate
Tailgate

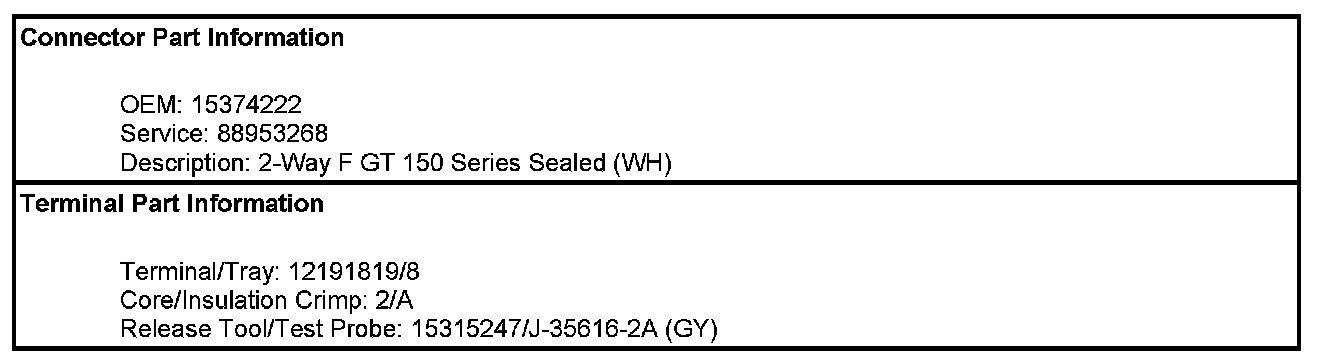

Component Connector End Views

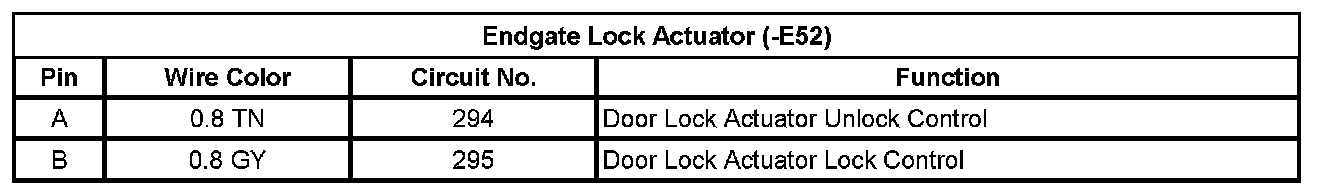

Endgate Lock Actuator (-E52)
